Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SCF47X-200-S1R8B011JHIND CMC 3.21MH 20A 3.52MOHM |
3,325 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 3.21 mH @ 100 kHz | 20A | 3.52mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF47X-450-S2R3B006JHIND CMC 0.95MH 45A 1.16MOHM |
2,140 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 950 µH @ 100 kHz | 45A | 1.16mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF47X-300-S2R0B009JHIND CMC 2.15MH 30A 2.31MOHM |
3,238 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 2.15 mH @ 100 kHz | 30A | 2.31mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|

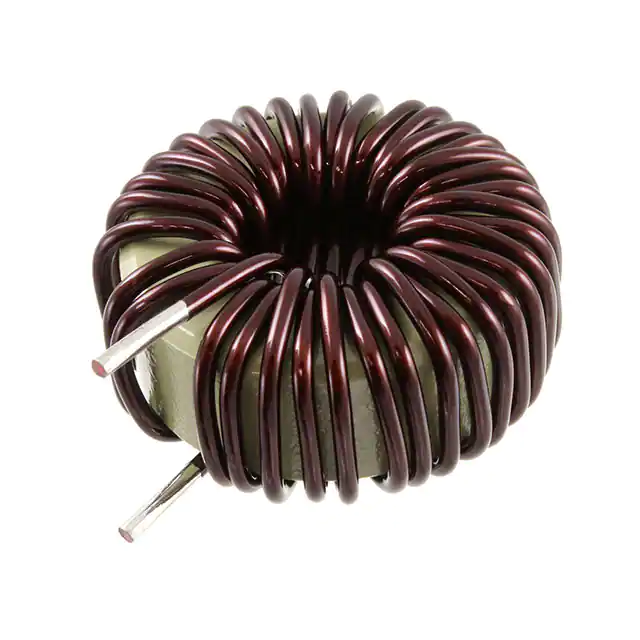

PHBC24W-2R4A0174VCMC 174UH 20A 2LN TH |
3,360 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 174 µH @ 100 kHz | 20A | 11.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCF56X-400-S2R4B009JHIND CMC 1.72MH 40A 1.84MOHM |
2,500 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 1.72 mH @ 100 kHz | 40A | 1.84mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
SU9H-02080CMC 8MH 200MA 2LN TH |
1,966 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 200mA | 6Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
SSR10H-22034CMC 3.4MH 2.2A 2LN TH |
1,406 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 3.4 mH @ 10 kHz | 2.2A | 110mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS21V-040520CMC 52MH 400MA 2LN TH |
4,302 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 52 mH @ 1 kHz | 400mA | 5.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN8S-300JACMC 26UH 2A 2LN TH |
4,050 | - |
|
Datasheet | Vertical, 2 PC Pin | Power Line | 2 | - | 26 µH @ 100 kHz | 2A | 42mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SSR21NH-08325CMC 32.5MH 800MA 2LN TH |
1,792 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 32.5 mH @ 10 kHz | 800mA | 470mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
