Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR19XV-220-1R6A004JVCMC 100UH 22A 2LN TH AEC-Q200 |
4,303 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 22A | 1.38mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

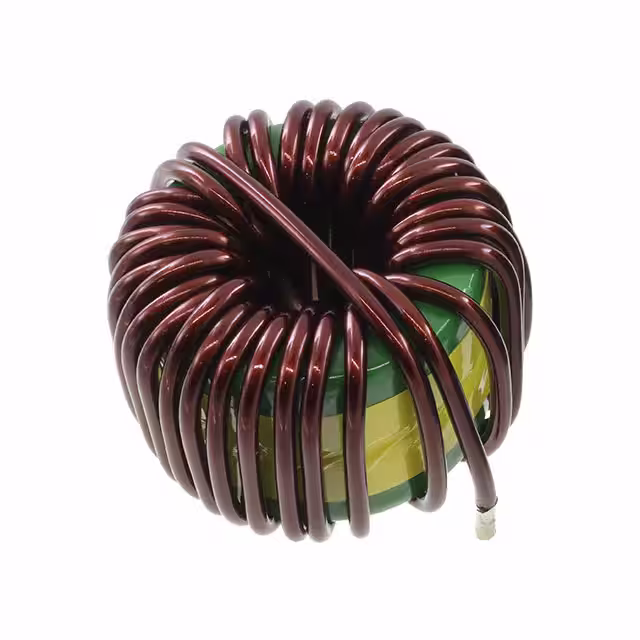

SN20P-120HNMC 120.0UH 20.0A 0.0180 OHM TH |
3,682 | - |
|
Datasheet | - | Power Line | 2 | - | 120 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SCT25XV-150-1R6A010JVCMC 800UH 15A 2LN TH AEC-Q200 |
4,337 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 800 µH @ 100 kHz | 15A | 4.62mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-130-1R5A012JVCMC 1.15MH 13A 2LN TH AEC-Q200 |
2,144 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.15 mH @ 100 kHz | 13A | 6.33mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-110-1R4A013JVCMC 1.35MH 11A 2LN TH AEC-Q200 |
4,130 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.35 mH @ 100 kHz | 11A | 7.72mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-110-1R4A013JHCMC 1.35MH 11A 2LN TH AEC-Q200 |
2,579 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.35 mH @ 100 kHz | 11A | 7.89mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCR25XV-080-1R2A018JHCMC 4MH 8A 2LN TH AEC-Q200 |
2,323 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 8A | 13.5mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-080-1R3A026JVCMC 4.15MH 8A 2LN TH AEC-Q200 |
2,585 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.15 mH @ 100 kHz | 8A | 14.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-060-1R1A036JVCMC 7.9MH 6A 2LN TH AEC-Q200 |
3,243 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.9 mH @ 100 kHz | 6A | 27.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-120-1R6A017JVCMC 1.76MH 12A 2LN TH AEC-Q200 |
4,093 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.76 mH @ 100 kHz | 12A | 6.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
