Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCT29XV-110-1R5A019JVCMC 1.21MH 11A 2LN TH AEC-Q200 |
4,190 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.21 mH @ 100 kHz | 11A | 8mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCR38-200-2R3A010JCMC 1MH 20A 2LN TH |
2,519 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 20A | 3.5mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SCT25XV-130-1R5A012JHCMC 1.15MH 13A 2LN TH AEC-Q200 |
2,198 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.15 mH @ 100 kHz | 13A | 6.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

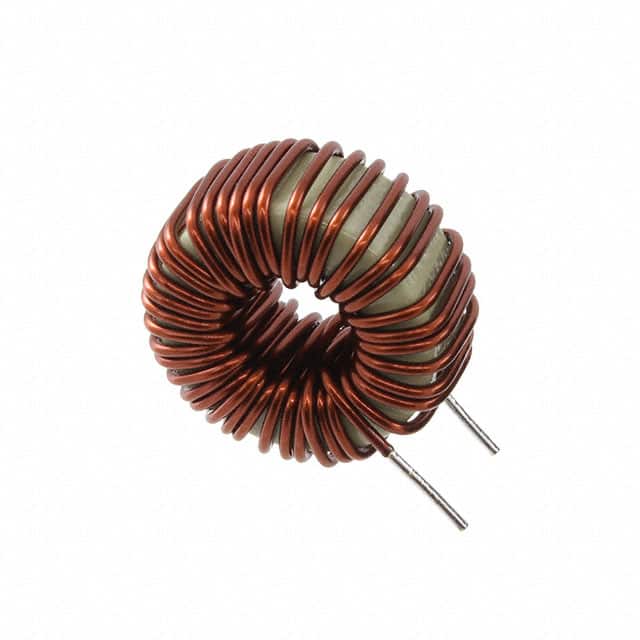

PHBC14-1R2A0120VCMC 120UH 8A 2LN TH |
2,302 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 120 µH @ 100 kHz | 8A | 29.9mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SBT-0180WCMC 80UH 500MA 2LN TH |
4,460 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | 80 µH @ 1 kHz | 500mA | 55mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|
M-542CTCMC 500MA 4LN 200 OHM SMD |
4,156 | - |
|
Datasheet | Vertical, 8 Gull Wing | Signal Line | 4 | 200 Ohms @ 10 MHz | - | 500mA | 120mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
SU9V-R02140CMC 14MH 200MA 2LN TH |
2,171 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 14 mH @ 1 kHz | 200mA | 6Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
SSRH7HS-M07154CMC 15.4MH 700MA 2LN TH |
1,692 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 15.4 mH @ 10 kHz | 700mA | 630mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU10VFC-R10045CMC 4.5MH 1A 2LN TH |
4,436 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 1 kHz | 1A | 550mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SH-S132CMC 1A 3LN TH |
1,899 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 1.7 µH @ 100 kHz | 1A | 81mOhm | 50V | - | -25°C ~ 80°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
