Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

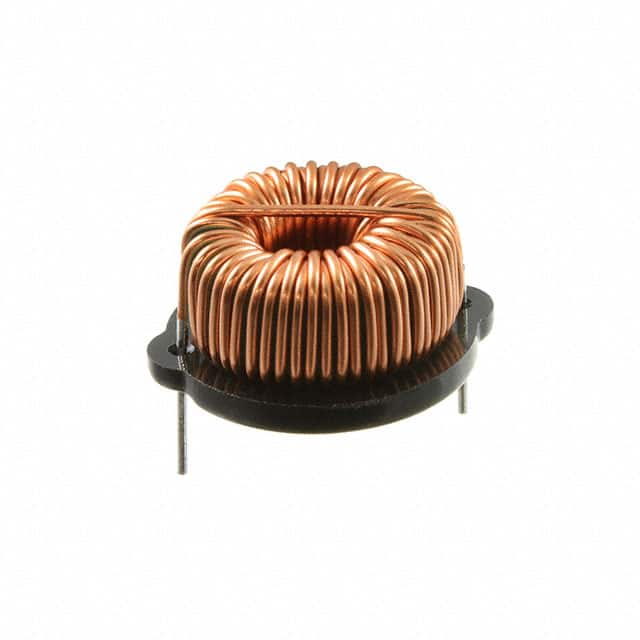

SN8S-50P2NMC 72.0UH 2.0A 0.0750 OHM TH |
1,908 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 2A | 75mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SSR21NHS-12135CMC 13.5MH 1.2A 2LN TH |
3,197 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 13.5 mH @ 10 kHz | 1.2A | 240mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NHS-M12220CMC 22MH 1.2A 2LN TH |
3,174 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 10 kHz | 1.2A | 350mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB21H-18054CMC 5.4MH 1.8A 2LN TH |
3,097 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 5.4 mH @ 10 kHz | 1.8A | 220mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21HS-R05910CMC 91MH 500MA 2LN TH |
3,073 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 91 mH @ 10 kHz | 500mA | 1.88Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN12HP-2201NMC 20.0UH 10.0A 0.0130 OHM TH |
4,358 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 20 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SN12-800JNMC 270.0UH 3.0A 0.1300 OHM TH |
1,861 | - |
|
Datasheet | Vertical, 2 PC Pin | Power Line | 2 | - | 270 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SN14-400NMC 120.0UH 5.0A 0.0450 OHM TH |
3,054 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 120 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
HHBC13-1R2A0127VCMC 127UH 6A 2LN TH |
3,171 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 127 µH @ 100 kHz | 6A | 31.7mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SCR-080-1R1A020JHCMC 2MH 8A 2LN TH |
4,892 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 8A | 15.9mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
