Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS30V-R180190CMC 19MH 1.8A 2LN TH |
3,174 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 19 mH @ 1 kHz | 1.8A | 230mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-05-103CMC 1MH 5A 2LN TH |
2,917 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 5A | 50mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
PLT-02CMC 7.5UH 300MA 2LN TH |
3,151 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 µH @ 100 kHz | 300mA | 55mOhm | - | 110V | -25°C ~ 100°C | - | UL | - | - | - |
|

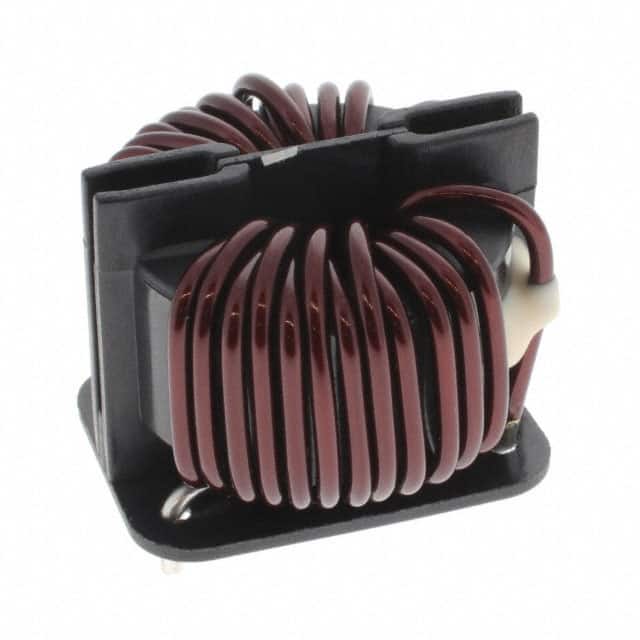

SCF-02-350JHCMC 35MH 2A 2LN TH |
4,404 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 35 mH @ 10 kHz | 2A | 220mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-15-05JCMC 500UH 15A 2LN TH |
4,656 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 15A | 8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR19XV-300-1R9A003JVCMC 56UH 30A 2LN TH AEC-Q200 |
1,068 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 56 µH @ 100 kHz | 30A | 0.747mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCF19XV-300-1R9A003JHCMC 110UH 30A 2LN TH AEC-Q200 |
1,509 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 110 µH @ 100 kHz | 30A | 0.767mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-280-2R1A005JHCMC 600UH 28A 2LN TH AEC-Q200 |
3,368 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 28A | 1.44mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SS11VL-08083CMC 8.3MH 800MA 2LN TH |
3,765 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8.3 mH @ 1 kHz | 800mA | 740mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS24V-R20045-CHCMC 4.5MH 2A 2LN TH |
4,388 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 1 kHz | 2A | 170mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
