Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM6460R-504CMC 500UH 3.3A 2LN SMD |
2,343 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 500 µH @ 10 kHz | 3.3A | 24mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CM6350R-224CMC 220UH 2.2A 2LN SMD |
735 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 220 µH @ 10 kHz | 2.2A | 27mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350R-474CMC 470UH 1.5A 2LN SMD |
734 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 470 µH @ 10 kHz | 1.5A | 60mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350R-334CMC 330UH 1.8A 2LN SMD |
492 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 330 µH @ 10 kHz | 1.8A | 40mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350R-104CMC 100UH 3.3A 2LN SMD |
469 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 100 µH @ 10 kHz | 3.3A | 14mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350R-333CMC 33UH 5.5A 2LN SMD |
171 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 33 µH @ 10 kHz | 5.5A | 7mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6350R-684CMC 680UH 1.2A 2LN SMD |
150 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 680 µH @ 10 kHz | 1.2A | 90mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
T60405S6123X140CMC 580UH 40A 3LN 600 OHM TH |
1,834 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | 600 Ohms @ 100 kHz | 580 µH @ 100 kHz | 40A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
7448063801CMC 1.5MH 38A 2LN TH |
229 | - |
|
Datasheet | Vertical, 12 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 38A | 2.3mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
DKIH-3242-257K-NKCMC 25A 2LN TH |
238 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | - | 25A | 1.6mOhm | - | - | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
|
CM6460R-224CMC 220UH 5A 2LN SMD |
619 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 220 µH @ 10 kHz | 5A | 12mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

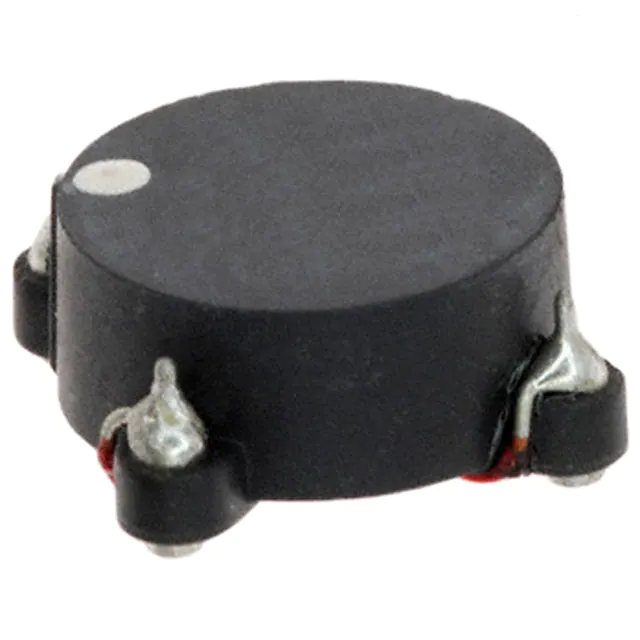

CM6560R-104CMC 100UH 8.5A 2LN SMD |
198 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 10 kHz | 8.5A | 5mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

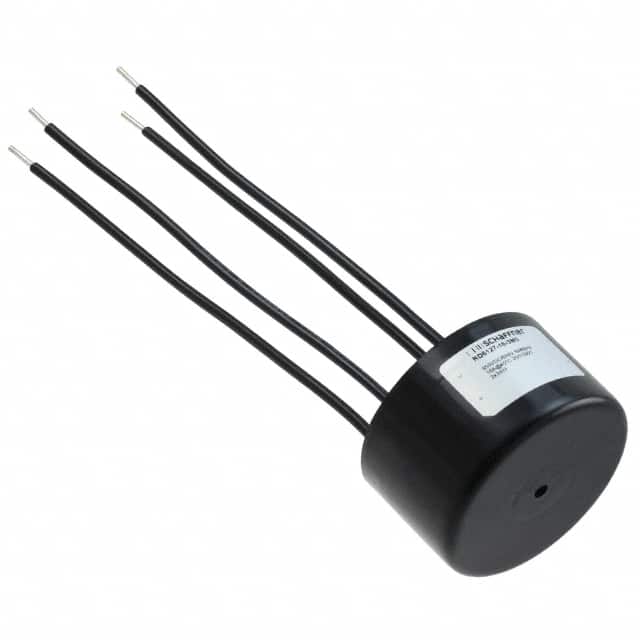

RD6127-16-3M0CMC 3MH 16A 2LN TH |
421 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3 mH @ 1 kHz | 16A (Typ) | 10.9mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
T60405R6123X263CMC 370UH 63A 2LN 390 OHM TH |
1,317 | - |
|
Datasheet | Horizontal, 8 PC Pin | - | 2 | 390 Ohms @ 100 kHz | 370 µH @ 100 kHz | 63A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
TCM0605S-350-2P-T201CMC 100MA 2LN 35 OHM SMD |
20,985 | - |
|
Datasheet | 0202 (0505 Metric), 4 PC Pad | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 2.7Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
RFCMF1220100M4TCMC 200MA 2LN 120 OHM SMD |
1,999 |
1+：$0.12000 10+：$0.10100 25+：$0.09400 50+：$0.08860 100+：$0.08340 250+：$0.07720 500+：$0.07278 1000+：$0.06861 |
|
Datasheet | 0508 (1220 Metric), 4 Lead | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 200mA | 2.5Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
RFCMF1220100M3TCMC 300MA 2LN 80 OHM SMD |
12,475 | - |
|
Datasheet | 0508 (1220 Metric), 4 Lead | Signal Line | 2 | 80 Ohms @ 100 MHz | - | 300mA | 1.5Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
DLM0NSN500HY2DCMC 100MA 2LN 50 OHM SMD |
4,213 | - |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 3.375Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
.jpg "EXC-24CN601X")
|
EXC-24CN601XCMC 200MA 2LN 600 OHM SMD |
41,666 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 600 Ohms @ 100 MHz | - | 200mA | 900mOhm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
LCF080602A900TGCMC 100MA 2LN 90 OHM SMD |
18,976 | - |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 6Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
