Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM2824B103R-10CMC 200MA 2LN 400 OHM SMD |
54,209 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Power, Signal Line | 2 | 400 Ohms @ 100 MHz | - | 200mA | 1.3Ohm | 80V | - | -40°C ~ 100°C | - | - | - | - | - |
|
CC2824E253R-10CMC 25UH 800MA 2LN 2KOHM SMD |
15,524 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | 2 kOhms @ 100 MHz | 25 µH @ 100 kHz | 800mA | 260mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-10-30JCMC 3MH 10A 2LN TH |
8,985 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 10A | 30mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF20-05-550CMC 5.5MH 5A 2LN TH |
3,285 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 10 kHz | 5A | 28mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF20-05-1100CMC 11MH 5A 2LN TH |
758 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 11 mH @ 10 kHz | 5A | 39mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

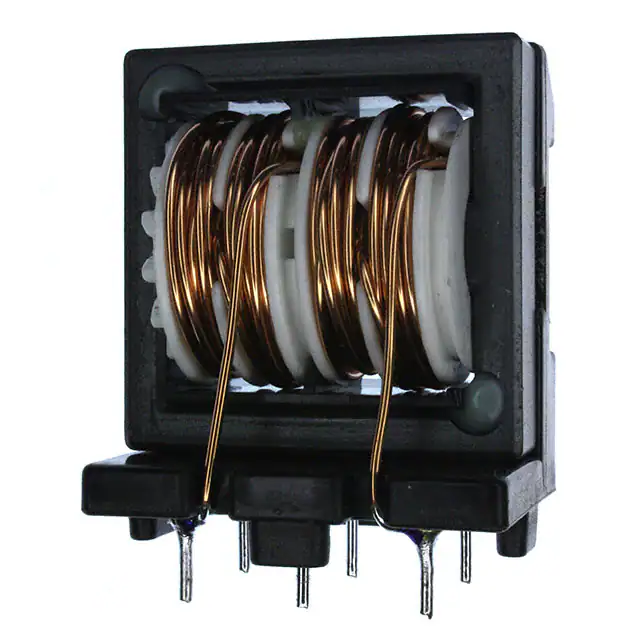

EV35-3.0-02-10MCMC 10MH 3A 2LN TH |
308 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 400 Hz | 3A | 72mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
T60405R6123X213CMC 2.96MH 12.4A 2LN 2.95KOHM TH |
2,743 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 2.95 kOhms @ 100 kHz | 2.96 mH @ 100 kHz | 12.4A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
B82726S2163N030CMC 2.2MH 16A 2LN TH |
10,720 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 16A | 7.1mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
TCK-017CMC 497UH 1.7A 2LN TH |
515 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 497 µH @ 100 kHz | 1.7A | 100mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|

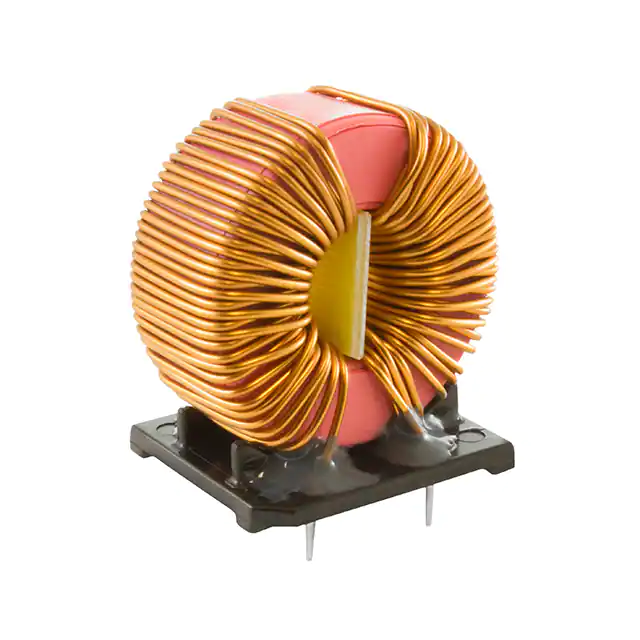

PH9455.405NLCMC 4.5MH 12A 2LN 4.4K OHM TH |
6,305 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 4.4 kOhms @ 4 MHz | 4.5 mH @ 4 MHz | 12A | 8.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
PH9455.105NLCMC 1MH 22A 2LN 1.5K OHM TH |
144 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 1.5 kOhms @ 15.94 MHz | 1 mH @ 15.94 MHz | 22A | 2.1mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

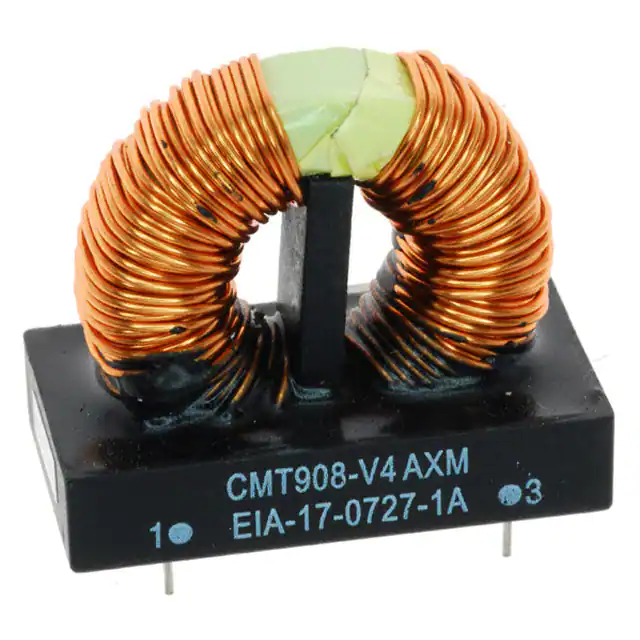

CMT908-V4CMC 16MH 2.6A 2LN TH ESD |
3,849 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 16 mH @ 10 kHz | 2.6A | 160mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
B82726E6243A041CMC 1MH 24A 2LN TH |
633 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 24A | 2.3mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
B82746S4103A021CMC 2MH 10A 3LN TH |
392 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 2 mH @ 10 kHz | 10A | 9.6mOhm (Typ) | - | 500/300V | -40°C ~ 125°C | - | UR | - | - | - |
|
CMT-8121CMC 1MH 20A 2LN TH ESD |
1,850 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 20A | 7mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
PH9408.364NLTCMC 23A 2LN 1.5K OHM SMD |
883 | - |
|
Datasheet | Nonstandard | - | 2 | 1.5 kOhms @ 1.3 MHz | - | 23A | 3.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CMC-06CMC 3.3A 2LN TH |
424 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | - | 3.3A | 35mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
T60405R6123X616CMC 3.1MH 16A 2LN 3K OHM TH |
1,345 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 3 kOhms @ 100 kHz | 3.1 mH @ 100 kHz | 16A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

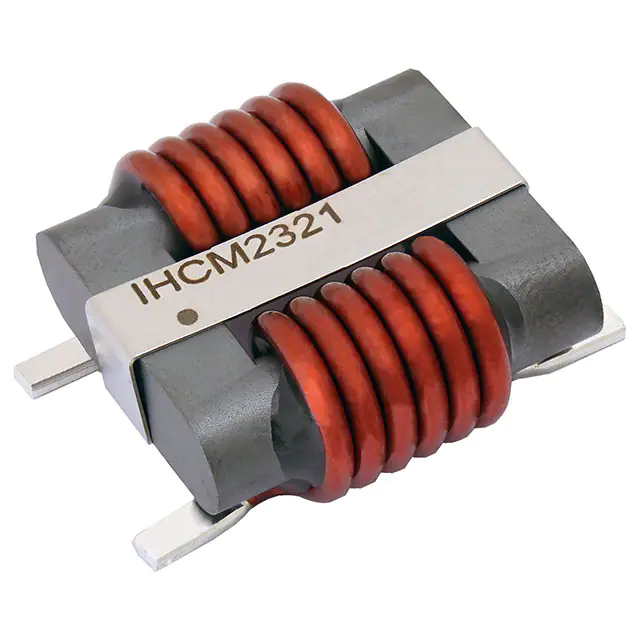

IHCM2321AAEG121N10CMC 120UH 25A 2LN 480 OHM SMD |
483 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Power Line | 2 | 480 Ohms @ 10 MHz | 120 µH @ 100 kHz | 25A | 1.8mOhm | - | - | -40°C ~ 155°C | - | - | - | - | - |
|
PLT10HH101150PNLCMC 15A 2LN 100 OHM SMD AEC-Q200 |
333 | - |
|
Datasheet | Vertical, 4 PC Pad | Power Line | 2 | 100 Ohms @ 10 MHz | - | 15A | 2.3mOhm | 300V | - | -55°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
