Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCK-051CMC 145UH 5.2A 2LN TH |
1,802 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 145 µH @ 100 kHz | 5.2A | 20mOhm | 500V | - | - | - | - | - | - | - |
|
PA5141.205NLTCMC 30A 2LN 700 OHM SMD |
1,177 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 700 Ohms @ 3.35 MHz | - | 30A | 1.35mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

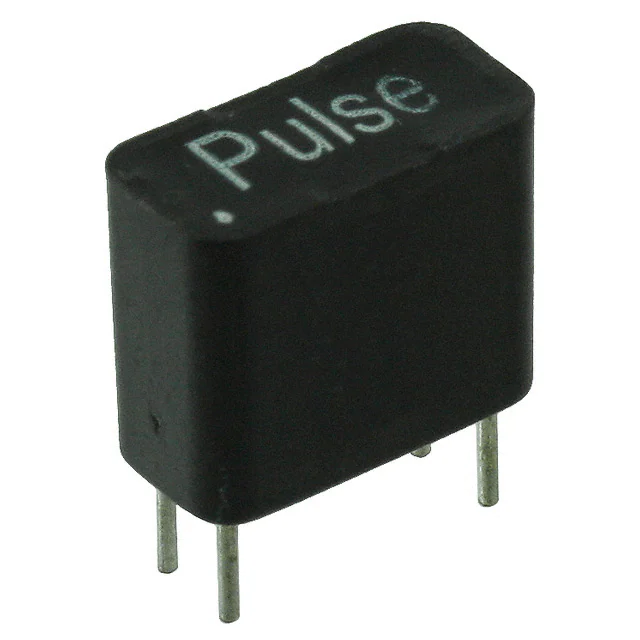

PE-67531NLCMC 2LN TH |
2,268 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | - | - | 600mOhm | - | - | - | - | - | - | - | - |
|
8107-RCCMC 2MH 6.6A 2LN TH |
968 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 6.6A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8103-RCCMC 1MH 4.8A 2LN TH |
616 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 4.8A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
8108-RCCMC 1MH 10A 2LN TH |
2,015 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7448258022CMC 2.2MH 8A 2LN TH |
2,465 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 8A | 14mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
74482210002CMC 175UH 10A 2LN TH |
1,096 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 175 µH @ 100 kHz | 10A | 4mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744825510CMC 10MH 5A 2LN TH |
260 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 5A | 55mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
74466340007CMC 700UH 5.25A 2LN SMD |
530 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 700 µH @ 10 kHz | 5.25A | 30mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
PLT10HN101150P0BCMC 15A 2LN 100 OHM TH |
2,958 | - |
|
Datasheet | Vertical, 4 PC Pad | Power Line | 2 | 100 Ohms @ 10 MHz | - | 15A | 2.3mOhm | 300V | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
TCK-050CMC 325UH 3.3A 2LN TH |
8,716 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 325 µH @ 100 kHz | 3.3A | 35mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
TCK-048CMC 450UH 5.2A 2LN TH |
2,543 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 450 µH @ 100 kHz | 5.2A | 25mOhm | 500V | - | -40°C ~ 125°C | - | - | - | - | - |
|
7124-RCCMC 2.55MH 10A 2LN TH |
1,155 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | - | 2 | - | 2.55 mH @ 1 kHz | 10A | 20mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CMT-8108CMC 1MH 10A 2LN TH ESD |
1,576 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
SCF-05-350CMC 3.5MH 5A 2LN TH |
906 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 10 kHz | 5A | 35mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-10-10JCMC 1MH 10A 2LN TH |
1,058 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 10A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
T60405R6123X220CMC 470UH 20.5A 2LN 500 OHM TH |
4,198 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 500 Ohms @ 100 kHz | 470 µH @ 100 kHz | 20.5A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
7448680120CMC 330UH 12A 2LN TH |
566 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 330 µH @ 10 kHz | 12A | 6mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
CC2824J502R-10CMC 5UH 1.2A 2LN 400 OHM SMD |
5,419 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | 400 Ohms @ 500 MHz | 5 µH @ 100 kHz | 1.2A | 100mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
