Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG1265NLTCMC 20A 2LN SMD |
1,125 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | - | 20A | 4.1mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

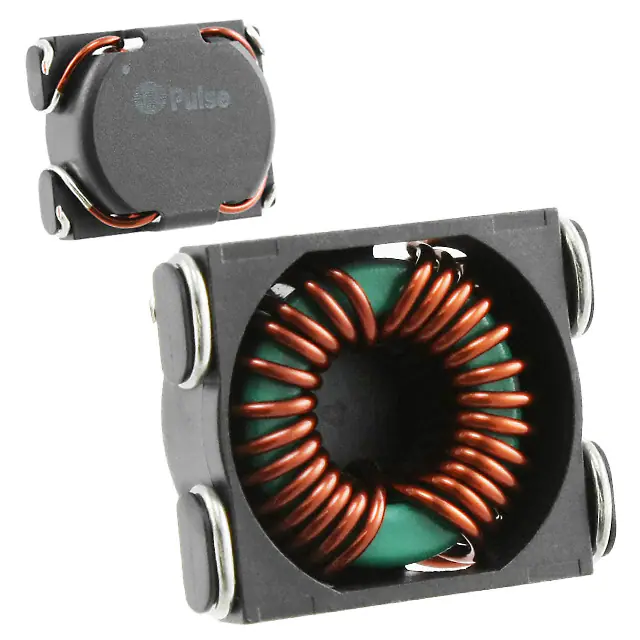

P0469NLTCMC 11.6A 2LN SMD |
3,159 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 11.6A | 10mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|

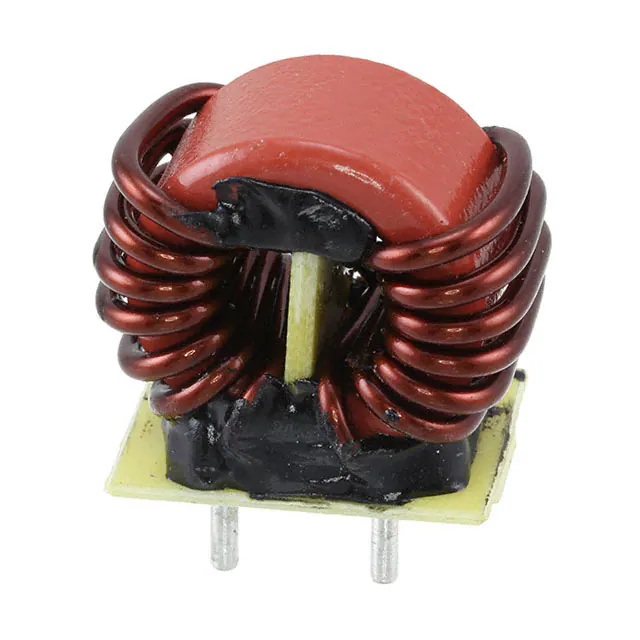

S14100038CMC 560UH 20A 2LN TH |
1,544 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 560 µH @ 10 kHz | 20A | 2.8mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744212221CMC 220UH 300MA 2LN 1.2K OHM SMD |
4,072 | - |
|
Datasheet | Horizontal, 4 J-Lead | Signal Line | 2 | 1.2 kOhms @ 35 MHz | 220 µH @ 100 kHz | 300mA | 280mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
744212510CMC 51UH 300MA 2LN 300 OHM SMD |
3,276 | - |
|
Datasheet | Horizontal, 4 J-Lead | Signal Line | 2 | 300 Ohms @ 300 MHz | 51 µH @ 100 kHz | 300mA | 160mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
744290321CMC 320UH 3.25A 2LN SMD |
4,542 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 320 µH @ 10 kHz | 3.25A | 29mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

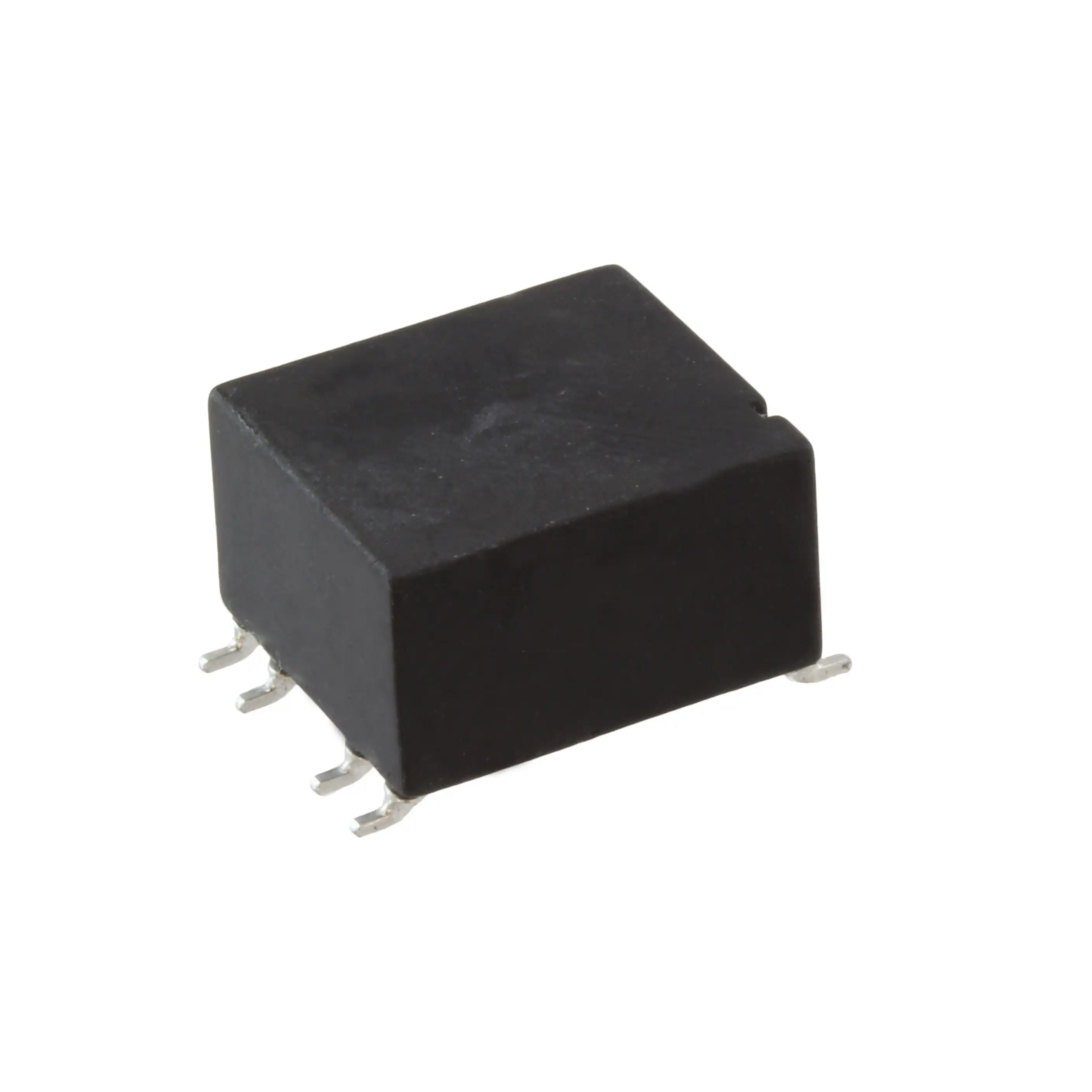

744290121CMC 120UH 5.5A 2LN SMD |
1,357 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 120 µH @ 10 kHz | 5.5A | 10.5mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744290152CMC 1.5MH 1.5A 2LN SMD |
750 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 1.5 mH @ 10 kHz | 1.5A | 120mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

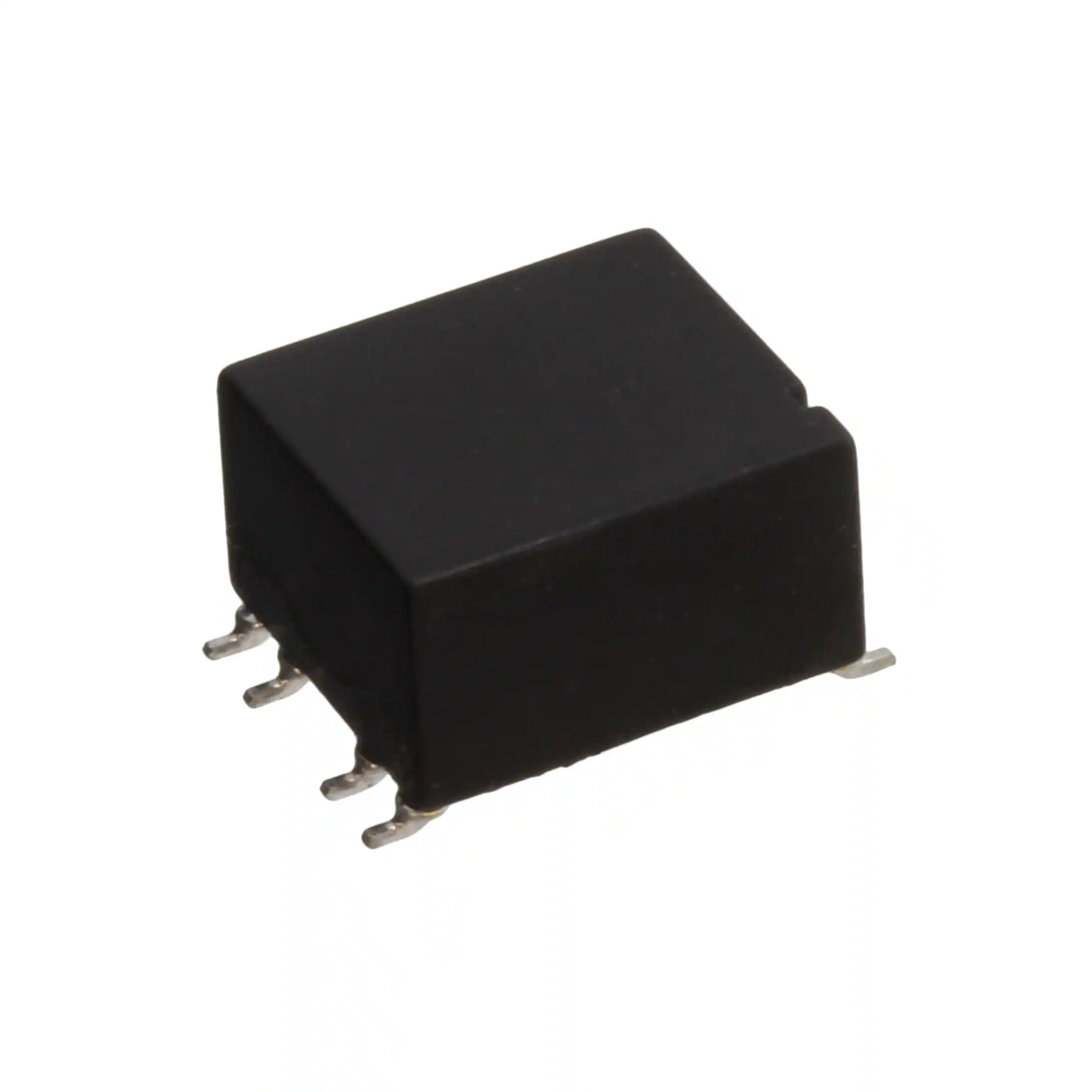

744290130CMC 13UH 10A 2LN SMD |
124 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | - | 13 µH @ 10 kHz | 10A | 2.7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CC1812C513R-10CMC 51UH 200MA 2LN 3.5KOHM SMD |
18,639 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | 3.5 kOhms @ 40 MHz | 51 µH @ 100 kHz | 200mA | 500mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
CC2824E513R-10CMC 51UH 800MA 2LN 3.8KOHM SMD |
6,372 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | 3.8 kOhms @ 50 MHz | 51 µH @ 100 kHz | 800mA | 300mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82792C2105N365CMC 1MH 500MA 4LN SMD |
2,013 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 4 | - | 1 mH @ 100 kHz | 500mA | 170mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82792C0685N365CMC 6.8MH 600MA 2LN SMD |
1,252 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 2 | - | 6.8 mH @ 10 kHz | 600mA | 500mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
CMS1-1-RCMC 4.5UH 7A 2LN SMD |
2,397 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 4.5 µH @ 100 kHz | 7A | 2.7mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
CM3032V301R-10CMC 8A 4LN 300 OHM SMD |
4,459 | - |
|
Datasheet | Vertical, 8 Flat Lead | Power Line | 4 | 300 Ohms @ 100 MHz | - | 8A | 10mOhm | 30V | - | -40°C ~ 125°C | - | - | - | - | - |
|
PLT10HH1026R0PNLCMC 6A 2LN 1K OHM SMD AEC-Q200 |
5,681 | - |
|
Datasheet | Vertical, 4 PC Pad | Power Line | 2 | 1 kOhms @ 10 MHz | - | 6A | 8mOhm (Typ) | 100V | - | -55°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
PLT10HH9016R0PNLCMC 6A 2LN 900 OHM SMD AEC-Q200 |
5,393 | - |
|
Datasheet | Vertical, 4 PC Pad | Power Line | 2 | 900 Ohms @ 10 MHz | - | 6A | 8.5mOhm | 100V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PLT10HH501100PNLCMC 10A 2LN 500 OHM SMD AEC-Q200 |
3,741 | - |
|
Datasheet | Vertical, 4 PC Pad | Power Line | 2 | 500 Ohms @ 10 MHz | - | 10A | 4.1mOhm | 100V | - | -55°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
CMS1-2-RCMC 8UH 5.7A 2LN SMD |
892 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 8 µH @ 100 kHz | 5.7A | 4mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

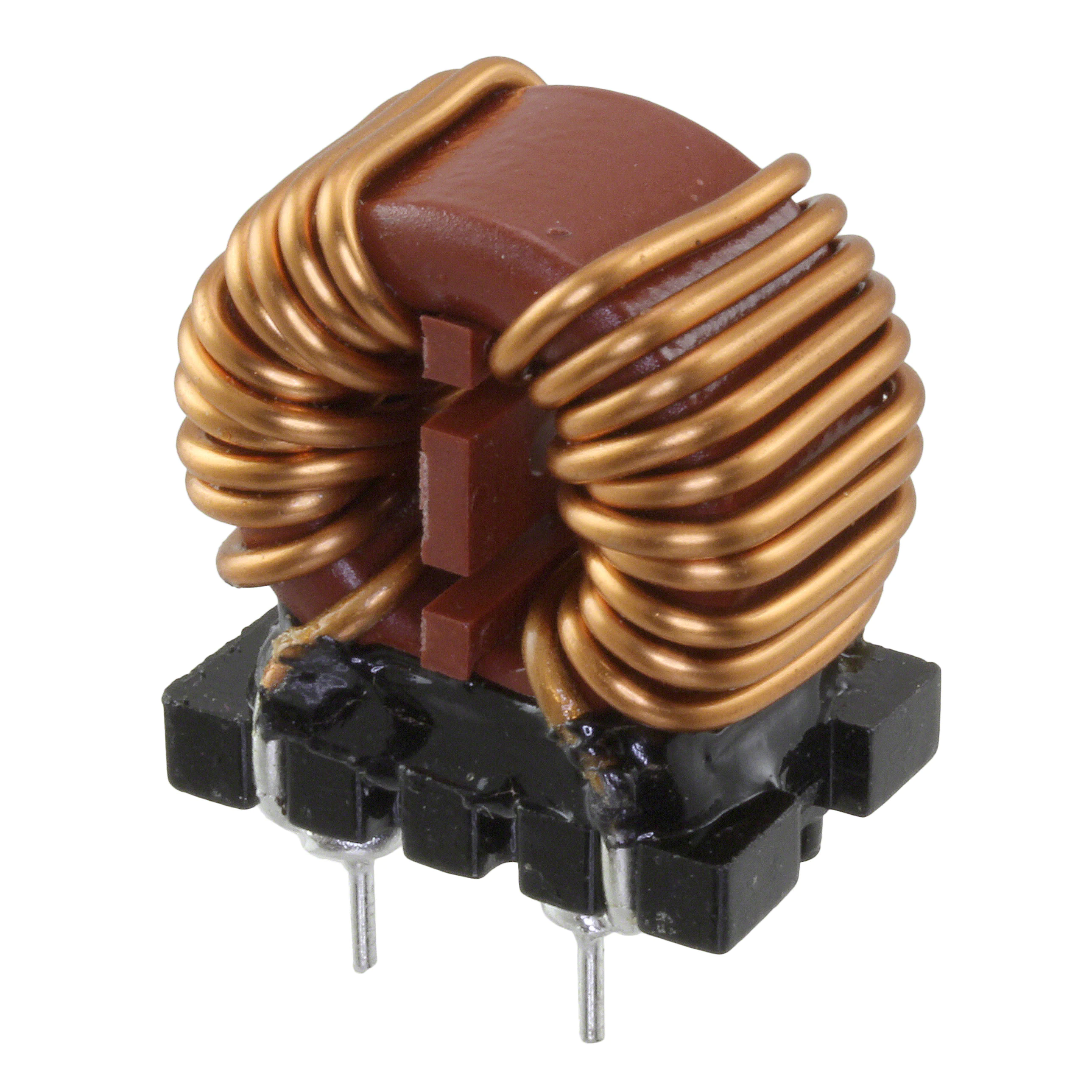

744824101CMC 1MH 10A 2LN TH |
936 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 10A | 7mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
