Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

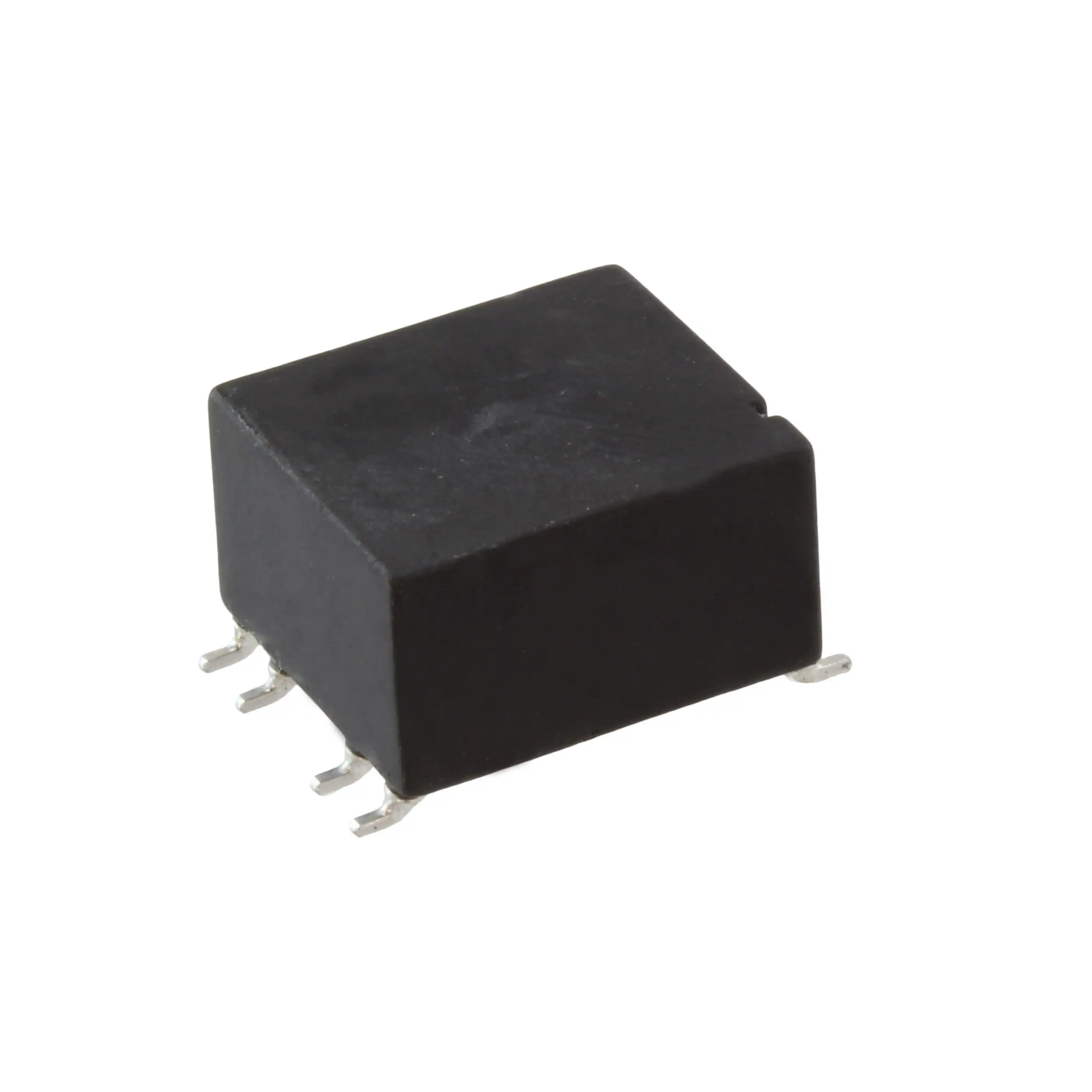

744290560CMC 56UH 7A 2LN SMD |
1,809 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 56 µH @ 10 kHz | 7A | 4.7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744290104CMC 100MH 150MA 2LN SMD |
600 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 100 mH @ 10 kHz | 150mA | 8.5Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744290683CMC 68MH 200MA 2LN SMD |
130 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 68 mH @ 10 kHz | 200mA | 5Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
74466240007CMC 700UH 4A 2LN TH |
483 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 4A | 27mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

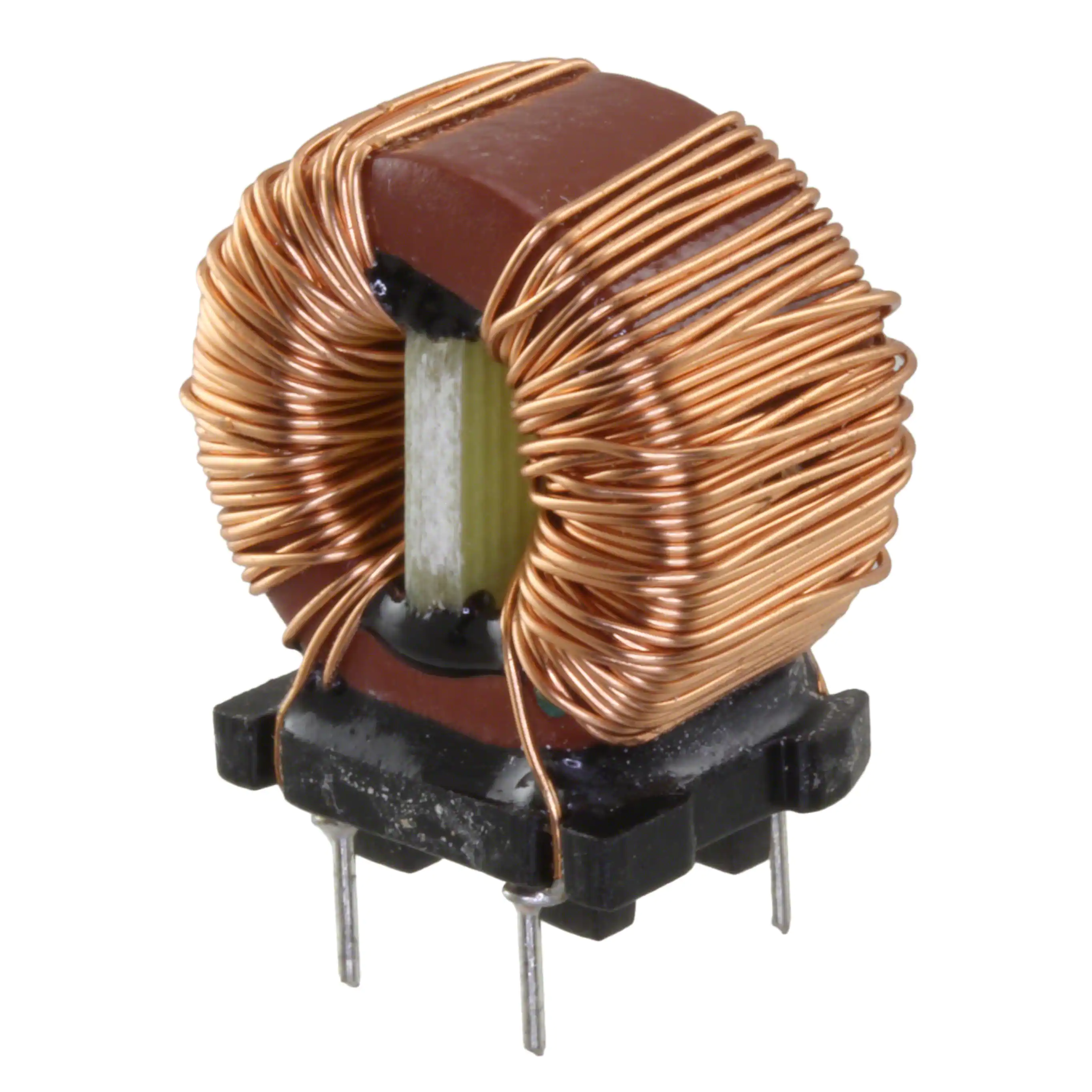

744823220CMC 20MH 1.5A 2LN TH |
745 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 1.5A | 270mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744823422CMC 2.2MH 4A 2LN TH |
701 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 4A | 30mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

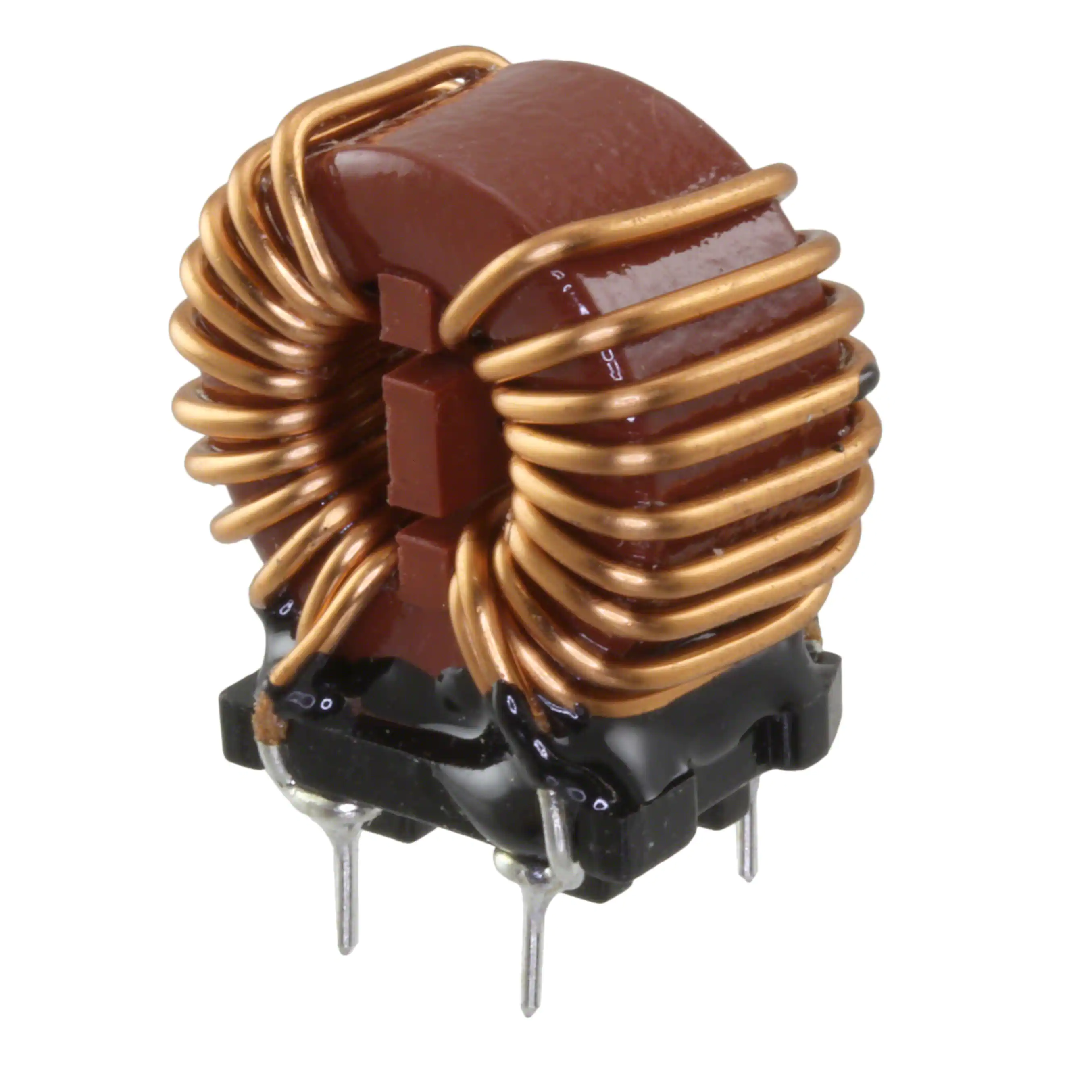

744823601CMC 1MH 6A 2LN TH |
388 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 6A | 13mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744824622CMC 2.2MH 6A 2LN TH |
113 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 6A | 20mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7448229004CMC 350UH 8.5A 2LN TH |
1,308 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 350 µH @ 100 kHz | 8.5A | 7mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7448251201CMC 1MH 12A 2LN TH |
1,162 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 12A | 9mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
