Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744206CMC 60UH 2A 2LN SMD |
496 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 2 | - | 60 µH @ 100 kHz | 2A | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

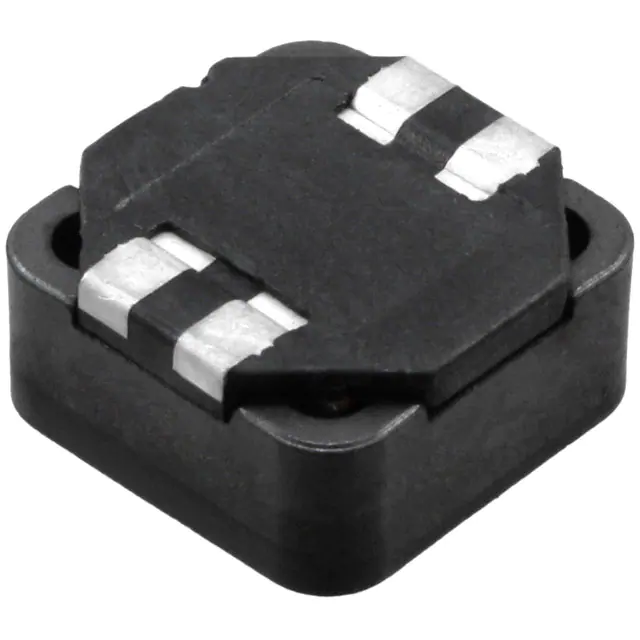

744282100CMC 10UH 2.25A 2LN 9K OHM SMD |
2,716 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 9 kOhms @ 20 MHz | 10 µH @ 100 kHz | 2.25A | 50mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744282102CMC 1MH 250MA 2LN 160K OHM SMD |
228 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 160 kOhms @ 2 MHz | 1 mH @ 100 kHz | 250mA | 2.8Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744203CMC 500UH 400MA 4LN SMD |
385 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 4 | - | 500 µH @ 100 kHz | 400mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
7446122001CMC 1MH 2A 2LN TH |
2,015 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2A | 60mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744272472CMC 4.7MH 350MA 2LN 13K OHM SMD |
11,422 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 13 kOhms @ 1 MHz | 4.7 mH @ 100 kHz | 350mA | 720mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272222CMC 2.2MH 750MA 2LN 7.5K OHM SMD |
946 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 7.5 kOhms @ 4 MHz | 2.2 mH @ 100 kHz | 750mA | 300mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272392CMC 3.9MH 520MA 2LN 9.6K OHM SMD |
826 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 9.6 kOhms @ 3 MHz | 3.9 mH @ 100 kHz | 520mA | 540mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

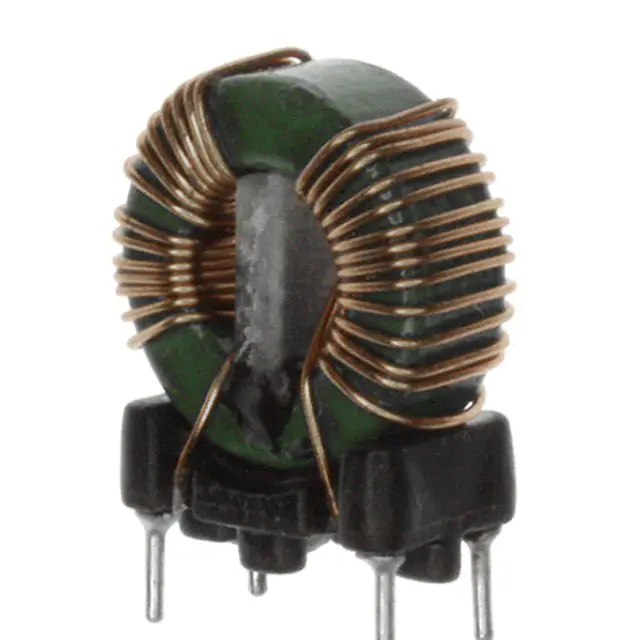

744841210CMC 100UH 1.5A 2LN TH |
1,389 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 100 µH @ 10 kHz | 1.5A | 80mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

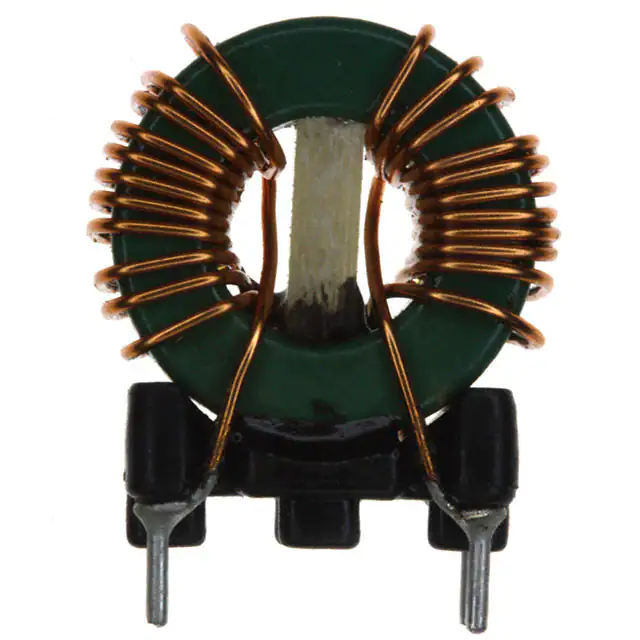

744841247CMC 47UH 2A 2LN TH |
662 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 47 µH @ 10 kHz | 2A | 40mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
