Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

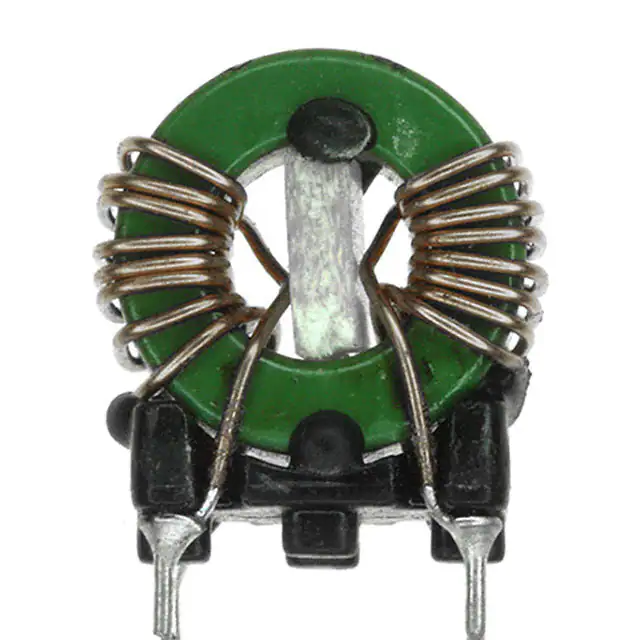

744841330CMC 30UH 3A 2LN TH |
291 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 30 µH @ 10 kHz | 3A | 26mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

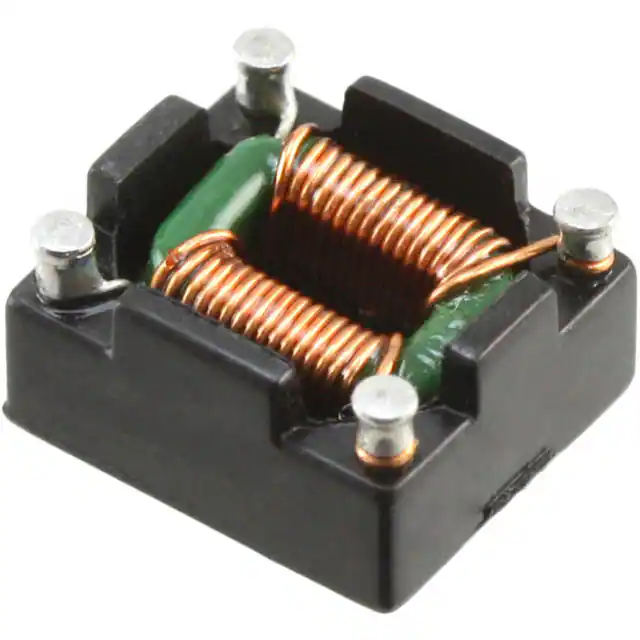

744273222CMC 30UH 1.4A 2LN 2.2K OHM SMD |
7,988 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 2.2 kOhms @ 60 MHz | 30 µH @ 100 kHz | 1.4A | 60mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744242220CMC 22UH 300MA 2LN 1.5K OHM SMD |
1,006 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | 1.5 kOhms @ 65 MHz | 22 µH @ 100 kHz | 300mA | 230mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744201CMC 4.7MH 200MA 4LN SMD |
1,784 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 4 | - | 4.7 mH @ 100 kHz | 200mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744205CMC 100UH 700MA 4LN SMD |
1,271 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 4 | - | 100 µH @ 100 kHz | 700mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744284100CMC 10UH 2.75A 2LN 10K OHM SMD |
699 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 10 kOhms @ 30 MHz | 10 µH @ 100 kHz | 2.75A | 40mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

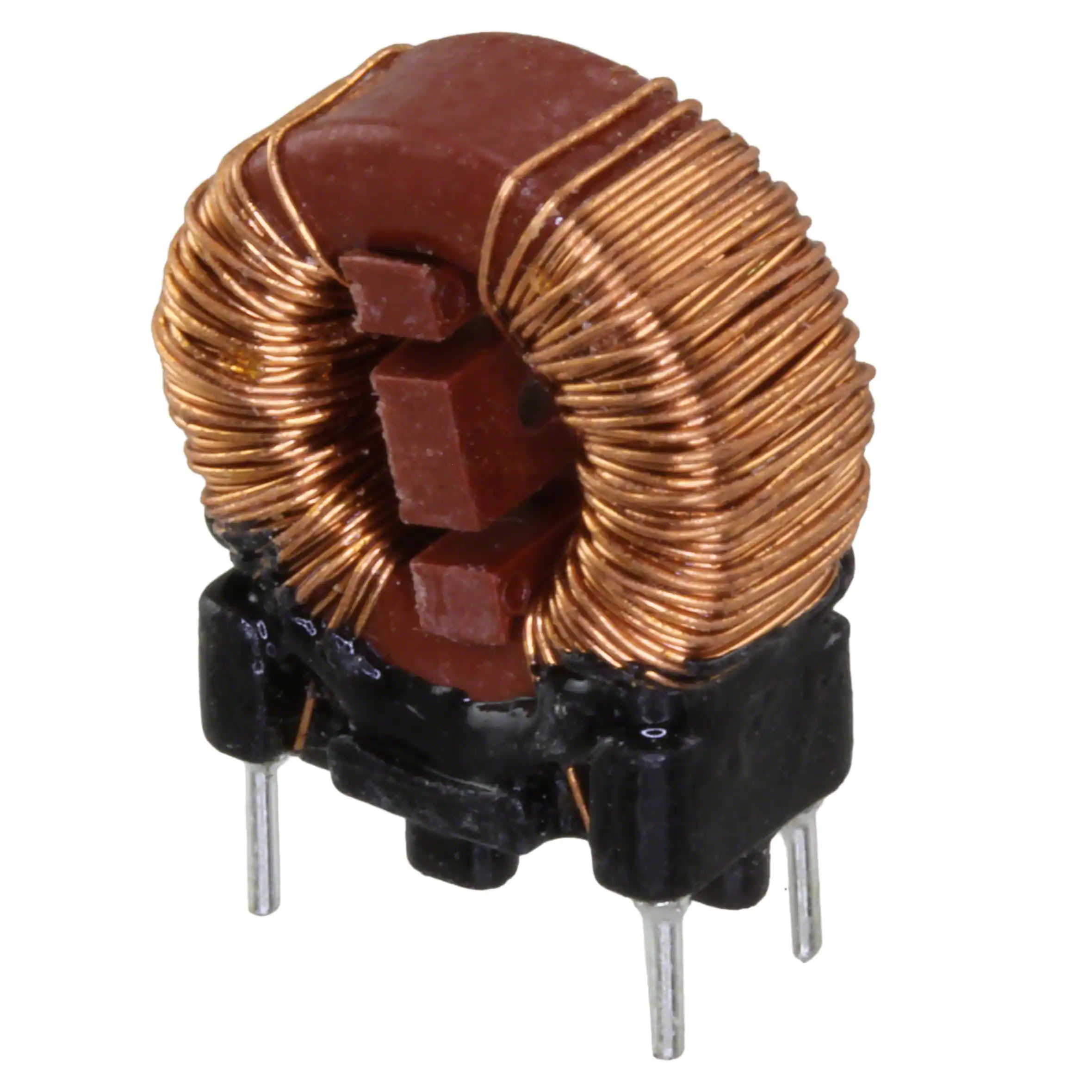

744821120CMC 20MH 500MA 2LN TH |
6,403 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 500mA | 1Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

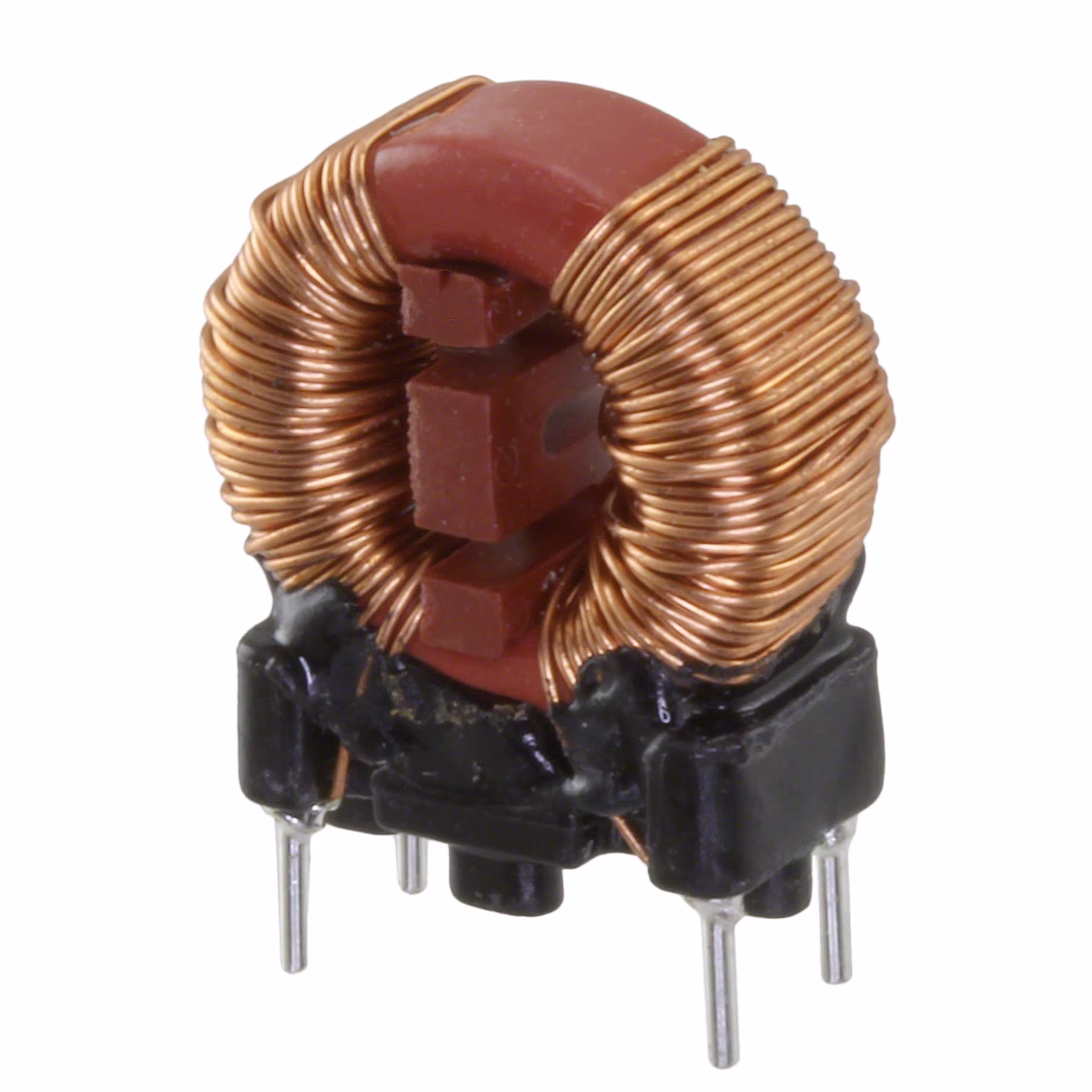

744821110CMC 10MH 700MA 2LN TH |
2,050 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 700mA | 350mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744821240CMC 4MH 1.5A 2LN TH |
1,186 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 1.5A | 140mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744821201CMC 1MH 2A 2LN TH |
1,110 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2A | 45mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
