Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7448225007CMC 700UH 5A 2LN TH |
765 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 5A | 15mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744825320CMC 20MH 3A 2LN TH |
119 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 3A | 160mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

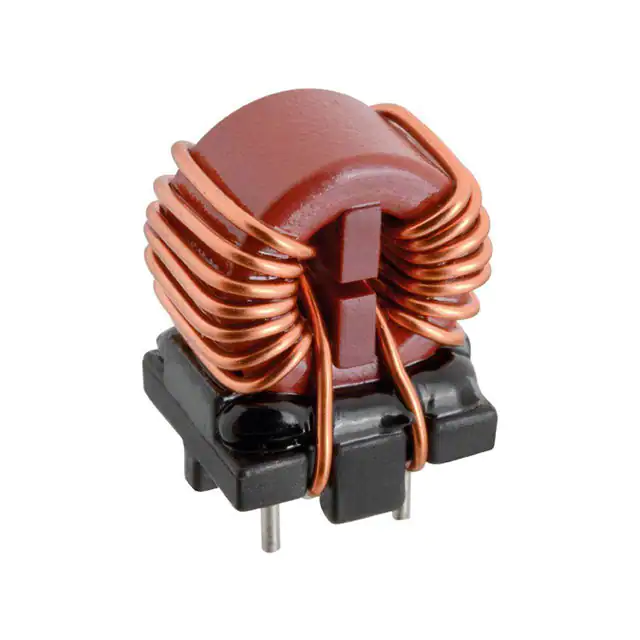

7448226404CMC 350UH 8.5A 2LN TH |
104 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 350 µH @ 100 kHz | 8.5A | 7mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

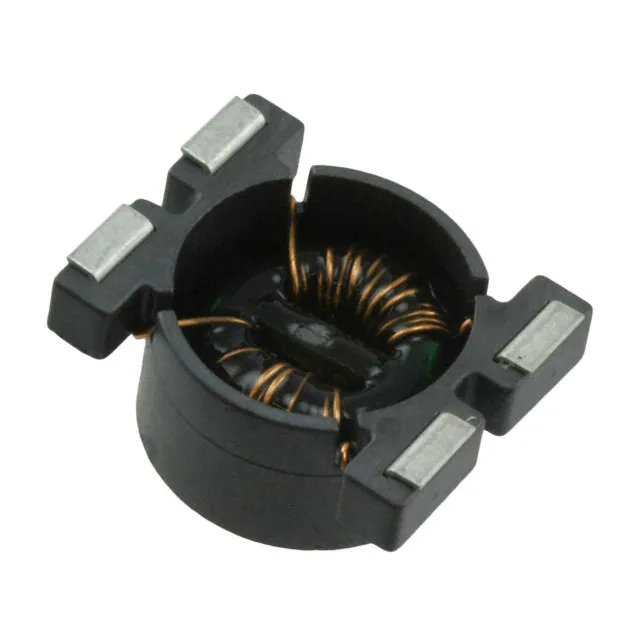

7446632002CMC 2.2MH 2.75A 2LN SMD |
688 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2.75A | 100mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446632001CMC 1MH 3A 2LN SMD |
288 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 1 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446631007CMC 6.8MH 1.4A 2LN SMD |
251 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.4A | 300mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

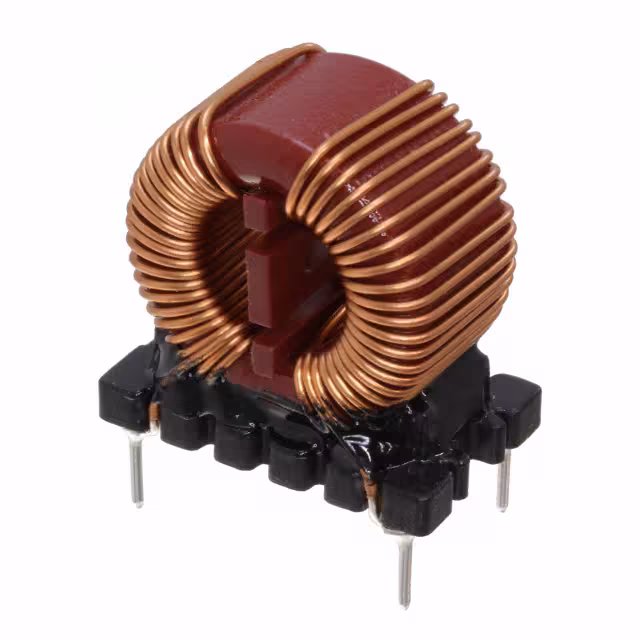

744825605CMC 5MH 6A 2LN TH |
730 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 6A | - | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

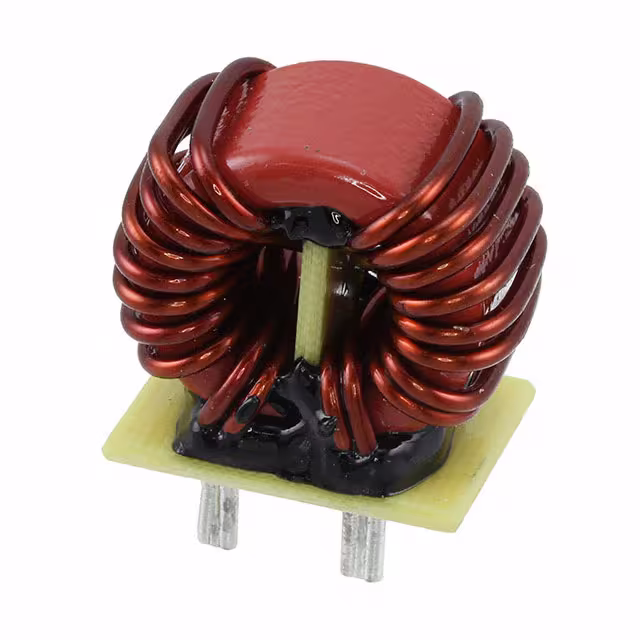

S14100039CMC 285UH 25A 2LN TH |
1,387 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 285 µH @ 10 kHz | 25A | 1.6mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744834622CMC 2.2MH 6A 2LN TH |
109 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 6A | 22mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744834101CMC 1MH 10A 2LN TH |
5,774 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 10A | 12.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
