Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

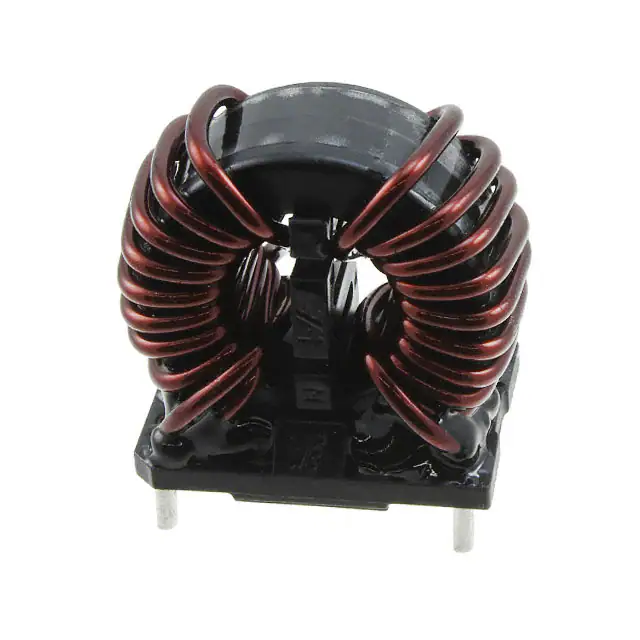

7448052502CMC 2.5MH 25A 2LN TH |
131 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 25A | 2.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

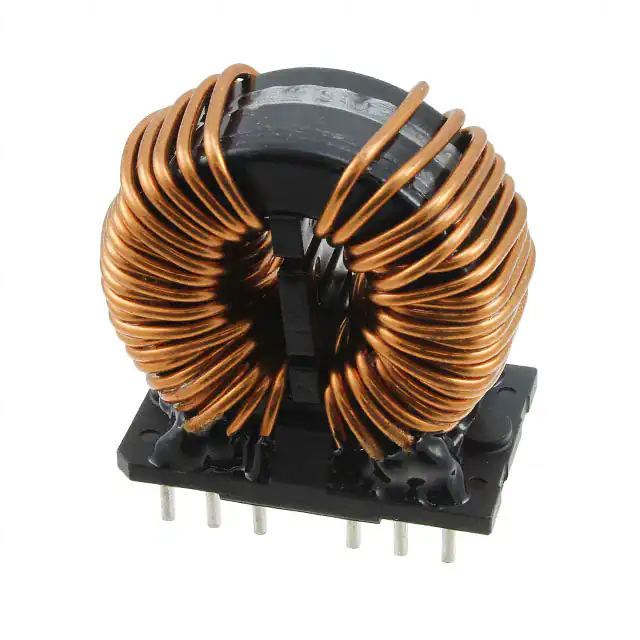

7448063801CMC 1.5MH 38A 2LN TH |
229 | - |
|
Datasheet | Vertical, 12 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 38A | 2.3mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
784231371CMC 280MA 2LN 370OHM SMD AECQ200 |
1,620 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
.jpg "744231061")
|
744231061CMC 400MA 2LN 67OHM SMD AEC-Q200 |
4,132 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744231261CMC 300MA 2LN 260OHM SMD AECQ200 |
1,024 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
744230450CMC 650MA 2LN 45OHM SMD AEC-Q200 |
5,332 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 45 Ohms @ 100 MHz | - | 650mA | 110mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
.jpg "744232601")
|
744232601CMC 260MA 2LN 600OHM SMD AECQ200 |
4,103 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | - | 260mA | 800mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744232161CMC 340MA 2LN 160OHM SMD AECQ200 |
3,691 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 340mA | 400mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744232261CMC 310MA 2LN 260OHM SMD AECQ200 |
1,766 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 310mA | 500mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744233900CMC 280MA 2LN 90OHM SMD AEC-Q200 |
7,838 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 280mA | 300mOhm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
