Common Mode Chokes

Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Filter Type	Number of Lines	Impedance @ Frequency	Current Rating (Max)	DC Resistance (DCR) (Max)	Voltage Rating - DC	Voltage Rating - AC	Operating Temperature	Ratings	Approval Agency	Features	Mounting Type	Size / Dimension	Height (Max)
SRF0905-501Y CMC 500UH 1A 2LN 1KOHM SMD Bourns Inc.	2,079	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	1 kOhms @ 1 MHz	500 µH @ 100 kHz	1A	150mOhm	80V	-	-40°C ~ 105°C	-	-	-	-	-
SRF0905-471Y CMC 470UH 1.1A 2LN 1KOHM SMD Bourns Inc.	1,368	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	1 kOhms @ 2 MHz	470 µH @ 100 kHz	1.1A	140mOhm	80V	-	-40°C ~ 105°C	-	-	-	-	-
SRF0905-100Y CMC 10UH 1.6A 2LN 200 OHM SMD Bourns Inc.	1,112	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	200 Ohms @ 20 MHz	10 µH @ 1 kHz	1.6A	80mOhm	80V	-	-40°C ~ 105°C	-	-	-	-	-
ACM9070-701-2PL-TL01 CMC 5A 2LN 700 OHM SMD TDK Corporation	44,369	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Power Line	2	700 Ohms @ 100 MHz	-	5A	10mOhm	80V	-	-40°C ~ 85°C	-	-	-	-	-
SRF0905A-501Y CMC 500UH 1A 2LN SMD AEC-Q200 Bourns Inc.	2,616	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	1 kOhms @ 1 MHz	500 µH @ 100 kHz	1A	150mOhm	80V	-	-40°C ~ 105°C	AEC-Q200	-	-	-	-
SRF0905A-652Y CMC 6.5MH 300MA 2LN SMD AEC-Q200 Bourns Inc.	1,971	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	5 kOhms @ 300 kHz	6.5 mH @ 100 kHz	300mA	1.05Ohm	80V	-	-40°C ~ 105°C	AEC-Q200	-	-	-	-
B82793C0225N265 CMC 2.2MH 500MA 2LN SMD AEC-Q200 EPCOS - TDK Electronics	4,848	-	RFQ	Datasheet	Horizontal, 4 Gull Wing	Signal Line	2	-	2.2 mH @ 100 kHz	500mA	400mOhm (Typ)	80V	42V	-40°C ~ 125°C	AEC-Q200	-	-	-	-
744235251 CMC 250UH 200MA 2LN 10KOHM SMD Würth Elektronik	1,659	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	10 kOhms @ 10 MHz	250 µH @ 10 kHz	200mA	1.6Ohm	60V	-	-40°C ~ 125°C	AEC-Q200	-	-	-	-
ACM2012-222-2P-T001 CMC 150MA 2LN 2.2KOHM SMD TDK Corporation	1,546	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	2.2 kOhms @ 100 MHz	-	150mA	2.5Ohm	50V	-	-40°C ~ 105°C	AEC-Q200	-	-	-	-
SRF0905A-250Y CMC 25UH 1A 2LN SMD AEC-Q200 Bourns Inc.	1,282	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	600 Ohms @ 20 MHz	25 µH @ 1 kHz	1A	160mOhm	80V	-	-40°C ~ 105°C	-	-	-	-	-
SRF0905A-202Y CMC 2MH 600MA 2LN SMD AEC-Q200 Bourns Inc.	546	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	3 kOhms @ 1 MHz	2 mH @ 100 kHz	600mA	420mOhm	80V	-	-40°C ~ 105°C	-	-	-	-	-
SRF0504-351Y CMC 1.1UH 2A 2LN 350 OHM SMD Bourns Inc.	20,163	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	350 Ohms @ 100 MHz	1.1 µH @ 100 kHz	2A	40mOhm	50V	-	-40°C ~ 125°C	-	-	-	-	-
SRF0504-152Y CMC 3.6UH 1A 2LN 1.5KOHM SMD Bourns Inc.	10,743	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	1.5 kOhms @ 100 MHz	3.6 µH @ 100 kHz	1A	100mOhm	50V	-	-40°C ~ 125°C	-	-	-	-	-
SRF0504-102Y CMC 2.7UH 1.5A 2LN 1KOHM SMD Bourns Inc.	21,803	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	1 kOhms @ 100 MHz	2.7 µH @ 100 kHz	1.5A	60mOhm	50V	-	-40°C ~ 125°C	-	-	-	-	-
SRF0504-191Y CMC 600NH 5A 2LN 190 OHM SMD Bourns Inc.	635	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	190 Ohms @ 100 MHz	600 nH @ 100 kHz	5A	20mOhm	50V	-	-40°C ~ 125°C	-	-	-	-	-
ACT1210-220-2P-TL00 CMC 22UH 250MA 2LN 1.1KOHM SMD TDK Corporation	61,452	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	1.1 kOhms @ 10 MHz	22 µH @ 100 kHz	250mA	500mOhm	80V	-	-55°C ~ 150°C	AEC-Q200	-	-	-	-
CMS1-6-R CMC 32.8UH 3.1A 2LN SMD Eaton - Electronics Division	45,868	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Power Line	2	-	32.8 µH @ 100 kHz	3.1A	13.8mOhm (Typ)	-	-	-40°C ~ 160°C	-	-	-	-	-

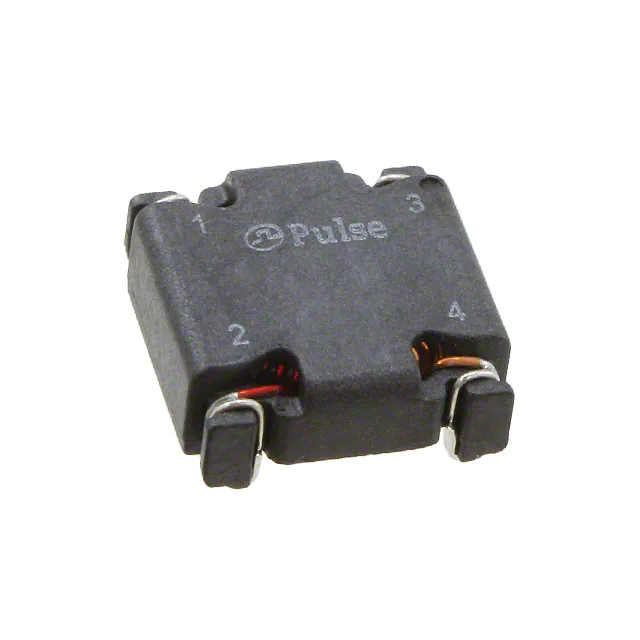

PA2746NL CMC 6A 2LN SMD Pulse Electronics	11,692	-	RFQ	Datasheet	Horizontal, 4 PC Pad	-	2	-	-	6A	4.3mOhm	-	-	-40°C ~ 130°C	-	-	-	-	-
ACT1210-510-2P-TL00 CMC 51UH 200MA 2LN 2.6KOHM SMD TDK Corporation	19,108	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	2.6 kOhms @ 10 MHz	51 µH @ 100 kHz	200mA	700mOhm	80V	-	-55°C ~ 150°C	-	-	-	-	-
ACT45B-110-2P-TL003 CMC 11UH 250MA 2LN 600OHM SMD TDK Corporation	40,499	-	RFQ	Datasheet	Horizontal, 4 PC Pad	Signal Line	2	600 Ohms @ 10 MHz	11 µH @ 100 kHz	250mA	600mOhm	50V	-	-40°C ~ 150°C	-	-	-	-	-

Common Mode Chokes FAQ

What Common Mode Chokes components can I source from EGOO?

You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
