Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

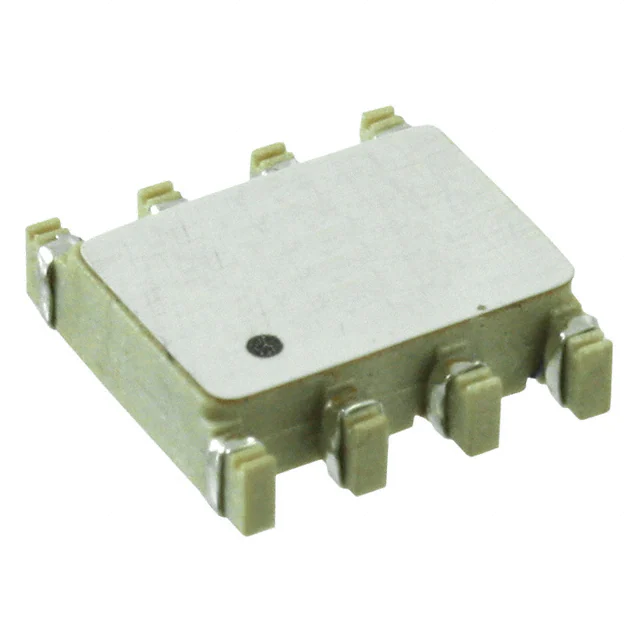

PE-65854NLTCMC 4LN SMD |
2,731 | - |
|
Datasheet | Vertical, 8 Flat Lead | Signal Line | 4 | - | - | - | 400mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
PA5141.505NLTCMC 18A 2LN 1.95K OHM SMD |
155 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1.95 kOhms @ 1.96 MHz | - | 18A | 4.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
HCTC-1-10CMC 1MH 10A 2LN TH |
3,352 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
SCR-050-0R9A070JCMC 7MH 5A 2LN TH |
5,436 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 5A | 47mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
CMS3-8-RCMC 350UH 2A 2LN SMD |
342 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 350 µH @ 100 kHz | 2A | 40mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
|
CMS3-9-RCMC 400UH 1.7A 2LN SMD |
1,748 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 400 µH @ 100 kHz | 1.7A | 53mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
7448229004CMC 350UH 8.5A 2LN TH |
1,308 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 350 µH @ 100 kHz | 8.5A | 7mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
7448251201CMC 1MH 12A 2LN TH |
1,162 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 12A | 9mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-10-100CMC 1MH 10A 2LN TH |
1,069 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 10A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
7448225007CMC 700UH 5A 2LN TH |
765 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 5A | 15mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744825320CMC 20MH 3A 2LN TH |
119 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 3A | 160mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448226404CMC 350UH 8.5A 2LN TH |
104 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 350 µH @ 100 kHz | 8.5A | 7mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
T60405R6123X210CMC 2.96MH 10A 2LN 3.2K OHM TH |
3,037 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 3.2 kOhms @ 100 kHz | 2.96 mH @ 100 kHz | 10A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
7446632002CMC 2.2MH 2.75A 2LN SMD |
688 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2.75A | 100mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446632001CMC 1MH 3A 2LN SMD |
288 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 1 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446631007CMC 6.8MH 1.4A 2LN SMD |
251 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.4A | 300mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMS3-6-RCMC 217UH 2.85A 2LN SMD |
441 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 217 µH @ 100 kHz | 2.85A | 20mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
744825605CMC 5MH 6A 2LN TH |
730 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 6A | - | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
S14100039CMC 285UH 25A 2LN TH |
1,387 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 285 µH @ 10 kHz | 25A | 1.6mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
TCK-076CMC 55UH 5.7A 2LN TH |
154 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 55 µH @ 100 kHz | 5.7A | 8.5mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
