Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

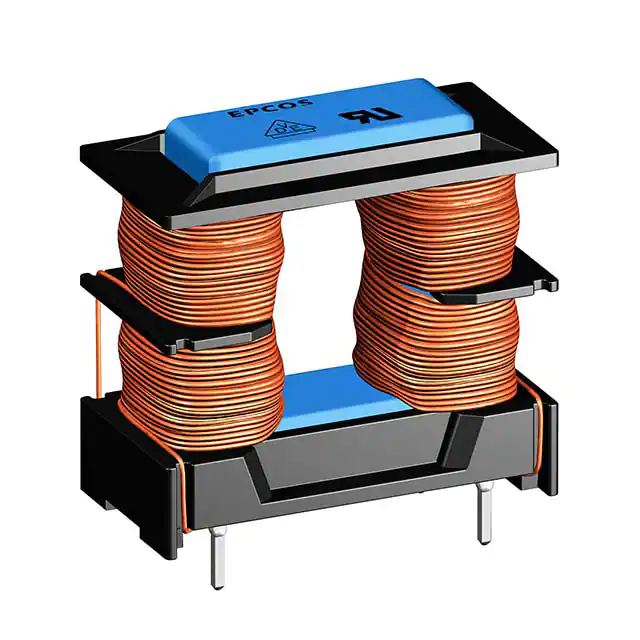

B82733V2142B001CMC 27MH 1.4A 2LN TH |
450 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 440mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

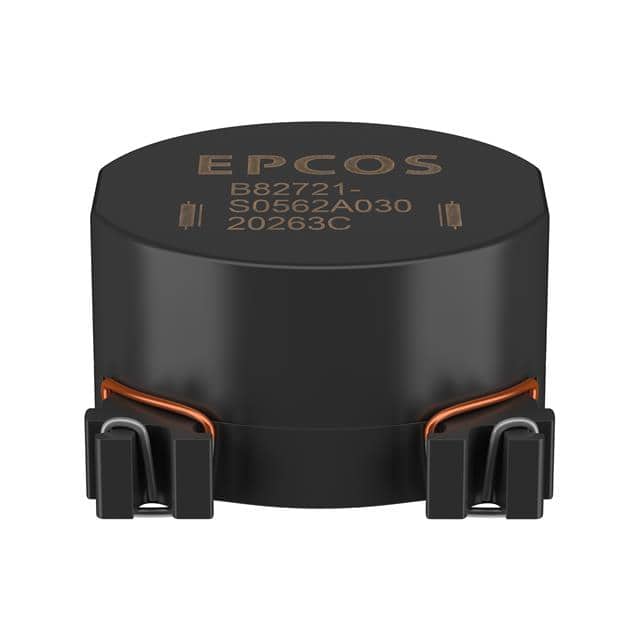

B82721S0322A020CMC 1.32MH 3.2A 2LN SMD |
276 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 1.32 mH @ 10 kHz | 3.2A | 50mOhm | 80V | 48V | - | - | - | - | - | - |
|

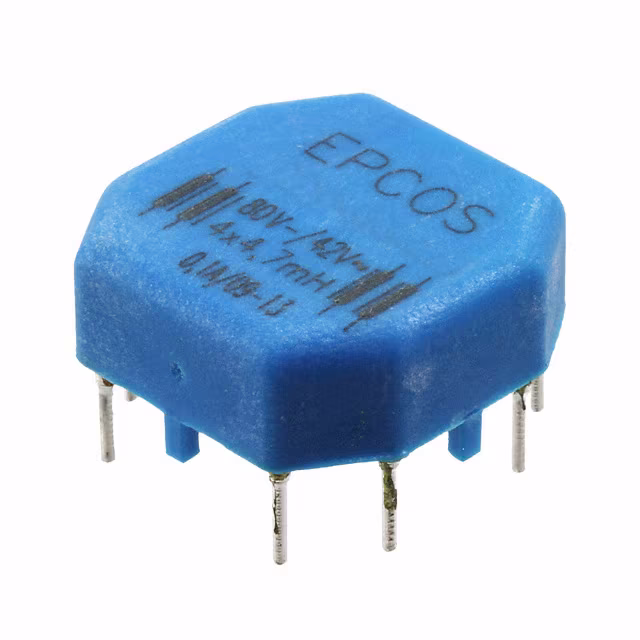

B82791G0014A016CMC 4.7MH 100MA 4LN TH |
320 | - |
|
Datasheet | Horizontal, 8 PC Pin | Signal Line | 4 | - | 4.7 mH @ 10 kHz | 100mA | 850mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

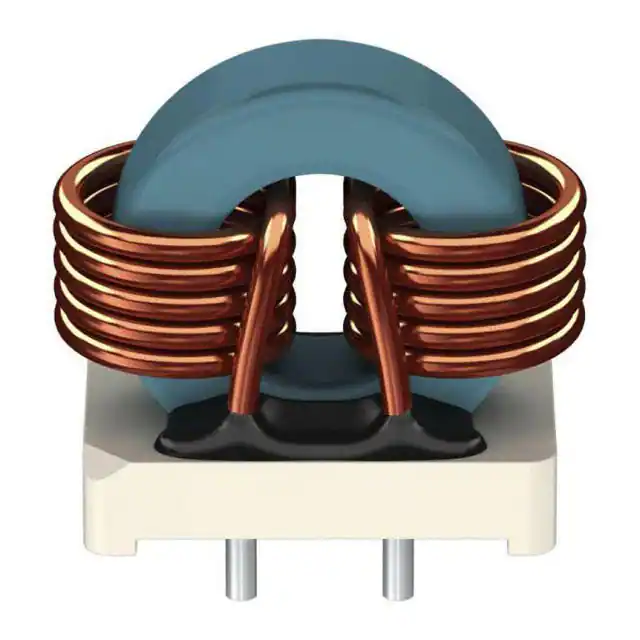

B82622S0173L030CMC 2.1UH 30A 2LN TH |
4,027 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.1 µH @ 100 kHz | 30A | 2.8mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
B82792C0106N365CMC 10MH 500MA 2LN SMD |
2,988 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 2 | - | 10 mH @ 10 kHz | 500mA | 1.1Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82792C2474N315CMC 470UH 600MA 4LN SMD |
875 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 4 | - | 470 µH @ 100 kHz | 600mA | 220mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82792C0336N365CMC 33MH 100MA 2LN SMD |
930 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 2 | - | 33 mH @ 10 kHz | 100mA | 2Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82724J8432N040CMC 6.8MH 4.3A 2LN TH |
230 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 4.3A | 40mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82724J2502U040CMC 5.3MH 5A TH |
282 | - |
|
Datasheet | Vertical, 4 PC Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B82722S0193A041CMC 160UH 19A 2LN SMD |
768 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 160 µH @ 100 kHz | 19A | 2.5mOhm | 80V | 48V | - | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
