Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82723A2402N001CMC 2.7MH 4A 2LN TH |
839 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 4A | 60mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82720H0014A025CMC 10MH 200MA 4LN TH |
109 | - |
|
Datasheet | Vertical, 8 PC Pin | Signal Line | 4 | - | 10 mH @ 10 kHz | 200mA | 1.3Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | UL | - | - | - |
|
B82721S0572A040CMC 1.18MH 5.7A 2LN SMD |
684 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 1.18 mH @ 10 kHz | 5.7A | 17mOhm | 80V | 48V | - | - | - | - | - | - |
|
|
B82721S0572A020CMC 590UH 5.7A 2LN SMD |
198 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 590 µH @ 100 kHz | 5.7A | 17mOhm | 80V | 48V | - | - | - | - | - | - |
|
B82791H0015A025CMC 10MH 100MA 2LN TH |
243 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | 10 mH @ 10 kHz | 100mA | 1.2Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

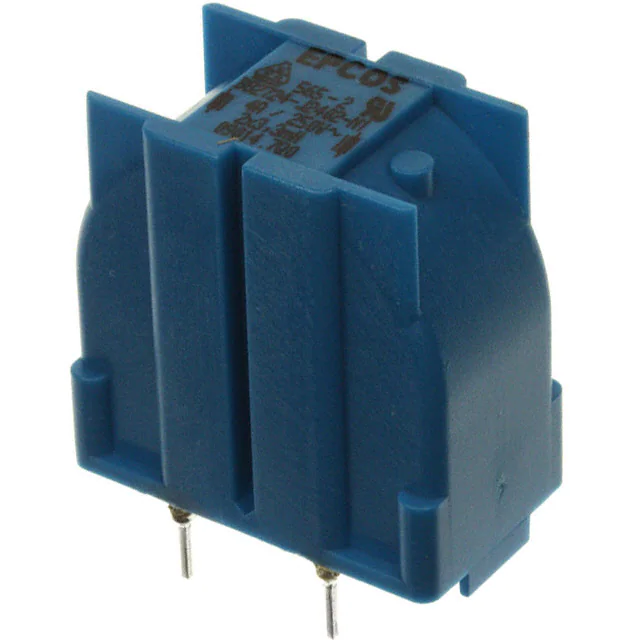

B82724J2402N001CMC 3.3MH 4A 2LN TH |
653 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82723A2602N001CMC 1MH 6A 2LN TH |
3,522 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 6A | 22mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82724J2602N041CMC 3.3MH 6A 2LN TH |
1,471 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 6A | 25mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82724J8162N040CMC 47MH 1.6A 2LN TH |
518 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 1.6A | - | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

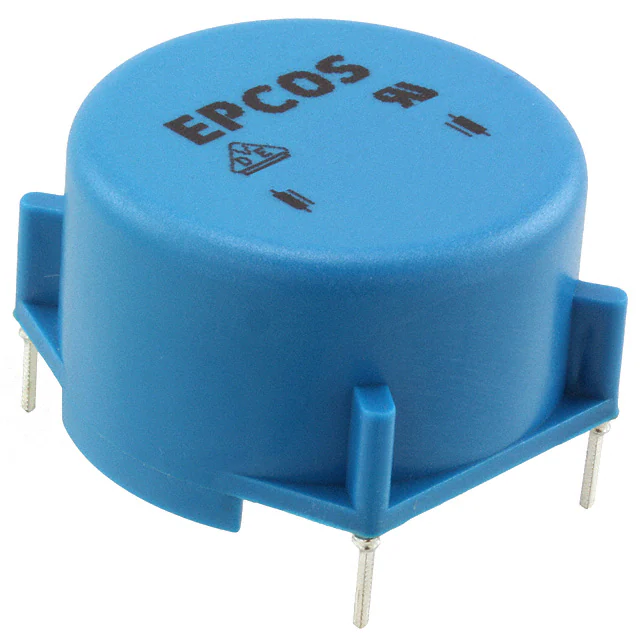

B82724A2142N001CMC 27MH 1.4A 2LN TH |
2,079 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 460mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
