Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

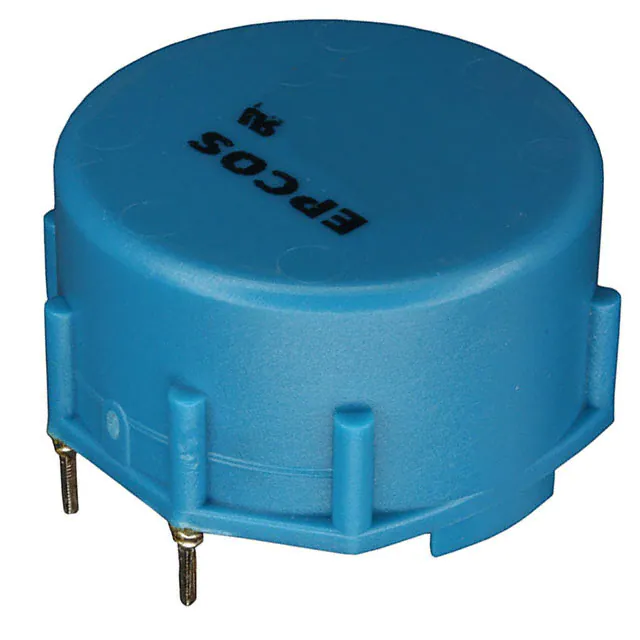

B82725A2103N001CMC 1.8MH 10A 2LN TH |
409 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 10A | 14mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

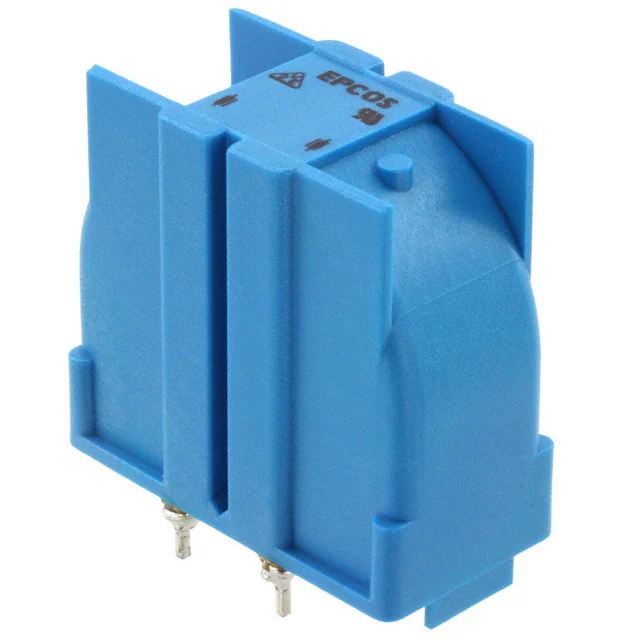

B82725J2802N020CMC 3.9MH 8A 2LN TH |
828 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 8A | 31mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82725A2402N001CMC 6.8MH 4A 2LN TH |
426 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 4A | 80mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82725A2802N001CMC 2.7MH 8A 2LN TH |
222 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 8A | 22mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82724V2103U040CMC 3.3MH 10A 2LN TH |
168 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 10A | 9.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82615B2302M001CMC 2.5MH 3A 2LN TH PFC |
207 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 3A | 400mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | - | PFC | - | - |
|
B82745S6123N002CMC 350UH 12A 3LN TH |
320 | - |
|
Datasheet | Vertical, 6 Flat Lead | Power Line | 3 | - | 350 µH @ 100 kHz | 12A | 3.7mOhm (Typ) | - | 440/250V | -40°C ~ 125°C | - | - | - | - | - |
|

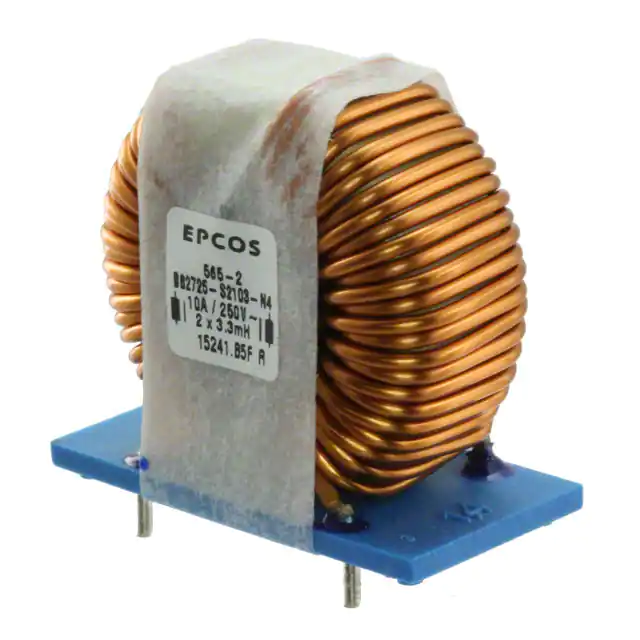

B82725S2103N004CMC 3.3MH 10A 2LN TH |
417 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 10A | 13.5mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82727E6223A040CMC 3.3MH 22A 2LN TH |
273 | - |
|
Datasheet | Vertical, 8 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 22A | 4.6mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|
|
B82726S3543N040CMC 190UH 54A 2LN TH |
117 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 190 µH @ 100 kHz | 54A | 1.1mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
