Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82793C0105N265CMC 1MH 700MA 2LN SMD AEC-Q200 |
14,030 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 1 mH @ 100 kHz | 700mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82720A2202N040CMC 1.1MH 2A 2LN TH |
1,156 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82732F2601B001CMC 68MH 600MA 2LN TH |
527 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 600mA | 1.97Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82731M2701A030CMC 27MH 700MA 2LN TH |
7,090 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 700mA | 1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82734R2172B030CMC 27MH 1.7A 2LN TH |
5,993 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.7A | 320mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

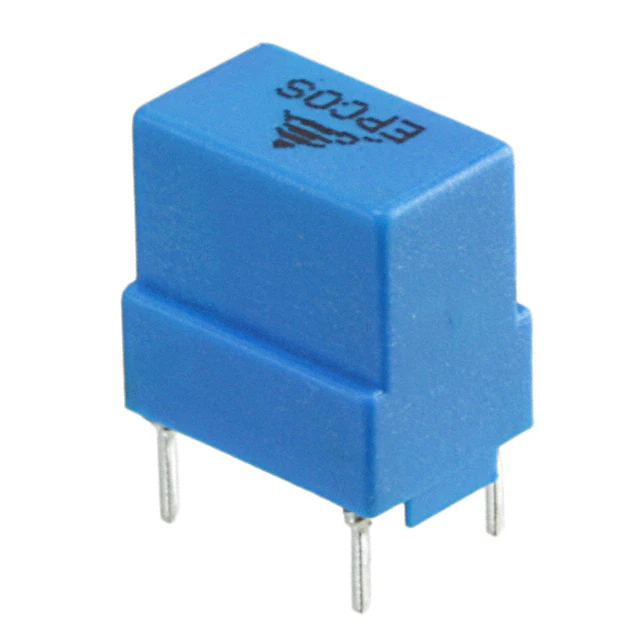

B82720K2102N040CMC 3MH 1A 2LN TH |
2,118 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 1A | 220mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82720K2202N040CMC 1.1MH 2A 2LN TH |
163 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82721K2701N020CMC 10MH 700MA 2LN TH |
6,992 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 700mA | 550mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82721K2122N020CMC 6.8MH 1.2A 2LN TH |
3,313 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.2A | 280mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

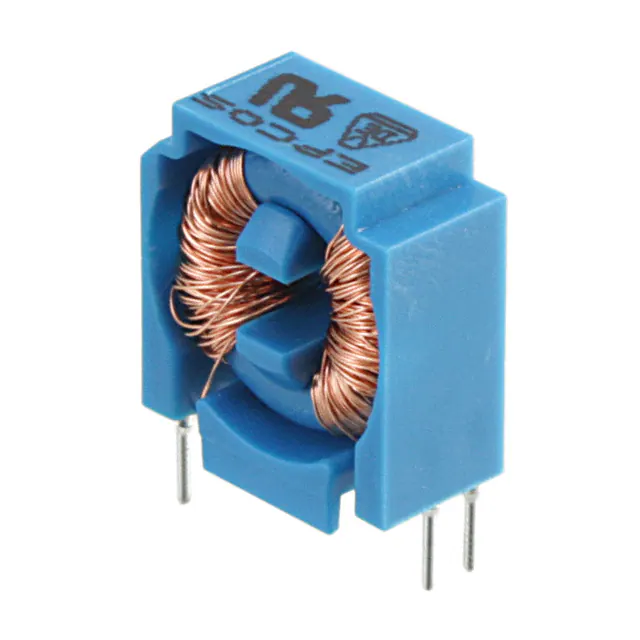

B82791H2251N020CMC 47MH 250MA 2LN TH |
18,964 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 250mA | 2.4Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
