Current Sense Transformers
Browse available Current Sense Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7020-01036-0CURR SENSE XFMR 5A IN-LINE |
2,163 | - |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 50:5 | - | - | Free Hanging (In-Line) | 2.701" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
7020-01038-0CURR SENSE XFMR 5A IN-LINE |
4,932 | - |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 100:5 | - | - | Free Hanging (In-Line) | 2.701" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
7020-01040-0CURR SENSE XFMR 5A IN-LINE |
1,171 | - |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 200:5 | - | - | Free Hanging (In-Line) | 2.701" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
39-3681409CURR SENSE XFMR IN-LINE |
2,059 | - |
|
Datasheet | DMS | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | 1.560" Dia (39.60mm) | 1.098" (27.90mm) | Wire Leads |
|
B82801A0214A050CURR SENSE XFMR 1:50 SMD |
1,783 | - |
|
Datasheet | B82801A | Tape & Reel (TR) | Obsolete | 50kHz ~ 1MHz | Invasive | - | 205 µH | - | 1:50 | - | 2.5mOhm Primary, 2.2Ohm Secondary | - | Surface Mount | 0.138" L x 0.185" W (3.50mm x 4.70mm) | 0.138" (3.50mm) | J Lead |
|
|
B82801A0824A100CURR SENSE XFMR 1:100 SMD |
1,738 | - |
|
Datasheet | B82801A | Tape & Reel (TR) | Obsolete | 50kHz ~ 1MHz | Invasive | - | 820 µH | - | 1:100 | - | 2.5mOhm Primary, 8.7Ohm Secondary | - | Surface Mount | 0.138" L x 0.185" W (3.50mm x 4.70mm) | 0.138" (3.50mm) | J Lead |
|
|
B82801A0135A125CURR SENSE XFMR 1:125 SMD |
2,341 | - |
|
Datasheet | B82801A | Tape & Reel (TR) | Obsolete | 50kHz ~ 1MHz | Invasive | - | 1.28 mH | - | 1:125 | - | 2.5mOhm Primary, 13Ohm Secondary | - | Surface Mount | 0.138" L x 0.185" W (3.50mm x 4.70mm) | 0.138" (3.50mm) | J Lead |
|
PE-63618NLCURR SENSE XFMR 20A T/H |
1,490 | - |
|
Datasheet | THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 20 mH | - | - | 100CT:1 | 100Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-63691NLCURR SENSE XFMR 20A T/H |
3,428 | - |
|
Datasheet | THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 180 mH | - | - | 300CT:1 | 300Ohm Primary, 11Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-63586NLCURR SENSE XFMR 20A T/H |
3,672 | - |
|
Datasheet | THT | Tray | Obsolete | 20kHz ~ 200kHz | Invasive | 20 A | 5 mH | - | - | 50:1 | 50Ohm Primary, 700mOhm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
PB0025NLTCURR SENSE XFMR 50:1 35A SMD |
3,077 | - |
|
Datasheet | PB002XNL | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | 35 A | 1.4 mH | - | 50:1 | - | 0.42mOhm Primary, 700mOhm Secondary | - | Surface Mount | 0.591" L x 0.784" W (15.00mm x 19.91mm) | 0.394" (10.00mm) | Gull Wing |
|
|
B82801A0404A070CURR SENSE XFMR 1:70 7A SMD |
3,369 | - |
|
Datasheet | B82801A | Tape & Reel (TR) | Obsolete | 50kHz ~ 1MHz | Invasive | 7 A | 400 µH | 20VµS | 1:70 | - | 2.5mOhm Primary, 4.6Ohm Secondary | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
P8205CURR SENSE XFMR 1:50 SMD |
2,614 | - |
|
Datasheet | P820X | Tray | Obsolete | 50kHz ~ 1MHz | Invasive | - | - | - | 1:50 | - | 6mOhm | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | - |
|
|
PB0026CURR SENSE XFMR 100:1 35A SMD |
1,962 | - |
|
Datasheet | - | Tray | Obsolete | 50kHz ~ 500kHz | Invasive | 35 A | 5.6 mH | - | 100:1 | - | 2.8mOhm Primary, 1.4Ohm Secondary | - | Surface Mount | 0.784" L x 0.570" W (19.91mm x 14.48mm) | 0.394" (10.00mm) | Gull Wing |
|

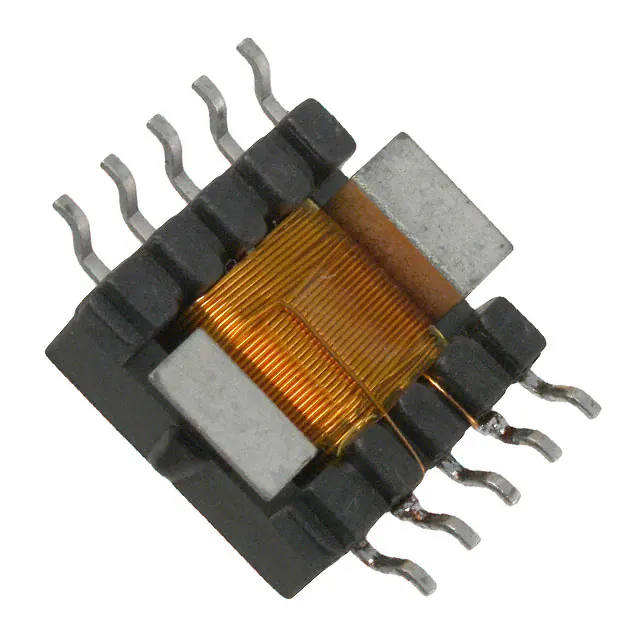

PB0027CURR SENSE XFMR 200:1 35A SMD |
4,970 | - |
|
Datasheet | - | Tray | Obsolete | 50kHz ~ 500kHz | Invasive | 35 A | 22.4 mH | - | 200:1 | - | 2.8mOhm Primary, 2.9Ohm Secondary | - | Surface Mount | 0.784" L x 0.570" W (19.91mm x 14.48mm) | 0.394" (10.00mm) | Gull Wing |
|
|
PE-51686CURR SENSE XFMR 20A T/H |
1,964 | - |
|
Datasheet | - | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 5 mH | - | - | 50:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-51687CURR SENSE XFMR 20A T/H |
1,909 | - |
|
Datasheet | - | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 20 mH | - | - | 100:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
PE-51688FIXED IND 80MH TH |
2,656 | - |
|
Datasheet | - | Tray | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 80 mH | - | - | - | - | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|
|
PE-51718CURR SENSE XFMR 20A T/H |
2,554 | - |
|
Datasheet | - | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 20 mH | - | - | 100CT:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-51719CURR SENSE XFMR 20A T/H |
3,803 | - |
|
Datasheet | - | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 80 mH | - | - | 200CT:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
Current Sense Transformers FAQ
What Current Sense Transformers components can I source from EGOO?
You can browse available Current Sense Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Current Sense Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
