Current Sense Transformers
Browse available Current Sense Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-63586CURR SENSE XFMR 20A T/H |
2,352 | - |
|
Datasheet | - | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 5 mH | - | - | 50:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-63588CURR SENSE XFMR 20A T/H |
3,352 | - |
|
Datasheet | - | Tray | Obsolete | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | 20 A | 80 mH | - | - | 200:1 | - | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
PE-67050CURR SENSE XFMR 35A T/H |
4,705 | - |
|
Datasheet | - | Tray | Obsolete | 10kHz ~ 200kHz | Invasive | 35 A | 5 mH | - | - | 50:1 | 700mOhm Secondary Max | - | Through Hole | 0.750" L x 0.565" W (19.05mm x 14.35mm) | 0.750" (19.05mm) | PC Pin |
|
|
PE-67100CURR SENSE XFMR 37A T/H |
4,471 | - |
|
Datasheet | - | Tray | Obsolete | 10kHz ~ 200kHz | Invasive | 37 A | 20 mH | - | - | 100:1 | 1.4Ohm Secondary Max | - | Through Hole | 0.750" L x 0.565" W (19.05mm x 14.35mm) | 0.750" (19.05mm) | PC Pin |
|
|
PE-67200CURR SENSE XFMR 38A T/H |
3,239 | - |
|
Datasheet | - | Tray | Active | 10kHz ~ 200kHz | Invasive | 38 A | 80 mH | - | - | 200:1 | 4.5Ohm Secondary Max | - | Through Hole | 0.750" L x 0.565" W (19.05mm x 14.35mm) | 0.750" (19.05mm) | PC Pin |
|
PE-68280CURR SENSE XFMR 1:1:100 15A SMD |
1,781 | - |
|
Datasheet | - | Tube | Active | 50kHz ~ 500kHz | Invasive | 15 A | 14.8 mH | - | 1:1:100 | - | 1.15mOhm Primary, 930mOhm Secondary | - | Surface Mount | 0.495" L x 0.490" W (12.57mm x 12.45mm) | 0.280" (7.11mm) | - |
|

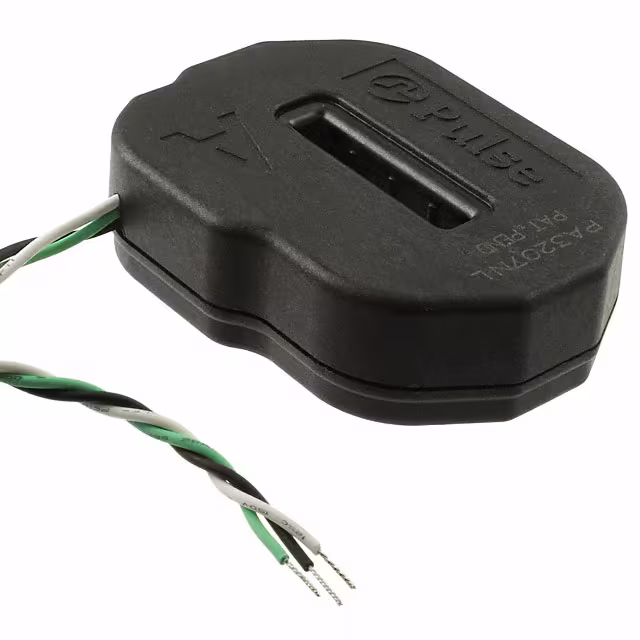

PA3207NLCURR XFMR ROGOWSKI 200A CHAS |
2,189 | - |
|
Datasheet | Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 200 A | 1.86 mH | - | Rogowski Coil | - | 66Ohm Max | - | Chassis Mount | 1.437" L x 1.913" W (36.50mm x 48.60mm) | 0.559" (14.20mm) | Wire Leads |
|
|
H1300NLCURR SENSE XFMR 1.414CT:1 SMD |
4,605 | - |
|
Datasheet | - | Bulk | Active | - | Invasive | - | 350 µH | - | 1.414CT:1 | - | 65mOhm Secondary Max | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | Gull Wing |
|
|
H1300NLTCURR SENSE XFMR 1.414CT:1 SMD |
3,456 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | Invasive | - | 350 µH | - | 1.414CT:1 | - | 65mOhm Secondary Max | - | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | Gull Wing |
|
C-CT-6CURR SENSE XFMR 30A IN-LINE |
2,464 | - |
|
Datasheet | C-CT | Bulk | Obsolete | 10Hz ~ 5kHz | Non-Invasive (Split Core) | 30 A | - | - | - | 3000:1 | - | - | Free Hanging (In-Line) | 0.760" L x 1.039" W (19.30mm x 26.40mm) | 1.220" (31.00mm) | Wire Leads |
|
C-CT-10CURR SENSE XFMR 60A IN-LINE |
4,955 | - |
|
Datasheet | C-CT | Bulk | Obsolete | 10Hz ~ 5kHz | Non-Invasive (Split Core) | 60 A | - | - | - | 3000:1 | - | - | Free Hanging (In-Line) | 1.039" L x 1.004" W (26.40mm x 25.50mm) | 1.705" (43.30mm) | Wire Leads |
|
C-CT-16CURR SENSE XFMR 100A IN-LINE |
4,382 | - |
|
Datasheet | C-CT | Bulk | Obsolete | 10Hz ~ 5kHz | Non-Invasive (Split Core) | 100 A | - | - | - | 3000:1 | - | - | Free Hanging (In-Line) | 1.280" L x 1.201" W (32.50mm x 30.50mm) | 1.819" (46.20mm) | Wire Leads |
|
C-CT-24CURR SENSE XFMR 200A IN-LINE |
2,044 | - |
|
Datasheet | C-CT | Bulk | Obsolete | 10Hz ~ 5kHz | Non-Invasive (Split Core) | 200 A | - | - | - | 3000:1 | - | - | Free Hanging (In-Line) | 1.906" L x 1.398" W (48.40mm x 35.50mm) | 2.740" (69.60mm) | Wire Leads |
|
7020-01037-0CURR SENSE XFMR 5A IN-LINE |
4,076 | - |
|
Datasheet | - | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 75:5 | - | - | Free Hanging (In-Line) | 2.700" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
|
7020-01039-0CURR SENSE XFMR 5A IN-LINE |
1,250 | - |
|
Datasheet | - | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 150:5 | - | - | Free Hanging (In-Line) | 2.700" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
|
7020-01041-0CURR SENSE XFMR 5A IN-LINE |
1,023 | - |
|
Datasheet | - | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 250:5 | - | - | Free Hanging (In-Line) | 2.700" Dia (68.60mm) | 1.402" (35.60mm) | Wire Leads |
|
|
7020-01043-0CURR SENSE XFMR 5A IN-LINE |
4,366 | - |
|
Datasheet | - | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 750:5 | - | - | Free Hanging (In-Line) | 1.130" Dia (28.70mm) | 4.500" (114.30mm) | Wire Leads |
|
|
7020-01044-0CURR SENSE XFMR 5A IN-LINE |
1,758 | - |
|
Datasheet | - | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 1000:5 | - | - | Free Hanging (In-Line) | 1.130" Dia (28.70mm) | 4.500" (114.30mm) | Wire Leads |
|
|
7020-01045-0CURR SENSE XFMR 5A IN-LINE |
2,696 | - |
|
Datasheet | - | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 1500:5 | - | - | Free Hanging (In-Line) | 1.130" Dia (28.70mm) | 4.500" (114.30mm) | Wire Leads |
|
|
7020-01046-0CURR SENSE XFMR 5A IN-LINE |
3,205 | - |
|
Datasheet | - | Bulk | Obsolete | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 2000:5 | - | - | Free Hanging (In-Line) | 1.130" Dia (28.70mm) | 4.500" (114.30mm) | Wire Leads |
