DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX17536EVKITA#EVAL BOARD FOR MAX17536 |
4,376 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 6.5V ~ 60V | Buck | 450kHz | Board(s) | MAX17536 |
|
MAX17631C5EVKIT#EVAL BOARD FOR MAX17631 |
1,616 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 6.5V ~ 36V | Buck | 400kHz | Board(s) | MAX17631 |
|

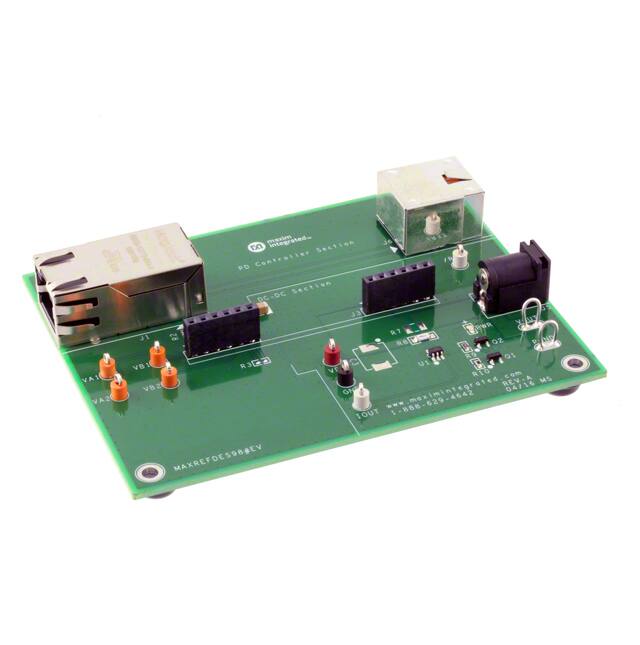

MAXREFDES98EV#EVAL BOARD FOR MAX5969A MAX17503 |
1,339 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | 12.5 W | 5V | 2.5A | 36V ~ 57V | Buck | 300kHz | Partially Populated Board(s) - Main IC/Module/Part Not Included | MAX5969A, MAX17503 |
|
MAX15005AEVKIT+EVAL BOARD FOR MAX15005A |
3,444 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 3 Isolated Outputs | - | 3V, 60V, 110V | 650mA, 55mA, 12mA | 6.5V ~ 16V | Flyback | 100kHz | Board(s) | MAX15005A |
|

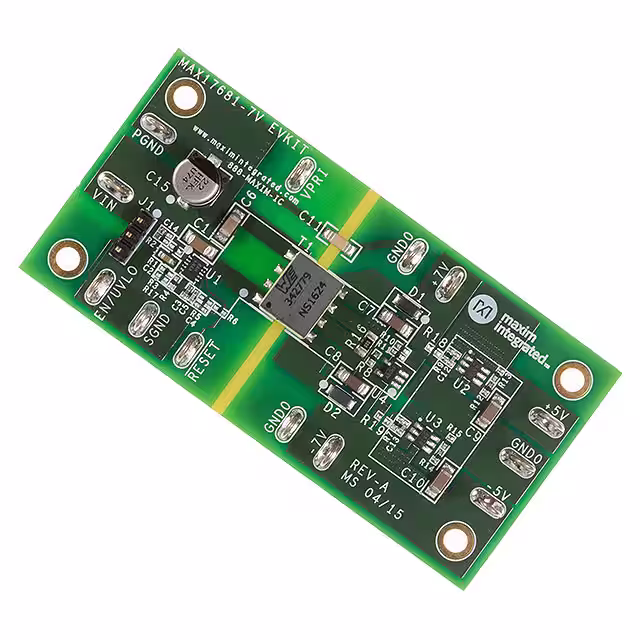

MAX17681EVKITB#EVAL BOARD 750342779 MAX17681 |
4,657 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | ±7V | 100mA | 17V ~ 36V | Buck | 200kHz | Board(s) | 750342779, MAX17681 |
|

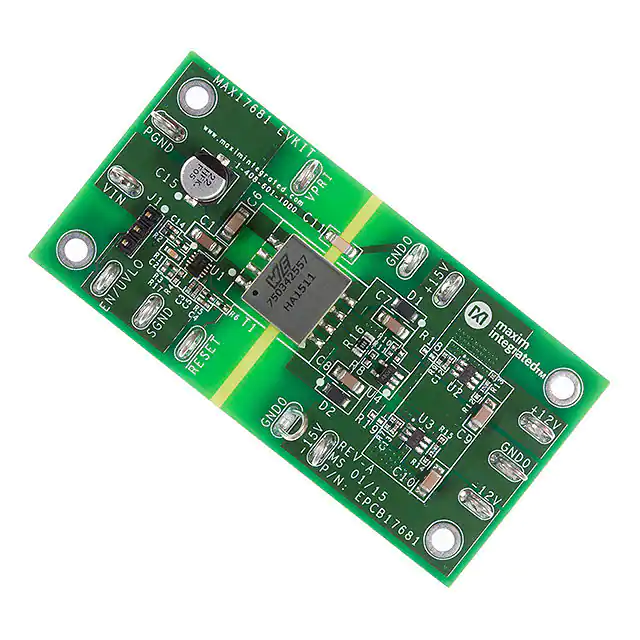

MAX17681EVKIT#EVAL BOARD 750342557 MAX17681 |
3,247 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | ±15V | 100mA | 17V ~ 32V | Buck | 200kHz | Board(s) | 750342557, MAX17681 |
|
MAX15020EVKIT+EVAL BOARD FOR MAX15020 |
4,818 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 30V | 2A | 7.5V ~ 40V | Buck | - | Board(s) | MAX15020 |
|

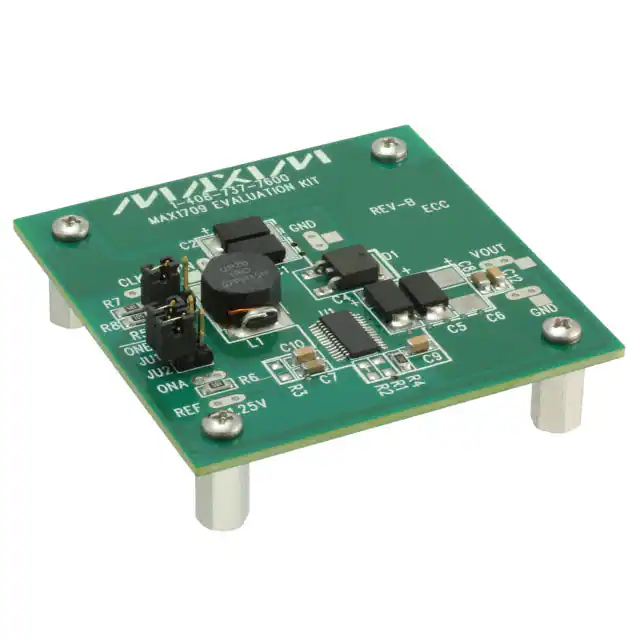

MAX1709EVKITEVAL BOARD FOR MAX1709 |
2,488 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 4A | - | Boost | 600kHz | Board(s) | MAX1709 |
|

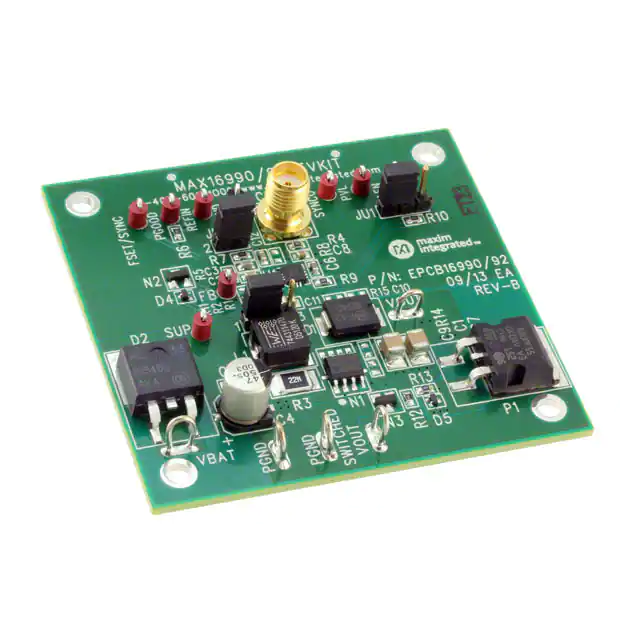

MAX16990EVKIT#EVAL BOARD FOR MAX16990 |
3,698 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 8V | 2A | 4.5V ~ 36V | Boost | 400kHz | Board(s) | MAX16990 |
|
MAX22258EVKIT#EVAL BOARD FOR MAX22258 |
1,487 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | - | 24V | 200mA | 5V ~ 36V | - | - | Board(s) | MAX22258 |
