DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

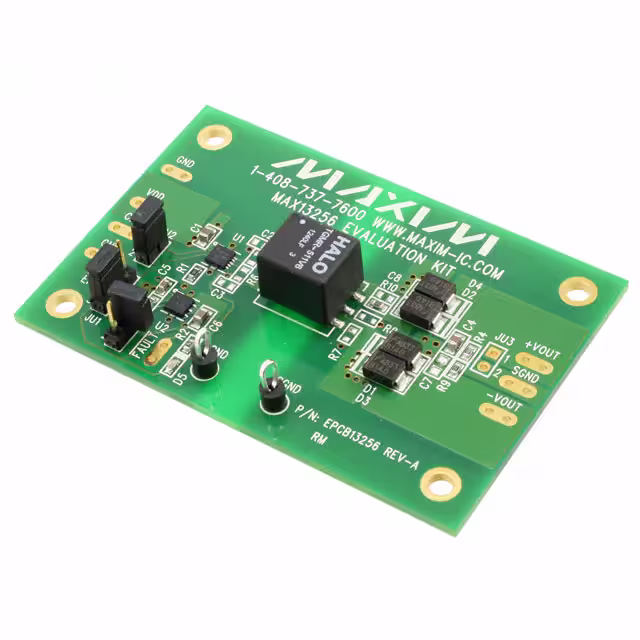

MAX13256EVKIT#EVAL BOARD FOR MAX13256 |
4,263 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 6.8V ~ 34.8V | 300mA | 8V ~ 36V | Full-Bridge | 425kHz | Board(s) | MAX13256 |
|

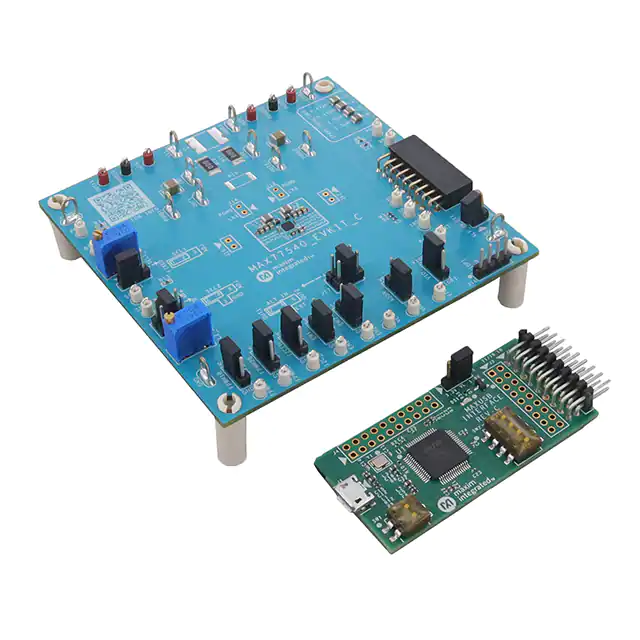

MAX77540EVKIT#EVAL BOARD FOR MAX77540 |
4,648 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4V ~ 16V | Buck | 1MHz | Board(s), Accessories | MAX77540 |
|

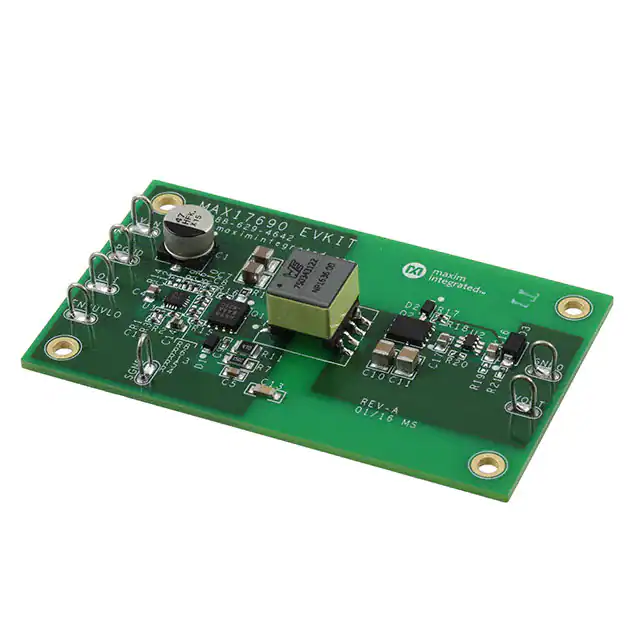

MAX17690EVKITA#EVAL BOARD FOR MAX17690 |
2,311 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Isolated Output | 5 W | 5V | 1A | 18V ~ 36V | Flyback | 150kHz | Board(s) | MAX17690 |
|

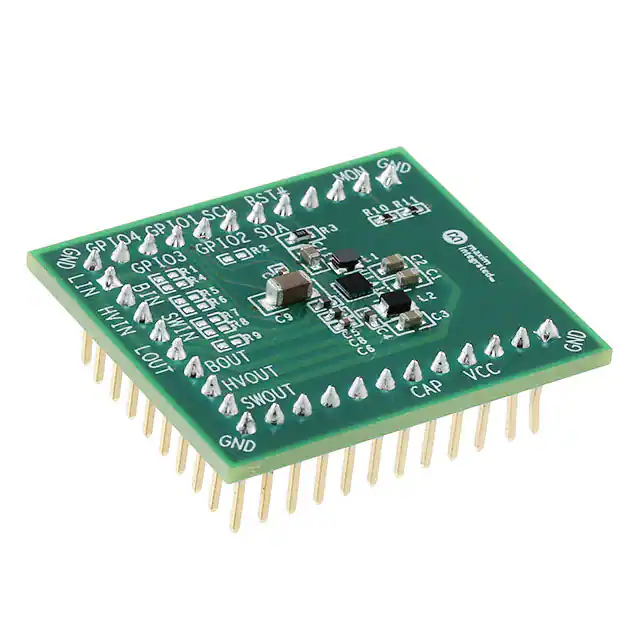

MAX14750EVKIT#EVAL BOARD FOR MAX14720 MAX14750 |
1,072 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down with LDO | 3 Non-Isolated Outputs | - | - | - | 1.8V ~ 5.5V | - | - | Board(s) | MAX14720, MAX14750 |
|

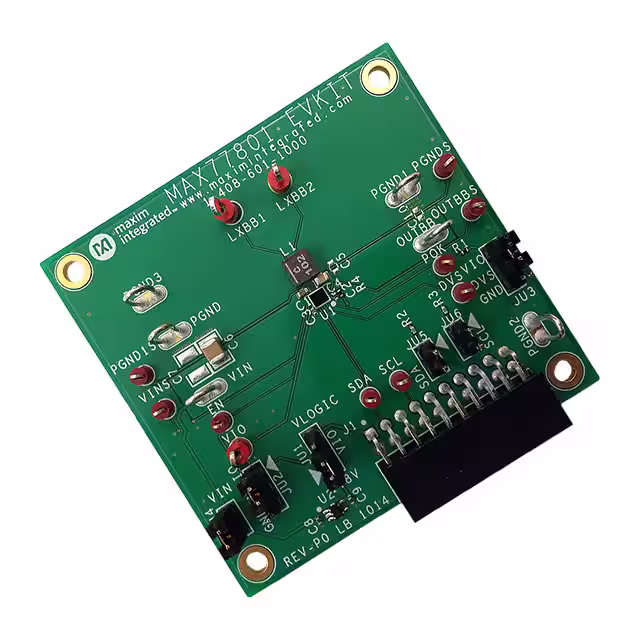

MAX77801EVKIT#EVAL BOARD FOR MAX77801 |
2,518 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.6V ~ 4.1875V | 2A | 2.3V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | MAX77801 |
|

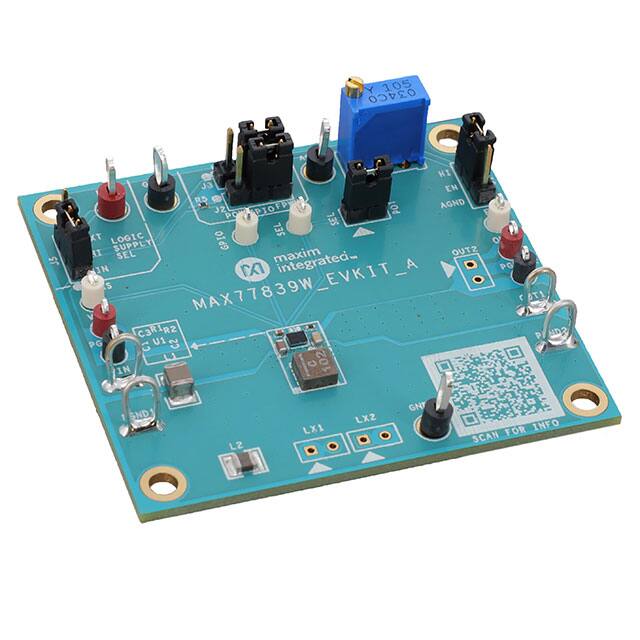

MAX77839WEVKIT#EVAL BOARD FOR MAX77839 |
3,725 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 1.8V ~ 5.5V | Buck-Boost | 2.2MHz | Board(s) | MAX77839 |
|

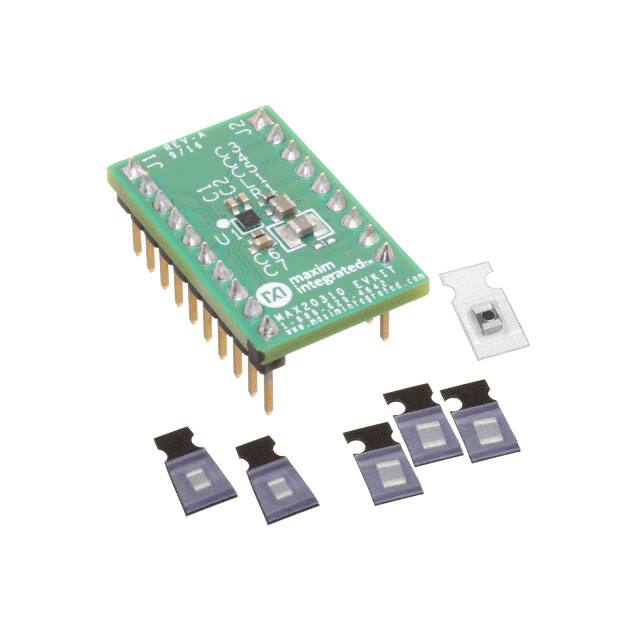

MAX20310EVKIT#EVAL BOARD FOR MAX20310 |
4,010 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down with LDO | 3 Non-Isolated Outputs | - | - | - | -0.8V ~ -2V | Buck-Boost | - | Board(s) | MAX20310 |
|
MAX8815AEVKIT+EVAL BOARD FOR MAX8815A |
3,682 | - |
|
Datasheet | True Shutdown™ | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | 5 W | 5V | 1A | 1.2V ~ 5.5V | Boost | 2MHz | Board(s) | MAX8815A |
|

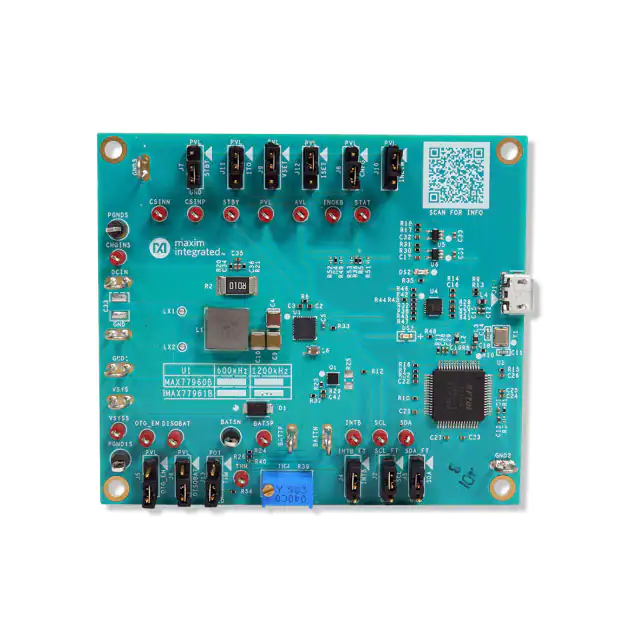

MAX77961BEVKIT12#EVAL BOARD FOR MAX77961B |
4,370 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, Charger | 1 Non-Isolated Output | - | - | 6A | 3.5V ~ 25.4V | Buck-Boost | 1.2MHz | Board(s) | MAX77961B |
|
MAX17227JEVK#WLPEVAL BOARD FOR MAX17227J |
4,339 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 300mA | 0.4V ~ 5.5V | Boost | - | Board(s) | MAX17227J |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
