DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

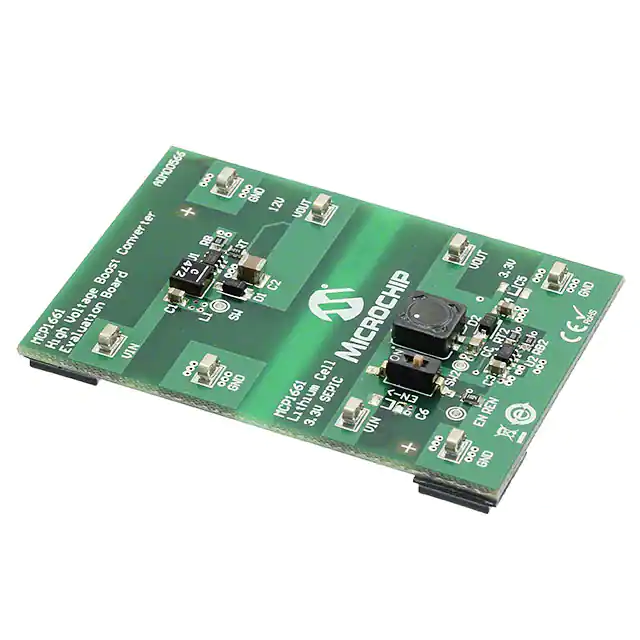

ADM00566EVAL BOARD FOR MCP1661 |
3,223 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V, 12V | 125mA | 2.4V ~ 5.5V | Boost, SEPIC | 500kHz | Board(s) | MCP1661 |
|

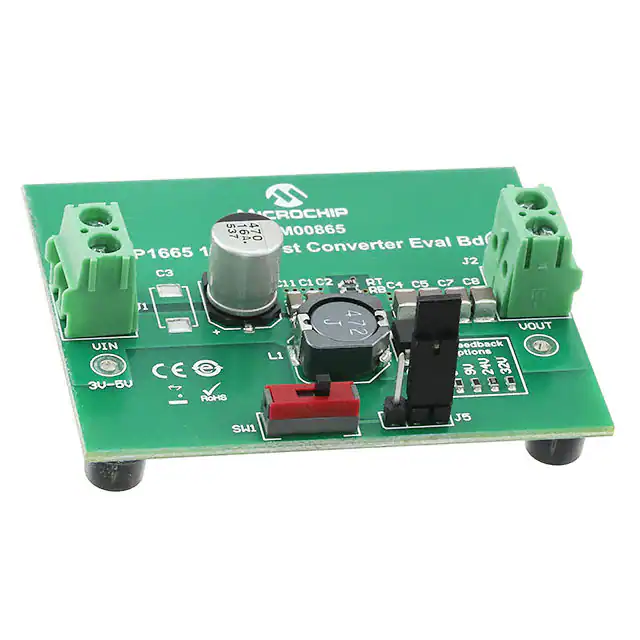

ADM00865EVAL BOARD FOR MCP1665 |
2,469 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1A | 3V ~ 5V | Boost | 500kHz | Board(s) | MCP1665 |
|

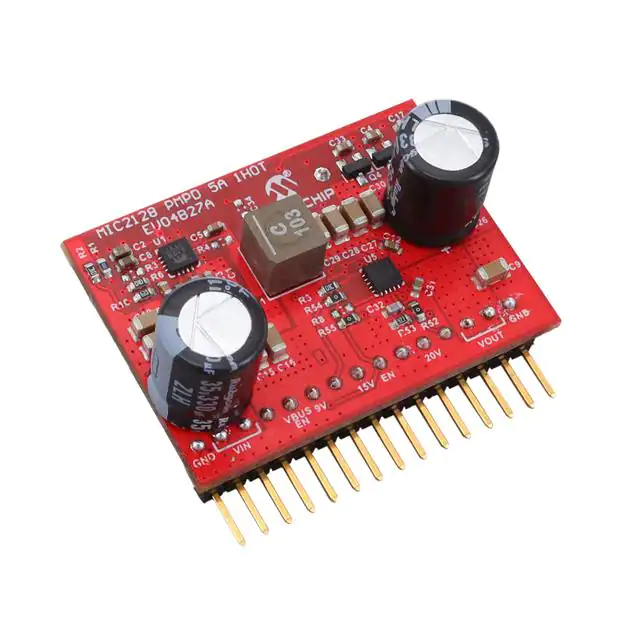

EV04B27AEVAL BOARD FOR MIC2128 UCS3205 |
4,467 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | 100 W | 5V, 9V, 15V or 20V | 5A | 24V | Buck | - | Board(s) | MIC2128, UCS3205 |
|

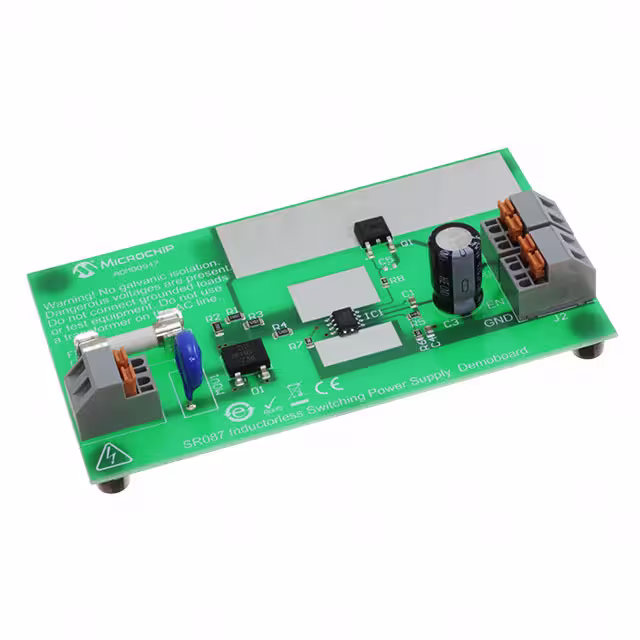

ADM00947EVAL BOARD FOR SR087 |
2,601 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side | 2 Non-Isolated Outputs | - | 5V, 12.6V | 100mA, 60mA | 90 ~ 270 VAC | - | - | Board(s) | SR087 |
|
ADM00987EVAL BOARD FOR MCP19035 |
2,584 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 5.5V | 8A | 6V ~ 16V | Buck | - | Board(s) | MCP19035 |
|

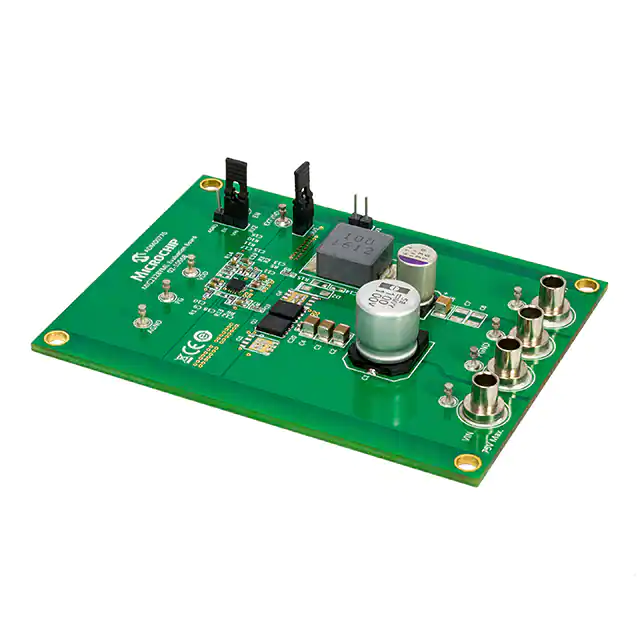

ADM00770EVAL BOARD FOR MIC2128 |
2,909 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 7V ~ 75V | Buck | 300kHz | Board(s) | MIC2128 |
|
EV27C97AEVAL BOARD FOR MCP16361 |
2,366 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4V ~ 48V | Buck | 2.2MHz | Board(s) | MCP16361 |
|

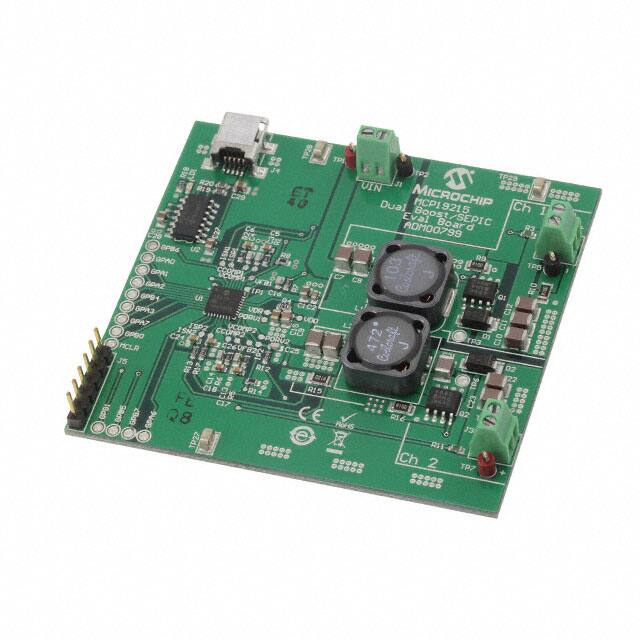

ADM00799EVAL BOARD FOR MCP19215 |
2,849 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | - | - | - | Boost | - | Board(s) | MCP19215 |
|

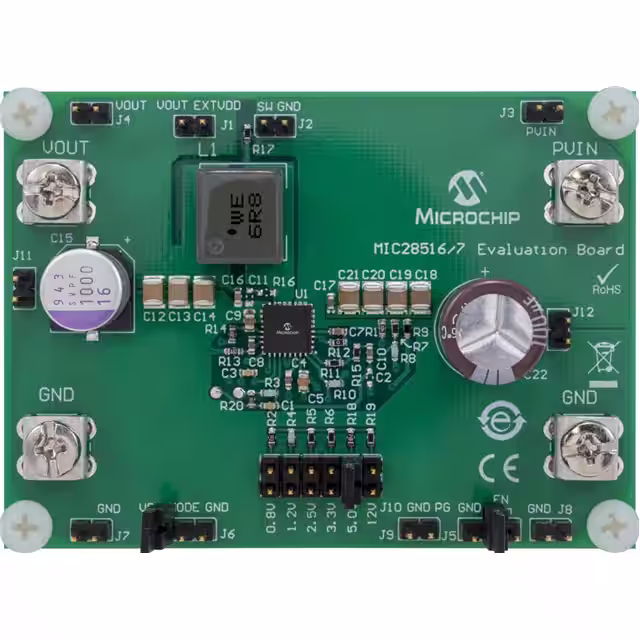

ADM00929EVAL BOARD FOR MIC28516 |
1,967 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 32V | 8A | 4.5V ~ 70V | Buck | - | Board(s) | MIC28516 |
|

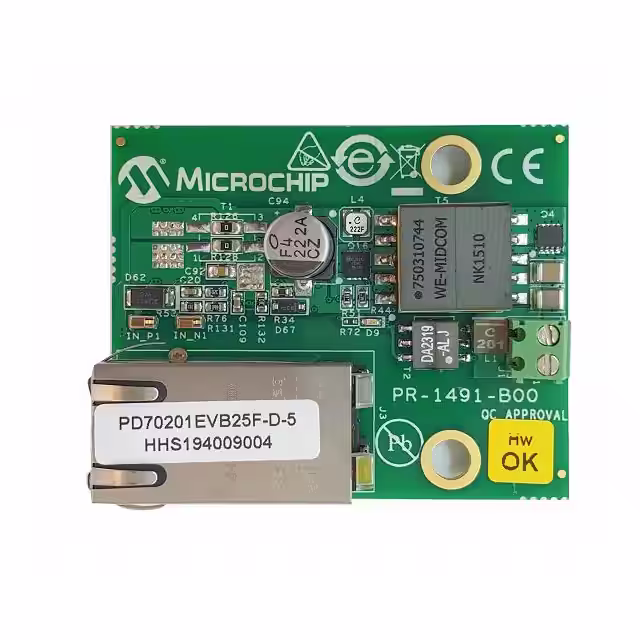

PD70201EVB25F-D-5EVAL BOARD FOR PD70201 |
1,241 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 25 W | 5V | 5A | 36V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
