DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

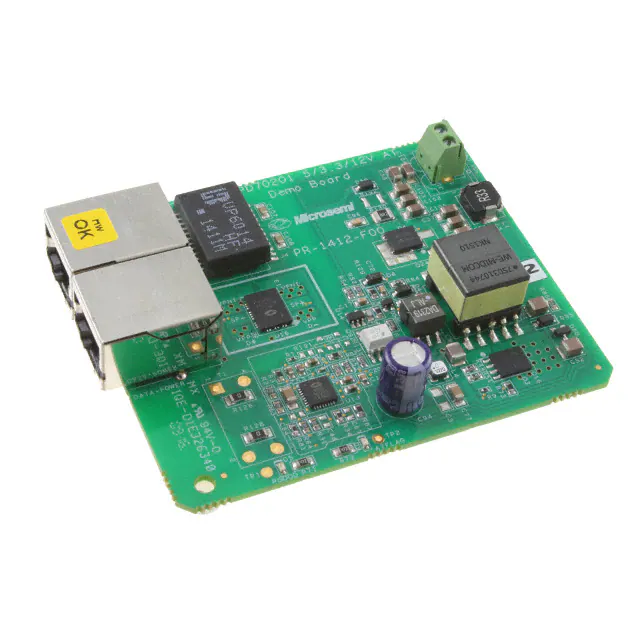

PD70201EVB25F-12EVAL BOARD FOR PD70201 |
3,650 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 25 W | 12V | 2.1A | - | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201 |
|

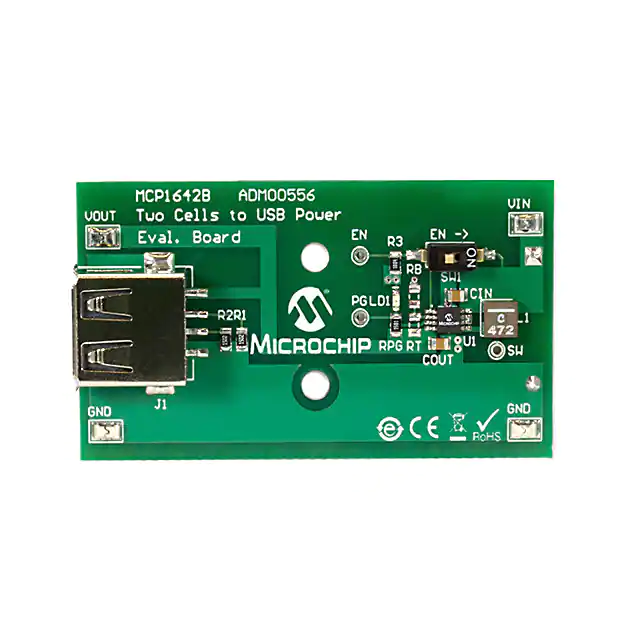

ADM00556EVAL BOARD FOR MCP1642B |
1,925 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 700mA | 1.8V ~ 5.5V | Boost | 1MHz | Board(s), Cable(s) | MCP1642B |
|

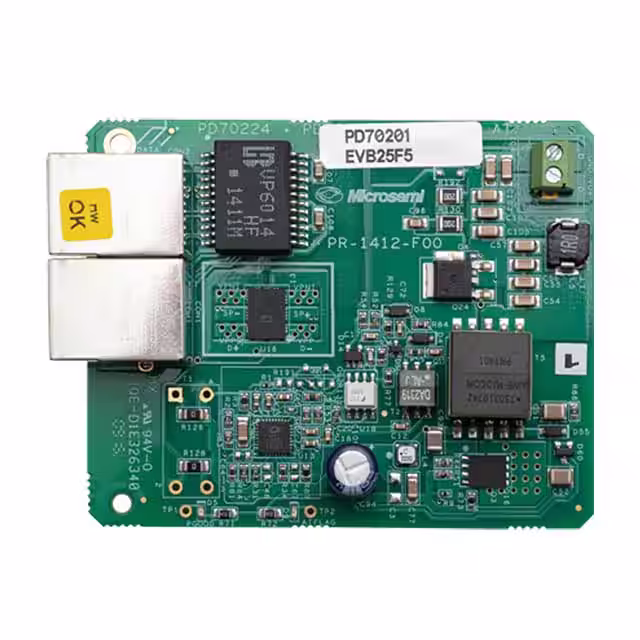

PD70201EVB25F-5EVAL BOARD FOR PD70201 |
2,931 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 25 W | 5V | 5A | - | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201 |
|

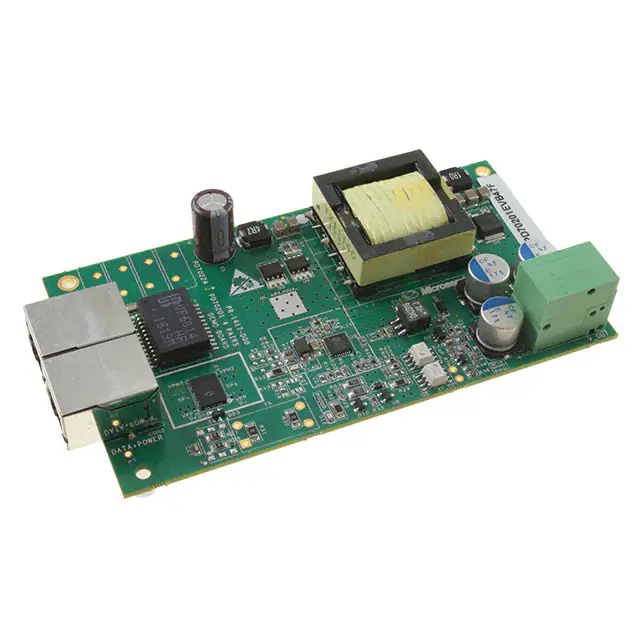

PD70201EVB47FEVAL BOARD FOR PD70201 |
4,679 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 47 W | 12V | 4A | 44V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201 |
|
EV66F86AEVAL BOARD FOR MIC2132 |
3,582 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 40A | 9.6V ~ 14.4V | Buck | - | Board(s) | MIC2132 |
|
ADM00423EVAL BOARD FOR MCP16322 |
4,866 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3V | 2A | 6V ~ 24V | Buck | 1MHz | Board(s) | MCP16322 |
|
|
MCP1602EVEVAL BOARD FOR MCP1602 |
1,603 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.2V, 1.8V, 2.5V, or 3.3V | 500mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | MCP1602 |
|

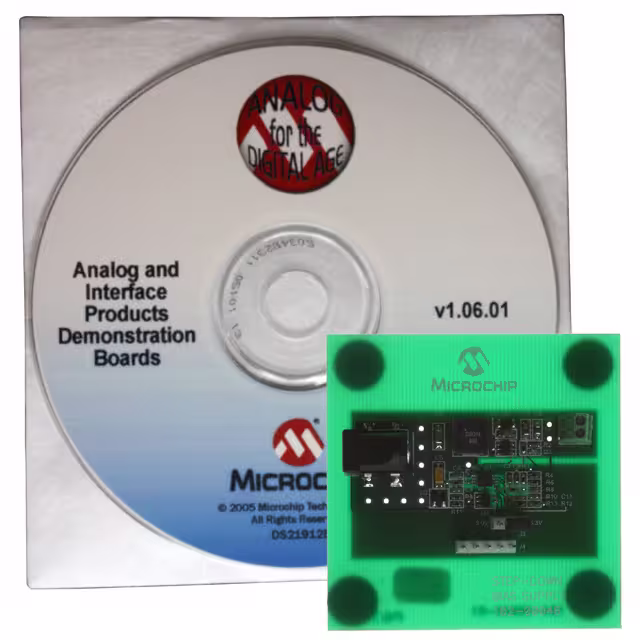

MCP1630DM-DDBK1EVAL BOARD FOR MCP1630 |
3,291 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 7.2V ~ 11.8V | Buck | - | Board(s) | MCP1630 |
|
MIC24085AYML-EVEVAL BOARD FOR MIC24085 |
2,168 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 18V | Buck | 1MHz | Board(s) | MIC24085 |
|
|
TC1303DM-DDBK1EVAL BOARD FOR TC1303 |
1,779 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 500mA, 300mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | TC1303 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
