DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

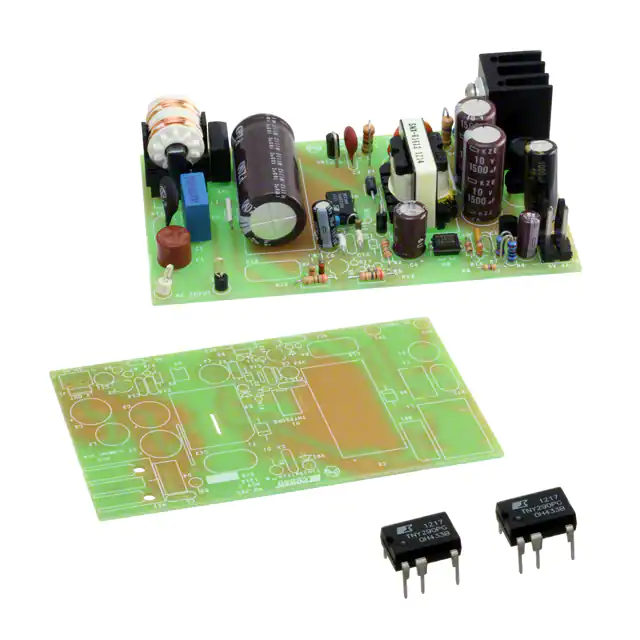

RDK-295EVAL BOARD FOR TNY290 |
1,714 | - |
|
Datasheet | TinySwitch®-4 | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 20 W | 5V | 4A | 90 ~ 295 VAC, 110V ~ 420V | Flyback | - | Board(s) | TNY290 |
|

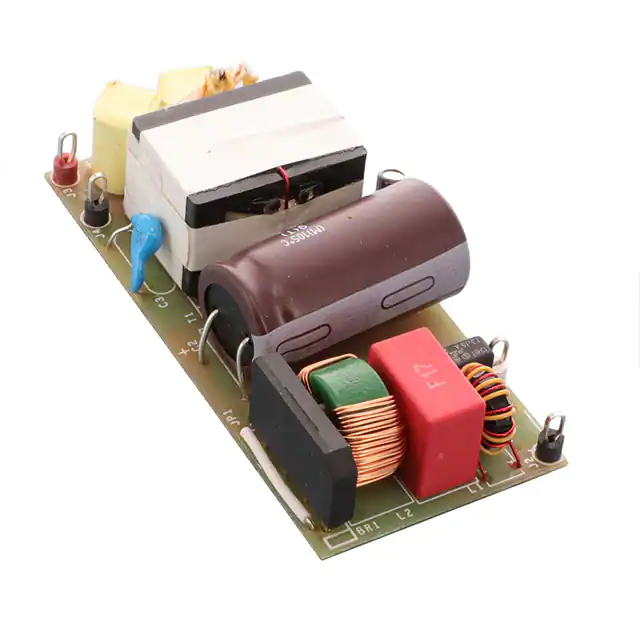

RDK-747EVAL BOARD FOR INN3679C |
1,621 | - |
|
Datasheet | InnoSwitch™3-EP | Box | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 65 W | 20V | 3.25A | 90 ~ 265 VAC | Flyback | - | Board(s) | INN3679C |
|
RDK-877EVAL BOARD FOR LNK3306D |
1,962 | - |
|
Datasheet | LinkSwitch®-TNZ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 6 W | 12V | 500mA | 90 ~ 305 VAC | Flyback | - | Board(s) | LNK3306D |
|
RDK-710EVAL BOARD FOR INN3074M |
3,949 | - |
|
Datasheet | - | Box | Active | AC/DC Converter | 2 Isolated Outputs | 12 W | 5V, 12V | 1.4A, 420mA | 85 ~ 265 VAC | Flyback | - | Board(s) | INN3074M |
|
|
RDK-734EVAL BOARD FOR LNK6407D |
4,858 | - |
|
Datasheet | LinkSwitch™-3 | Box | Active | AC/DC Converter | 1 Isolated Output | 8.4 W | 12V | 700mA | 90 ~ 265 VAC | Flyback | 77.5kHz | Board(s) | LNK6407D |
|
|
RDK-707QEVAL BOARD FOR LNK3209GQ |
3,445 | - |
|
Datasheet | LinkSwitch®-TN2Q | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 15V | - | 30V ~ 550V | Buck | - | Board(s) | LNK3209GQ |
|

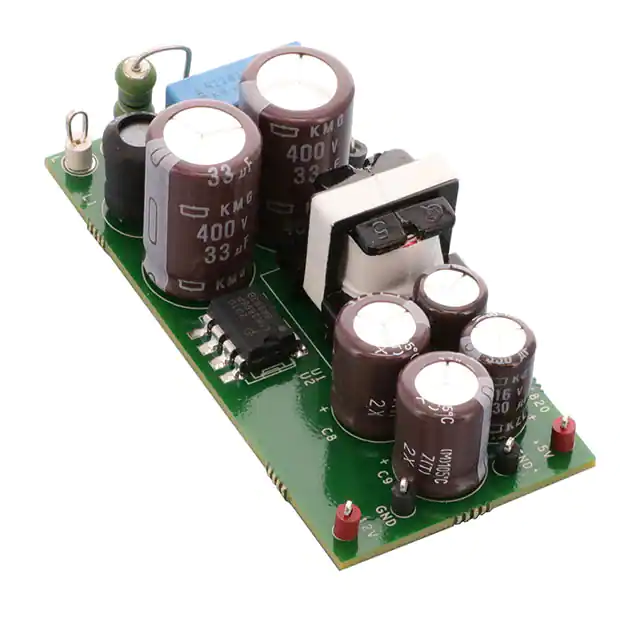

RDK-736EVAL BOARD FOR LNK3696 |
1,570 | - |
|
Datasheet | LinkSwitch™-XT2 | Box | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | 7 W | 5V, 12V | 500mA, 200mA | 85 ~ 440 VAC | Flyback | - | Board(s) | LNK3696 |
|
RDK-866EVAL BOARD FOR LNK3307D |
3,561 | - |
|
Datasheet | LinkSwitch®-TNZ | Box | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 2.5 W | 5V | 500mA | 90 ~ 300 VAC | Buck | - | Board(s) | LNK3307D |
|
|
RDK-874EVAL BOARD FOR LNK3302D |
2,067 | - |
|
Datasheet | LinkSwitch®-TNZ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 6V | - | 90 ~ 305 VAC | Buck | - | Board(s) | LNK3302D |
|

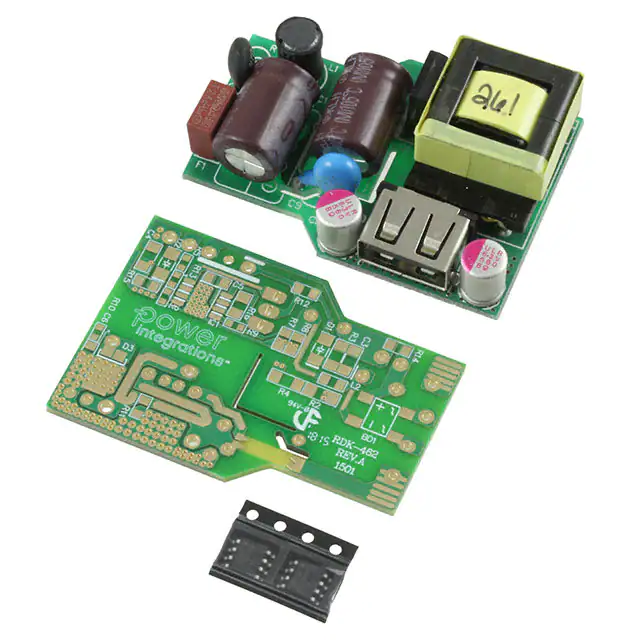

RDK-462EVAL BOARD FOR LNK4023D |
4,462 | - |
|
Datasheet | LinkSwitch™-4 | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 10 W | 5V | 2A | 90 ~ 265 VAC | Flyback | - | Board(s) | LNK4023D |
