DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDK-942EVAL BOARD FOR IP2726S |
3,416 | - |
|
Datasheet | InnoSwitch™4-Pro | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 25 mW | 3.3V ~ 21V | - | 90 ~ 265 VAC | Flyback | - | Board(s) | IP2726S |
|
|
RDK-962EVAL BOARD FOR LNK3773D |
1,891 | - |
|
Datasheet | - | Bulk | Active | AC/DC Converter | 2 Non-Isolated Outputs | 12 W | 5V, 12V | 1.4A, 420mA | 90 ~ 265 VAC | - | - | Board(s) | LNK3773D |
|

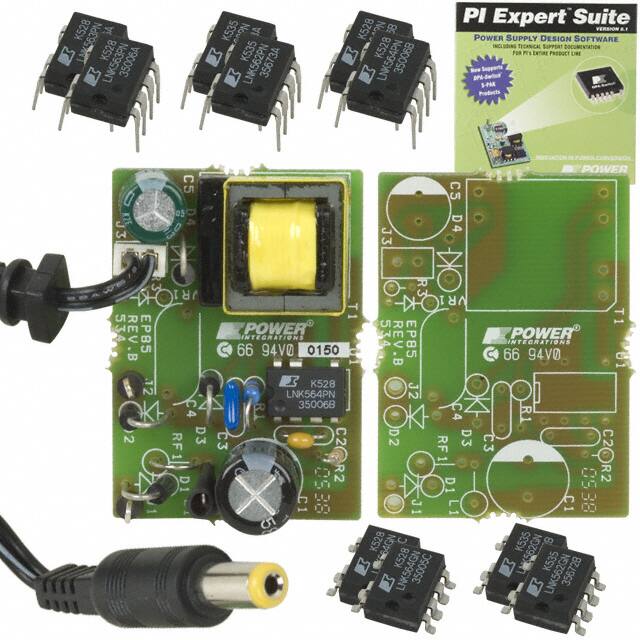

DAK-85EVAL BOARD LNK562 LNK563 LNK564 |
1,131 | - |
|
Datasheet | LinkSwitch®-LP | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 2 W | 6V | 330mA | 90 ~ 265 VAC | Flyback | 100kHz | Board(s) | LNK562, LNK563, LNK564 |
|

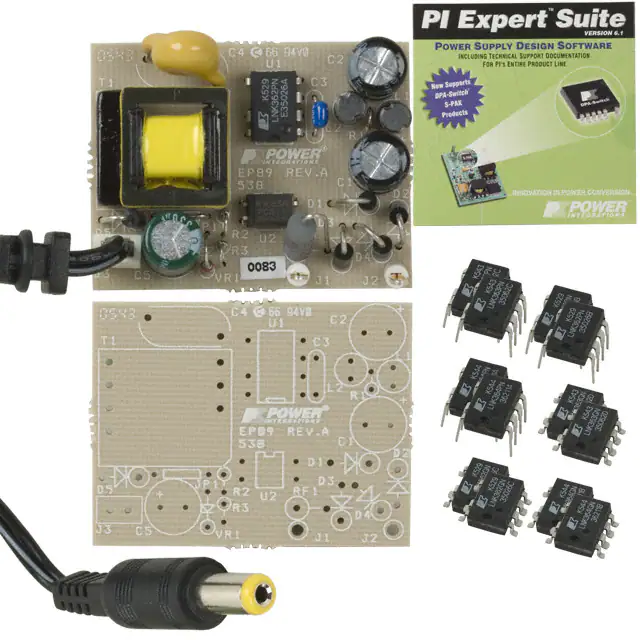

DAK-89EVAL BOARD LNK362 LNK363 LNK364 |
3,733 | - |
|
Datasheet | LinkSwitch®-XT | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 2 W | 6.2V | 322mA | 85 ~ 265 VAC | Flyback | - | Board(s) | LNK362, LNK363, LNK364 |
|

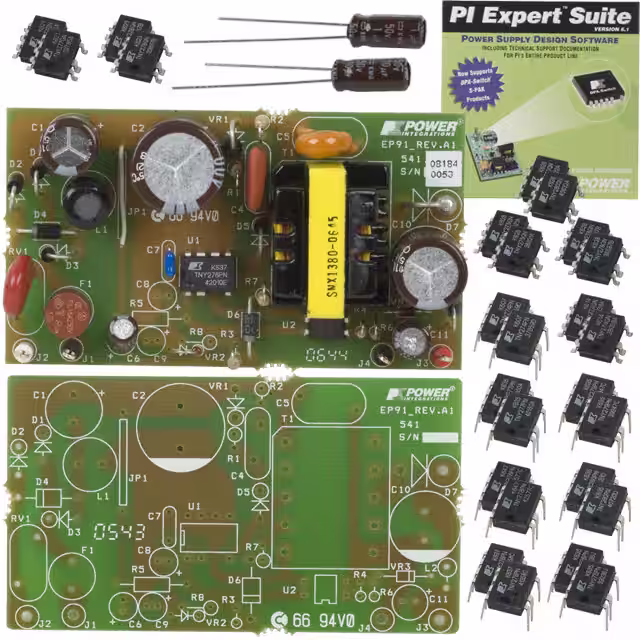

DAK-91EVAL BOARD FOR TNY278 |
2,273 | - |
|
Datasheet | TinySwitch®-III | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s) | TNY278 |
|

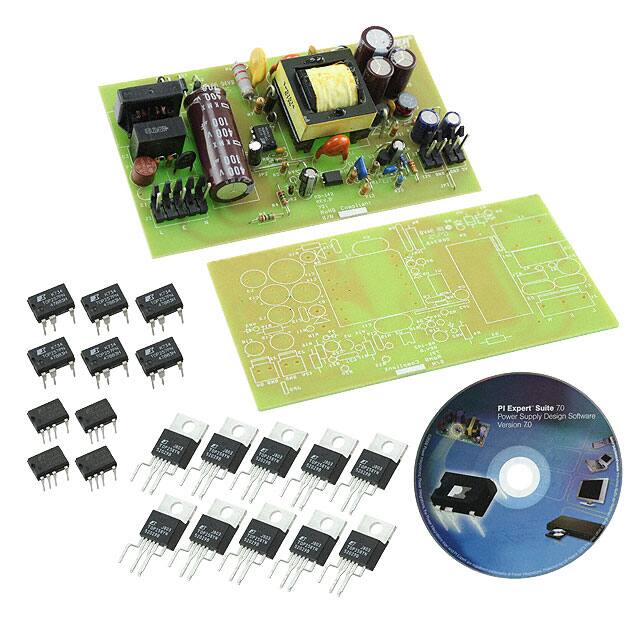

RDK-142EVAL BOARD FOR TOP258 |
1,211 | - |
|
Datasheet | TOPSwitch®-HX | Bulk | Obsolete | AC/DC, Primary Side | 2 Non-Isolated Outputs | 35 W | 5V, 12V | 2.2A, 2A | 90 ~ 265 VAC | Flyback | 30kHz | Board(s) | TOP258 |
|

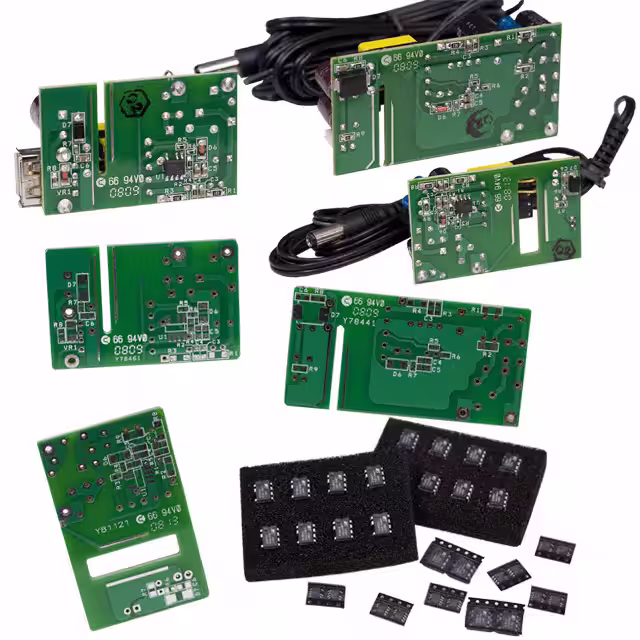

RDK-160EVAL BOARD FOR LNK603 LNK604 |
1,050 | - |
|
Datasheet | LinkSwitch®-II | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | - | - | 85 ~ 265 VAC | Flyback | - | Board(s) | LNK603, LNK604, LNK605, LNK606, LNK613, LNK614, LNK615, LNK616 |
|

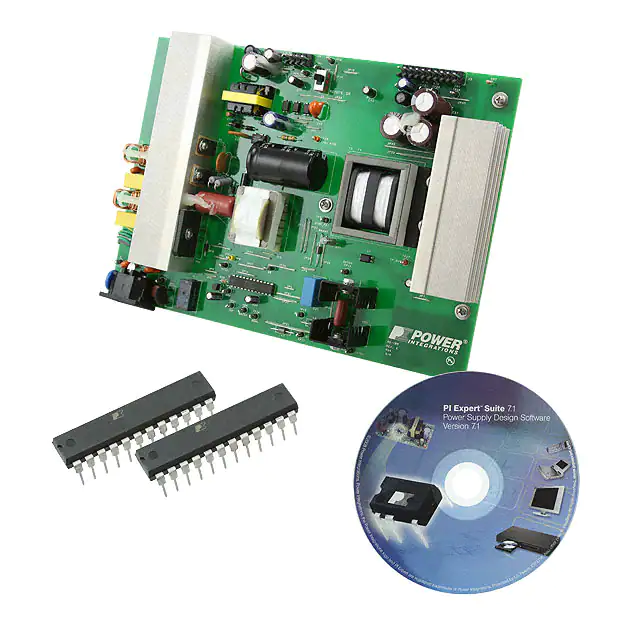

RDK-189EVAL BOARD FOR PLC810 |
1,878 | - |
|
Datasheet | HiperPLC™ | Box | Obsolete | AC/DC, Primary Side | 4 Isolated Outputs | 225 W | 5V, 5V, 12V, 24V | 7A, 4A, 1.9A, 100mA | 90 ~ 265 VAC | Flyback | - | Board(s) | PLC810 |
|

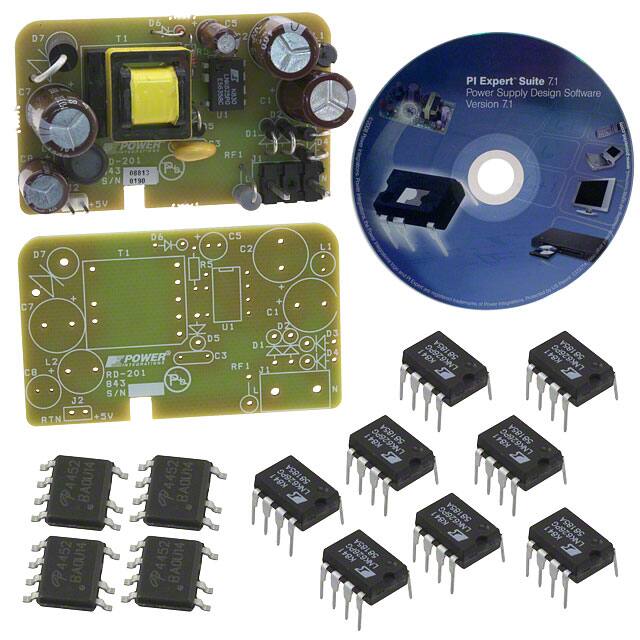

RDK-201EVAL BOARD FOR LNK625 |
4,852 | - |
|
Datasheet | LinkSwitch®-CV | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 6 W | 5V | 1.2A | 90 ~ 265 VAC | Flyback | - | Board(s) | LNK625 |
|

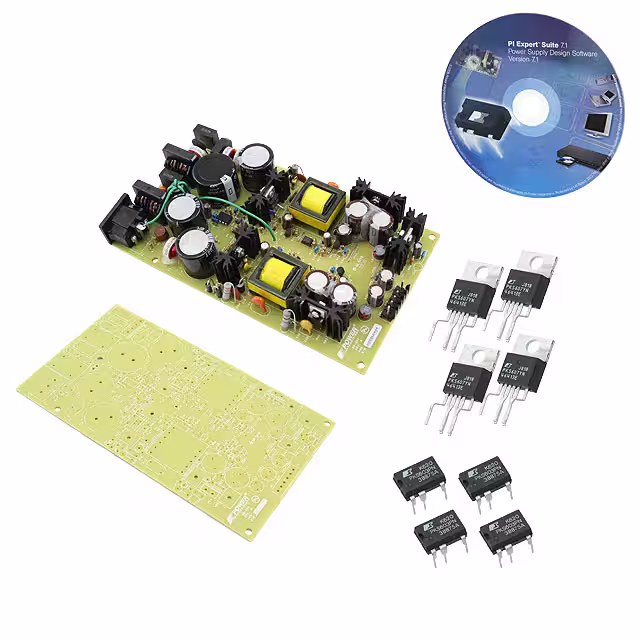

RDK-203EVAL BOARD FOR PKS607 |
3,567 | - |
|
Datasheet | PeakSwitch® | Bulk | Obsolete | AC/DC, Primary Side | 3 Isolated Outputs | 54 W | 28V, -28V, 12V | 893mA, 893mA, 333mA | 90 ~ 265 VAC | Flyback | - | Board(s) | PKS607 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
