DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

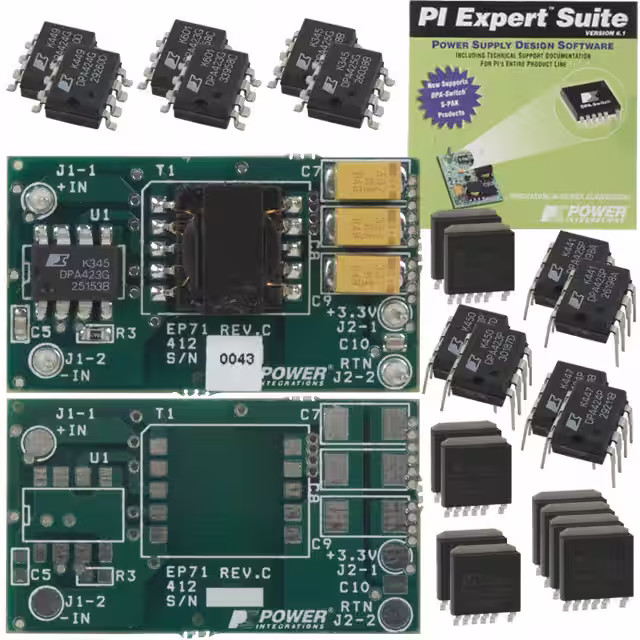

DAK-71AEVAL BOARD DPA423 DPA424 DPA425 |
2,970 | - |
|
Datasheet | DPA-Switch® | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 2A | 36V ~ 72V | Flyback | 400kHz | Board(s) | DPA423, DPA424, DPA425 |
|

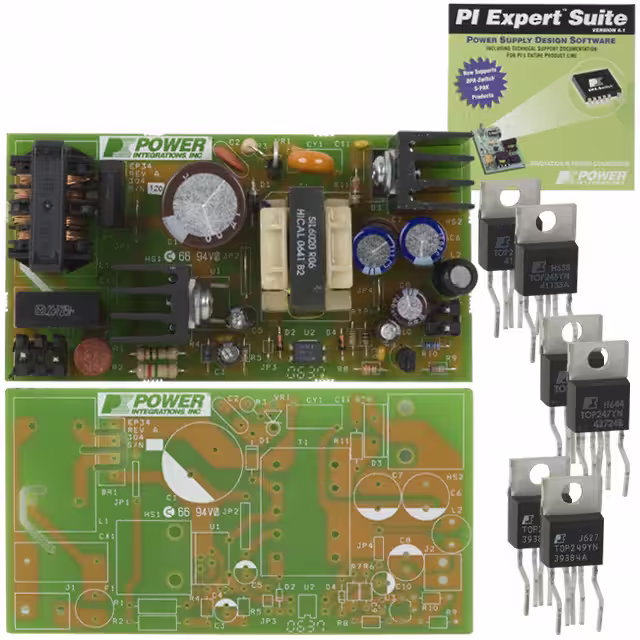

DAK-34EVAL BOARD FOR TOP245 |
2,064 | - |
|
Datasheet | TOPSwitch®-GX | - | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 30 W | 12V | 2.5A | 85 ~ 265 VAC | Flyback | 132kHz | Board(s) | TOP245 |
|

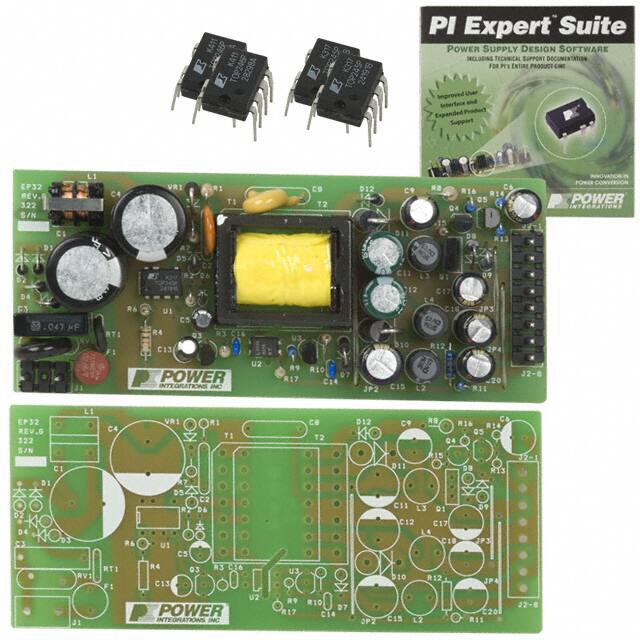

DAK-32EVAL BOARD FOR TOP245 |
3,238 | - |
|
Datasheet | TOPSwitch®-GX | - | Obsolete | AC/DC, Primary Side | 4 Isolated Outputs | 25 W | 3.3V, 5V, 12V, -24V | 1.2A, 600mA, 200mA, 50mA | 85 ~ 265 VAC | Flyback | - | Board(s) | TOP245 |
|
DAK-21AEVAL BOARD FOR DPA423 DPA424 |
3,294 | - |
|
Datasheet | DPA-Switch® | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 6A | 36V ~ 72V | Buck | 400kHz | Board(s) | DPA423, DPA424, DPA425, DPA426 |
|

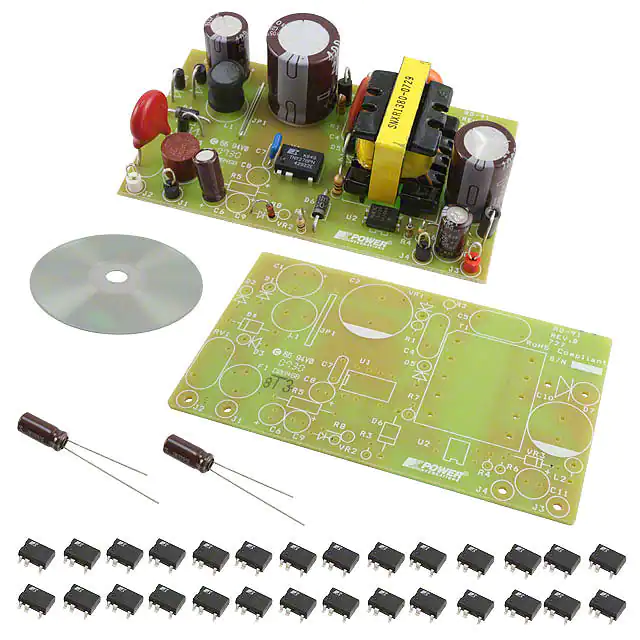

RDK-91EVAL BOARD FOR TNY274 TNY275 |
1,175 | - |
|
Datasheet | TinySwitch®-III | Box | Obsolete | AC/DC, Primary Side | 1 Non-Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s), Accessories | TNY274, TNY275, TNY276, TNY277, TNY278, TNY279, TNY280 |
|
|
RDK-928EVAL BOARD FOR CPZ1062M INN4073C |
4,483 | - |
|
Datasheet | ClampZero™, InnoSwitch™4-CZ, MinECAP™, PowiGaN™ | Box | Obsolete | AC/DC Converter | 4 Isolated Outputs | 60 W | 5V, 9V, 15V, 20V | 3A, 3A, 3A, 3A | 90 ~ 265 VAC | Flyback | - | Board(s) | CPZ1062M, INN4073C, MIN1072M |
|

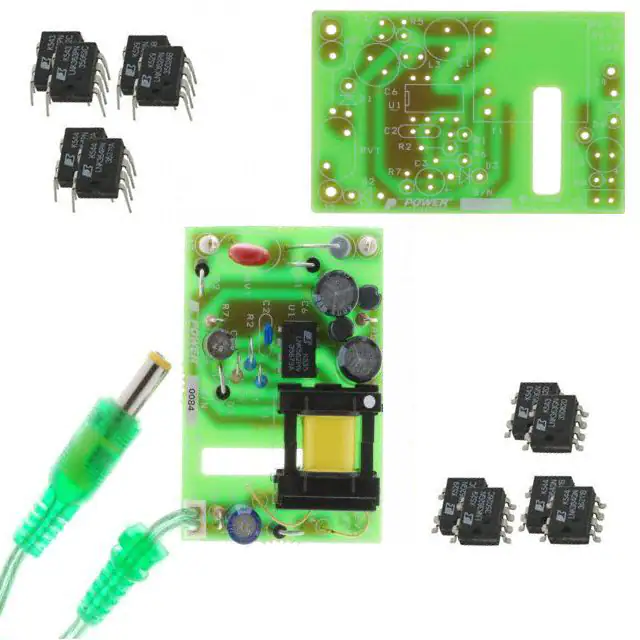

RDK-83EVAL BOARD LNK562 LNK563 LNK564 |
3,624 | - |
|
Datasheet | LinkSwitch®-LP | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 1.6 W | 7.7V | 210mA | 85 ~ 265 VAC | Flyback | 66kHz | Board(s), Accessories | LNK562, LNK563, LNK564 |
|

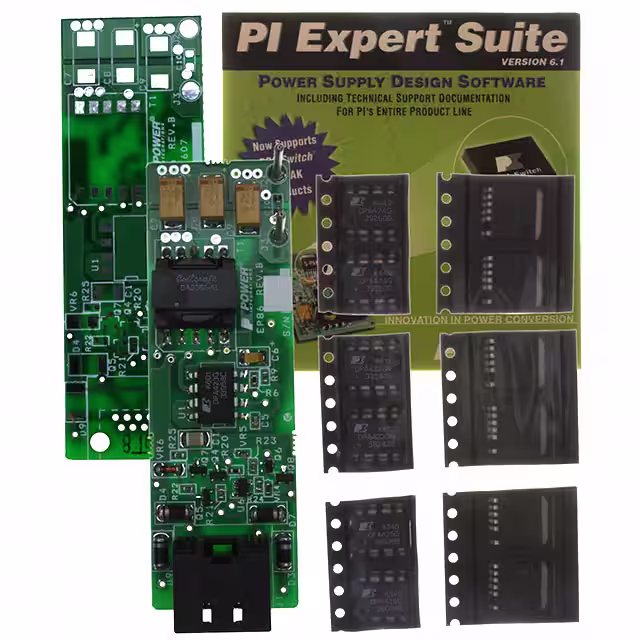

DAK-86EVAL BOARD DPA423 DPA424 DPA425 |
4,053 | - |
|
Datasheet | DPA-Switch® | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 6.6 W | 3.3V | 2A | 33V ~ 57V | Flyback | 400kHz | Board(s) | DPA423, DPA424, DPA425 |
|

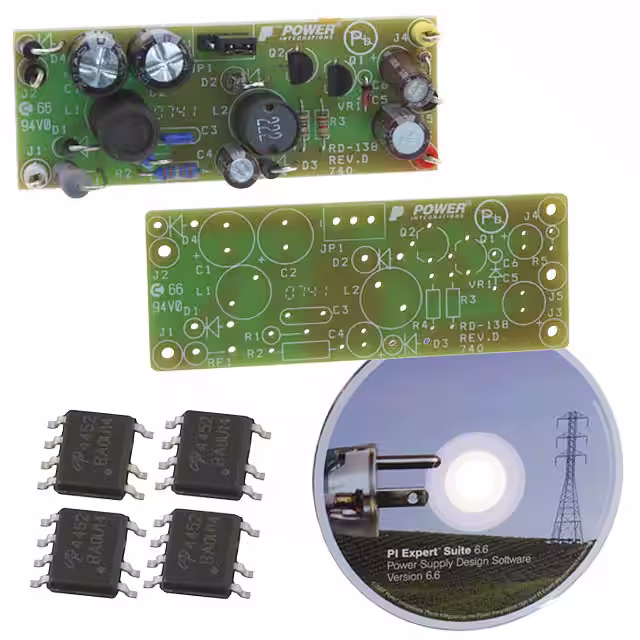

RDK-138EVAL BOARD FOR LNK304 |
4,396 | - |
|
Datasheet | - | Box | Active | AC/DC, Non-Isolated | 2 Non-Isolated Outputs | 1.2 W | 5V, 12V | 80mA, 50mA | 85 ~ 265 VAC | Buck | 66kHz | Board(s) | LNK304 |
|

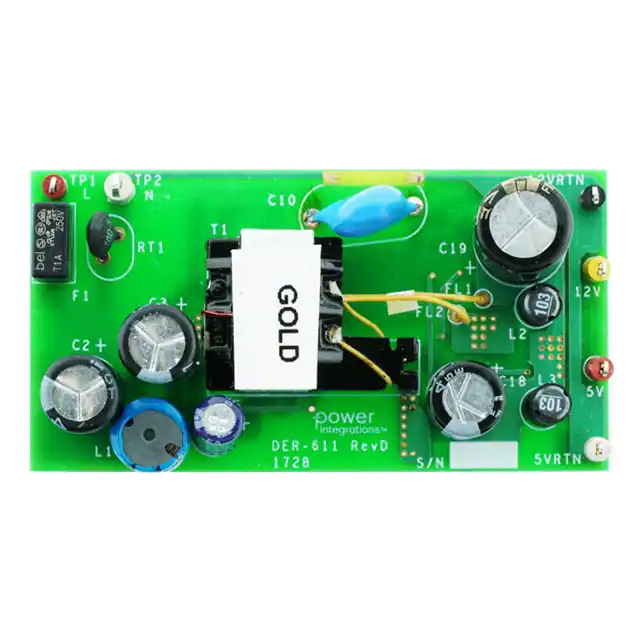

RDK-611EVAL BOARD FOR INN3672C |
1,906 | - |
|
Datasheet | InnoSwitch™3-EP | Box | Obsolete | AC/DC Converter | 2 Isolated Outputs | 10 W | 5V, 12V | 700mA, 300mA | 90 ~ 265 VAC | Flyback | - | Board(s) | INN3672C |
