DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

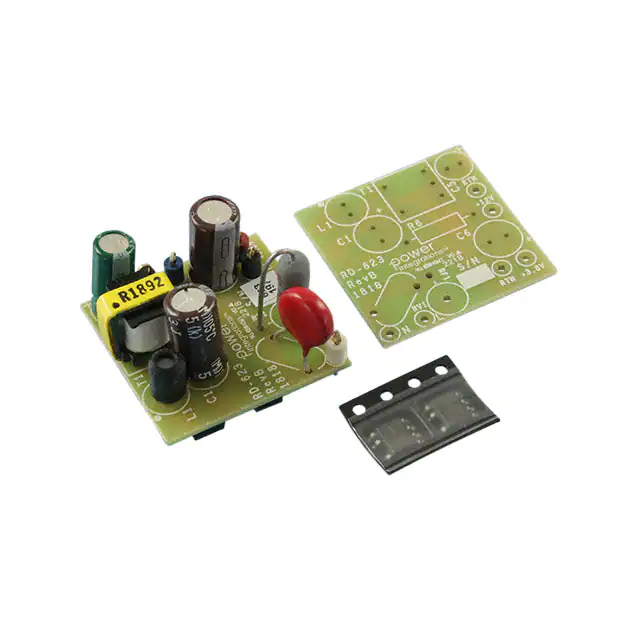

RDK-623EVAL BOARD FOR LNK3202D |
1,050 | - |
|
Datasheet | LinkSwitch®-TN2 | Box | Active | AC/DC, Non-Isolated | 2 Non-Isolated Outputs | - | 3.8V, 12V | 20mA, 20mA | 85 ~ 277 VAC | Flyback | 50Hz ~ 60Hz | Board(s) | LNK3202D |
|

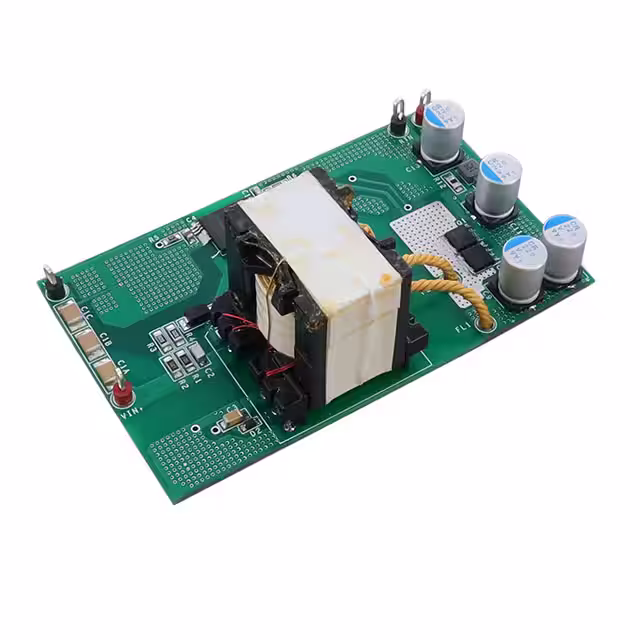

RDK-919QEVAL BOARD FOR INN3949CQ |
1,821 | - |
|
Datasheet | InnoSwitch™3-AQ | Box | Obsolete | DC/DC Converter | 1 Isolated Output | 60 W | 24V | 2.5A | 50V ~ 1000V | Flyback | - | Board(s) | INN3949CQ |
|
RDK-313EVAL BOARD FOR LNK6766 |
1,804 | - |
|
Datasheet | LinkSwitch™-HP | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 30 W | 12V | 2.5A | 90 ~ 265 VAC | Flyback | 132kHz | Board(s) | LNK6766 |
|
|
RDK-723EVAL BOARD FOR LNK3209D |
2,417 | - |
|
Datasheet | LinkSwitch™-TN2 | Box | Active | AC/DC Converter | 1 Non-Isolated Output | 9.6 W | 12V | 800mA | 85 ~ 265 VAC | Buck | 66kHz | Board(s) | LNK3209D |
|
|
DAK-14AEVAL BOARD FOR TNY264 |
1,858 | - |
|
Datasheet | TinySwitch®-II | - | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 3 W | 9V | 330mA | 85 ~ 265 VAC | Flyback | 132kHz | Board(s) | TNY264 |
|

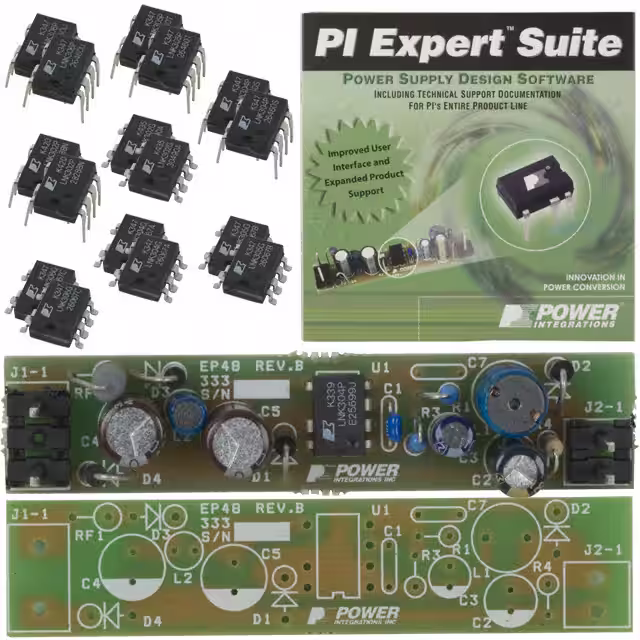

DAK-48AEVAL BOARD FOR LNK304 |
1,595 | - |
|
Datasheet | LinkSwitch®-TN | - | Obsolete | AC/DC, Non-Isolated | 1 Non-Isolated Output | 1.44 W | 12V | 120mA | 85 ~ 265 VAC | Buck | 66kHz | Board(s) | LNK304 |
|
|
DAK-7KIT DESIGN ACCELERATOR APPLIANCE |
1,399 | - |
|
Datasheet | - | - | Obsolete | - | - | - | - | - | - | - | - | Board(s) | - |
|

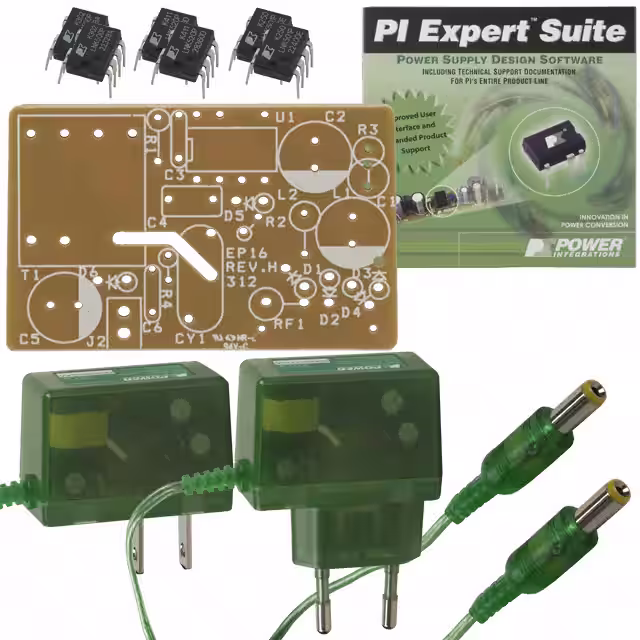

DAK-16AEVAL BOARD LNK500 LNK501 LNK520 |
1,212 | - |
|
Datasheet | LinkSwitch® | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 2.75 W | 5.5V | 500mA | 85 ~ 265 VAC | Flyback | 42kHz | Unpopulated (Bare) Board(s) | LNK500, LNK501, LNK520 |
|

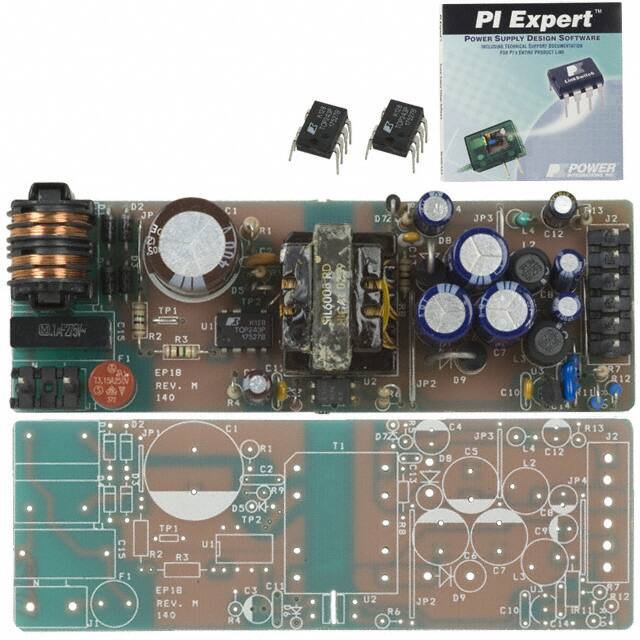

DAK-18EVAL BOARD FOR TOP243 |
2,387 | - |
|
Datasheet | TOPSwitch®-GX | - | Obsolete | AC/DC, Primary Side | 3 Isolated Outputs | 10 W | 3.3V, 5V, 30V | 1.5A, 900mA, 30mA | 85 ~ 265 VAC | Flyback | 132kHz | Board(s) | TOP243 |
|

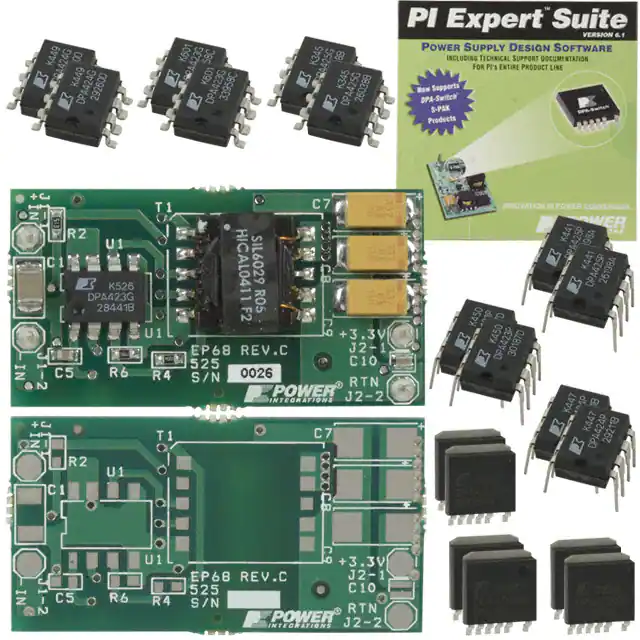

DAK-68AEVAL BOARD DPA423 DPA424 DPA425 |
2,914 | - |
|
Datasheet | DPA-Switch® | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | 6.6 W | 3.3V | 2A | 36V ~ 57V | Flyback | 400kHz | Board(s) | DPA423, DPA424, DPA425 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
