DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3905SD-30EVEVAL BOARD FOR LP3905 |
3,044 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1.2V, 1.875, 2.8V, 2.8V | 600mA, 600mA, 100mA, 100mA | 3V ~ 5.5V | Buck | 2MHz | Board(s) | LP3905 |
|
|
LM2773TLEVEVAL BOARD FOR LM2773 |
4,922 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.6V or 1.8V | 300mA | 2.7V ~ 5.5V | Buck | 1.15MHz | Board(s) | LM2773 |
|
LM5073HE-EVALEVAL BOARD FOR LM5073 |
2,480 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | 9.9 W | 3.3V | 3A | 40V ~ 57V | Flyback | 150kHz | Board(s) | LM5073 |
|
LM26003EVALEVAL BOARD FOR LM26003 |
4,631 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4V ~ 38V | Buck | 300kHz | Board(s) | LM26003 |
|
|
ISL85413EVAL1ZEVAL BOARD FOR ISL85413 |
2,718 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 3.5V ~ 40V | Buck | 700kHz | Board(s) | ISL85413 |
|
|
ADP1828LC-EVALZEVAL BOARD FOR ADP1828 |
2,698 | - |
|
Datasheet | - | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 5A | 5.5V ~ 13.2V | Buck | 600kHz | Board(s) | ADP1828 |
|

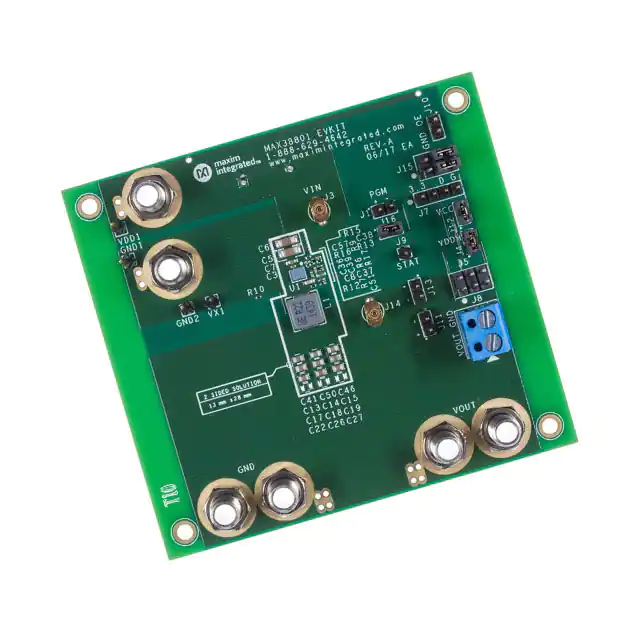

MAX38801EVKIT#EVAL BOARD FOR MAX38801 |
4,337 | - |
|
Datasheet | Quick-PWM™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 15A | 6.5V ~ 14V | - | - | Board(s) | MAX38801 |
|
ADP2108-1.8-EVALZEVAL BOARD FOR ADP2108 |
4,590 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2108 |
|
|
ISL85418EVAL1ZEVAL BOARD FOR ISL85418 |
4,942 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 3V ~ 36V | Buck | 500kHz | Board(s) | ISL85418 |
|
|
ISL85410EVAL1ZEVAL BOARD FOR ISL85410 |
1,939 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 3V ~ 36V | Buck | 500kHz | Board(s) | ISL85410 |
|
|
ISL85415EVAL1ZEVAL BOARD FOR ISL85415 |
1,869 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 3V ~ 36V | Buck | 500kHz | Board(s) | ISL85415 |
|

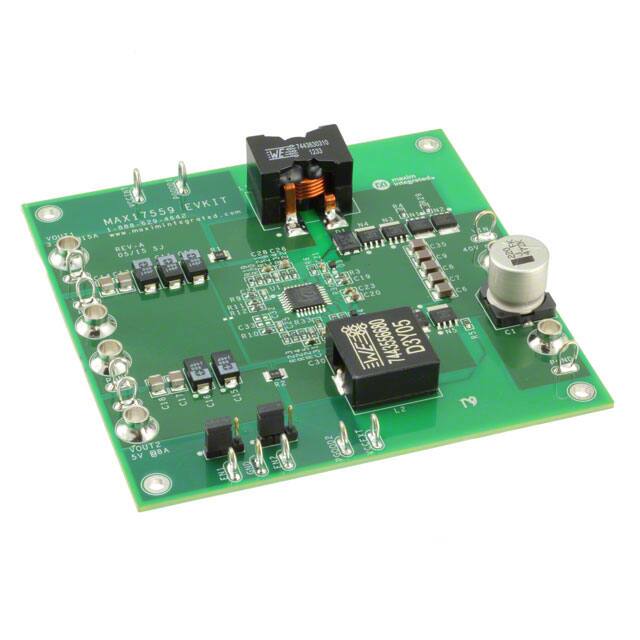

MAX17559EVKIT#EVAL BOARD FOR MAX17559 |
2,529 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 15A, 8A | 6V ~ 60V | Buck | 150kHz | Board(s) | MAX17559 |
|
|
XR77103-MOCA-EVK-1EVAL BOARD FOR XR77103MOCA |
2,037 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 0.9V, 1.8V, 3.3V | 3.2A, 2A, 2A | 4.5V ~ 14V | Buck | 560kHz | Board(s) | XR77103-MoCA |
|

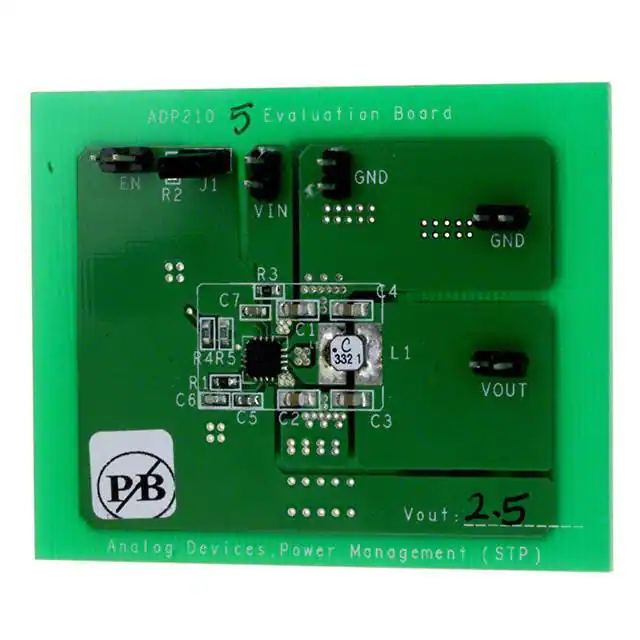

ADP2105-EVALZEVAL BOARD FOR ADP2105 |
1,598 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 1A | 2.7V ~ 5.5V | Buck | 1.2MHz | Board(s) | ADP2105 |
|

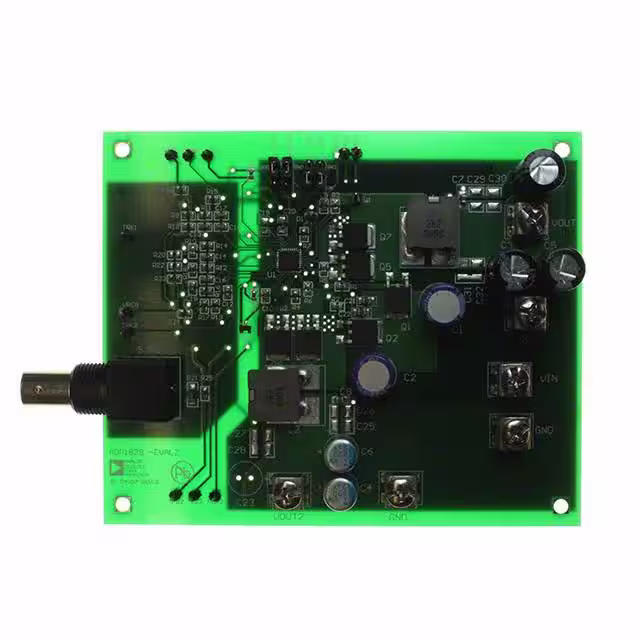

ADP1829-EVALZEVAL BOARD FOR ADP1829 |
4,881 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 15A, 15A | 5.5V ~ 18V | Buck | 300kHz | Board(s) | ADP1829 |
|
178060302EVAL BOARD FOR WPMDB1600362Q |
2,611 | - |
|
Datasheet | MagI3C | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 21.6 W | 0.8V ~ 3.6V | 6A | 2.95V ~ 6V | Buck | - | Board(s) | WPMDB1600362Q |
|

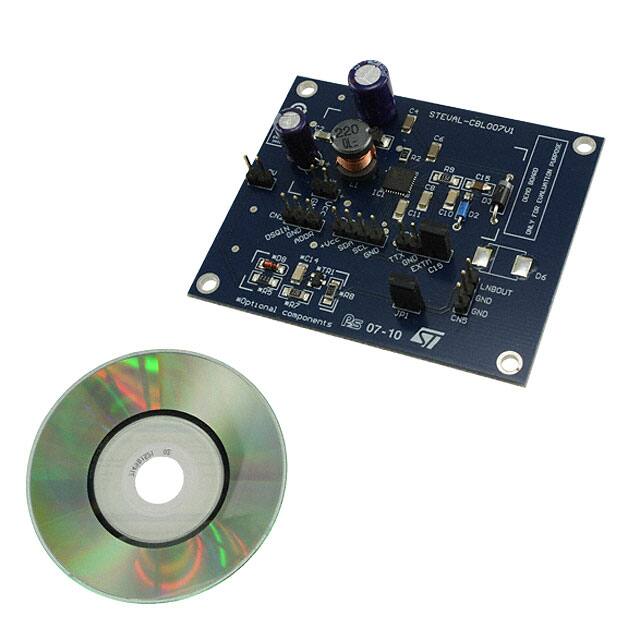

STEVAL-CBL007V1EVAL BOARD FOR LNBH23 |
1,413 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LNB | - | - | - | - | - | Boost | 220kHz | Board(s) | LNBH23 |
|
NCV8843MNR2GEVBEVAL BOARD FOR NCV8843 |
2,232 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 5V ~ 16V | Buck | 340kHz | Board(s) | NCV8843 |
|

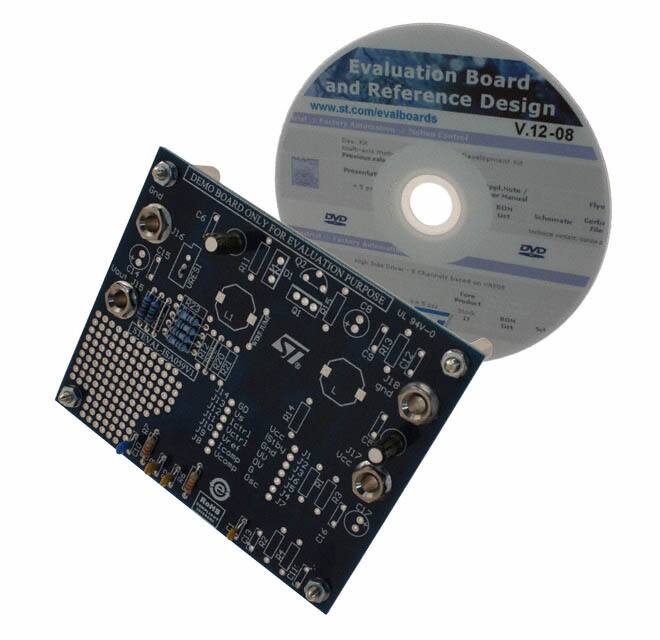

STEVAL-ISA059V1EVAL BOARD FOR TSM108 |
1,921 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 6V | 800mA | 12V | Buck | - | Board(s) | TSM108 |
|
LM3668SD-4550EVEVAL BOARD FOR LM3668 |
4,326 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 4.5V or 5V | 1A | 2.5V ~ 5.5V | Buck-Boost | 2.2MHz | Board(s) | LM3668 |
