DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL8117AEVAL1ZEVAL BOARD FOR ISL8117A |
2,470 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 18V ~ 60V | Buck | 300kHz | Board(s) | ISL8117A |
|
|
ISL8104EVAL2ZEVAL BOARD FOR ISL8104 |
2,567 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 20A | 8V ~ 14.4V | Buck | 300kHz | Board(s) | ISL8104 |
|
LM3478EVALEVAL BOARD FOR LM3478 |
4,427 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.5A | 4.5V ~ 5.5V | Boost | 1MHz | Board(s) | LM3478 |
|

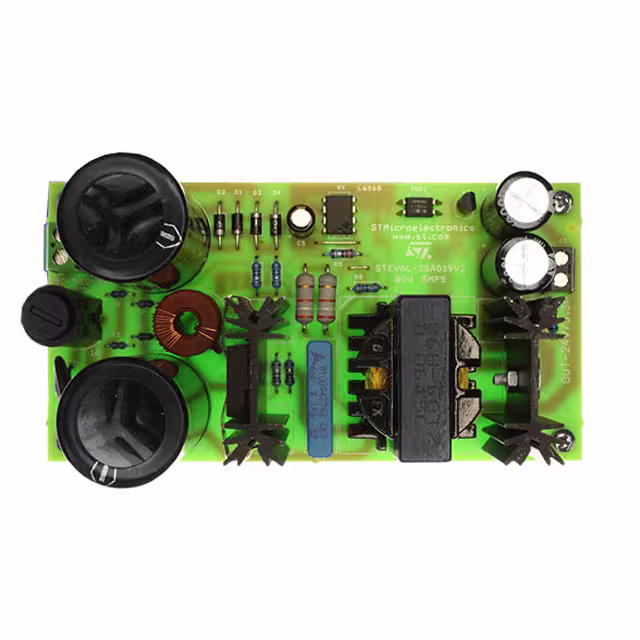

STEVAL-ISA019V2EVAL BOARD L6565 STC04IE170HV |
1,433 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 80 W | 24V | 3.33A | - | Flyback | - | Board(s) | L6565, STC04IE170HV |
|
|
MAX618EVKITEVAL BOARD FOR MAX618 |
4,884 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 3V ~ 12V | Boost | 250kHz | Board(s) | MAX618 |
|
LM2716MTEVEVAL BOARD FOR LM2716 |
3,124 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 3.3V, 15V | 2A, 1.8A | 4V ~ 20V | Buck-Boost | - | Board(s) | LM2716 |
|
TPS65301EVMEVAL BOARD FOR TPS65301Q1 |
3,966 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down with LDO | 5 Non-Isolated Outputs | - | 1.2V, 3.3V, 5V, 5V, 5.45V | - | 5.6V ~ 40V | Buck | - | Board(s) | TPS65301-Q1 |
|

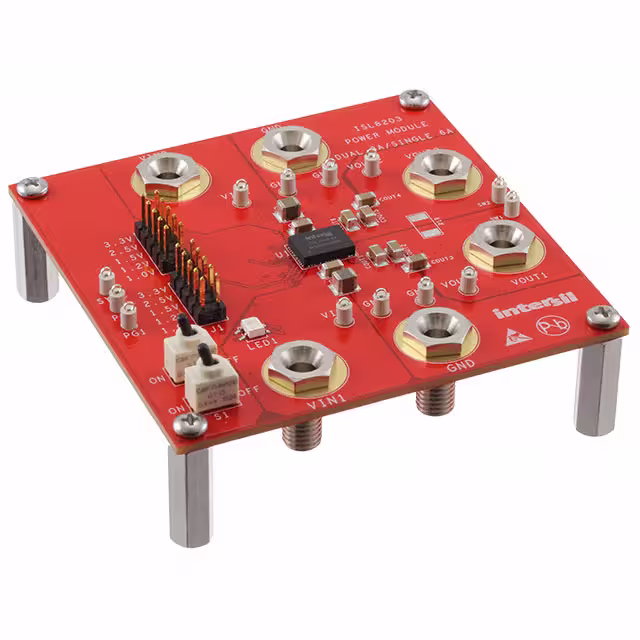

ISL8203MEVAL2ZEVAL BOARD FOR ISL8203M |
1,090 | - |
|
Datasheet | - | Box | Last Time Buy | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.2V, 1.5V, 2.5V or 3.3V | 3A, 3A | 2.85V ~ 6V | Buck | 1MHz | Board(s) | ISL8203M |
|
S6SAP412A78SA1001EVAL BOARD FOR S6AP412A |
3,409 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 1V, 1.8V, 3.3V | 4A, 1.2A, 600mA | 2.5V ~ 5.5V | Buck-Boost | 3MHz | Board(s) | S6AP412A |
|
|
ISL8009AEVAL1ZEVAL BOARD FOR ISL8009A |
1,460 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 2.7V ~ 5.5V | Buck | 1.6MHz | Board(s) | ISL8009A |
|
SI3460-EVBEVAL BOARD FOR SI3460 |
2,401 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | - | -48V | 45mA | 11V ~ 16V | Boost | 250kHz | Board(s) | Si3460 |
|
BD9C501EFJ-EVK-001EVAL BOARD FOR BD9C501 |
4,776 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 4.72V ~ 18V | Buck | 500kHz | Board(s) | BD9C501 |
|
BD9A600MUV-EVK-001EVAL BOARD FOR BD9A600 |
2,626 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | BD9A600 |
|
|
XR77129EVB-DEMO-1-KITAEVAL BOARD FOR XR77129 |
4,929 | - |
|
Datasheet | - | Bulk | Not For New Designs | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 2.5V, 3.3V, 5V, 12V | 10A, 5A, 5A, 3A | 6V ~ 40V | Buck | 1.23MHz | Board(s) | XR77129 |
|
|
MAX77503AEVKIT#EVAL BOARD FOR MAX77503A |
4,652 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 3V ~ 14V | Buck | - | Board(s) | MAX77503A |
|
|
ISL854102EVAL1ZEVAL BOARD FOR ISL854102 |
3,765 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 3V ~ 40V | Buck | 500kHz | Board(s) | ISL854102 |
|

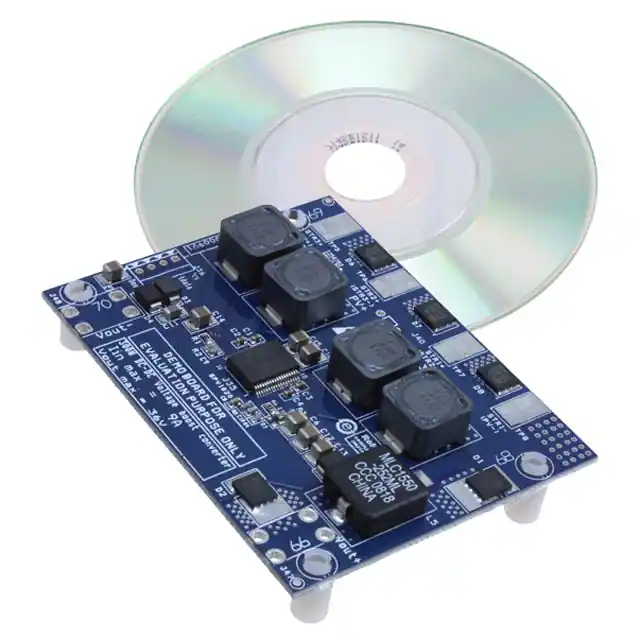

STEVAL-ISV009V1EVAL BOARD FOR SPV1020 |
3,038 | - |
|
Datasheet | - | Bulk | Obsolete | Special Purpose, MPPT, Solar | 1 Non-Isolated Output | - | 36V | - | - | Boost | 100kHz | Board(s) | SPV1020 |
|

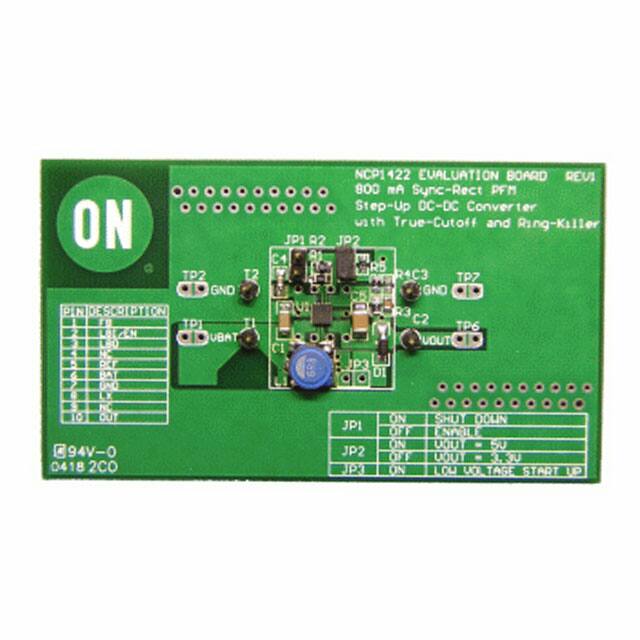

NCP1422GEVBEVAL BOARD FOR NCP1422 |
2,896 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.5V ~ 5V | - | 1V ~ 5V | Boost | - | Board(s) | NCP1422 |
|
|
ISL8025EVAL3ZEVAL BOARD FOR ISL8025 |
4,366 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 5A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8025 |
|
|
ISL6420BEVAL1ZEVAL BOARD FOR ISL6420B |
4,141 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 4.5V ~ 28V | Buck | 300kHz | Board(s) | ISL6420B |
