DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

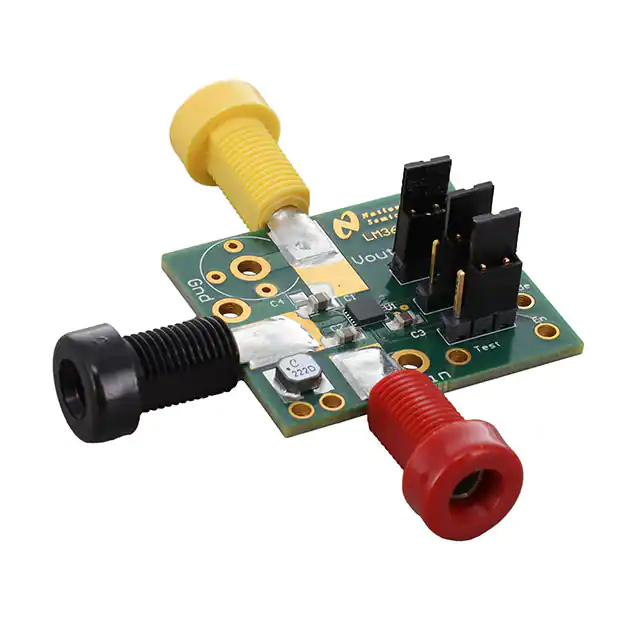

LM3668SD-3034EV/NOPBEVAL BOARD FOR LM3668 |
3,014 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3V or 3.4V | 1A | 2.5V ~ 5.5V | Buck-Boost | 2.2MHz | Board(s) | LM3668 |
|
LM3670MF-1.2EVEVAL BOARD FOR LM3670 |
1,908 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 350mA | 2.5V ~ 5.5V | Buck | 1MHz | Board(s) | LM3670 |
|
LM3668SD-2833EV/NOPBEVAL BOARD FOR LM3668 |
2,780 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.8V or 3.3V | 1A | 2.5V ~ 5.5V | Buck-Boost | 2.2MHz | Board(s) | LM3668 |
|
ISL8013AEVAL2ZEVAL BOARD FOR ISL8013A |
3,176 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8013A |
|
|
ISL8014AEVAL2ZEVAL BOARD FOR ISL8014A |
2,541 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8014A |
|
LM2854-1000EVALEVAL BOARD FOR LM2854 |
2,176 | - |
|
Datasheet | SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 4A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LM2854 |
|
|
MAX17543EVKITA#EVAL BOARD FOR MAX17543 |
2,259 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 5V ~ 42V | Buck | 450kHz | Board(s) | MAX17543 |
|
|
MAX17543EVKITB#EVAL BOARD FOR MAX17543 |
3,769 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 6.5V ~ 42V | Buck | 500kHz | Board(s) | MAX17543 |
|
|
MAX17545EVKITA#EVAL BOARD FOR MAX17545 |
3,067 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.7A | 4.5V ~ 42V | Buck | 450kHz | Board(s) | MAX17545 |
|

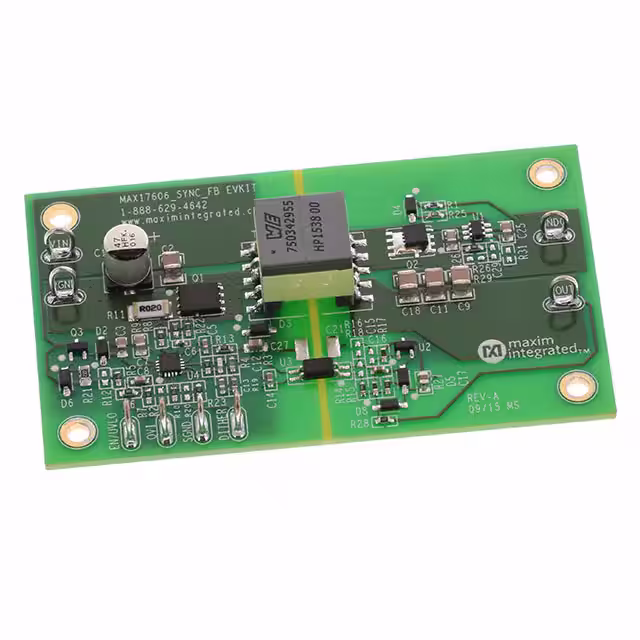

MAX17606SFBEVKIT#EVAL BOARD FOR MAX17606 |
3,028 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 3A | 18V ~ 36V | Flyback | 200kHz | Board(s) | MAX17606 |
|

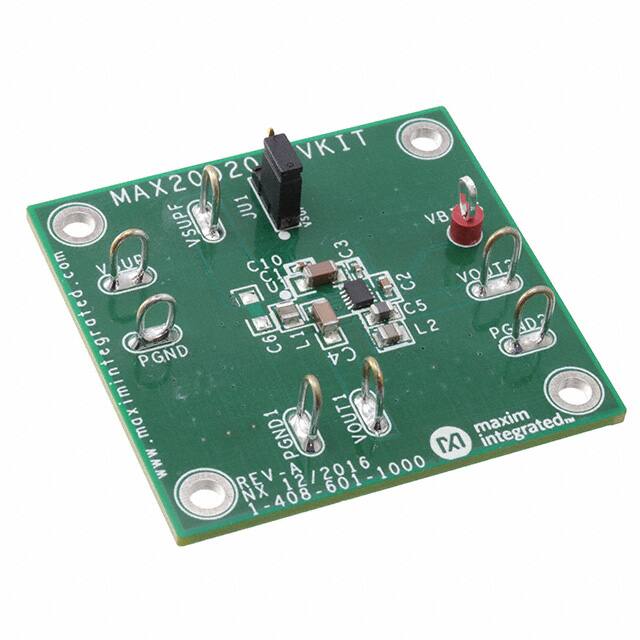

MAX20020EVKIT#EVAL BOARD FOR MAX20020 |
4,938 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 500mA, 500mA | 3.5V ~ 16V | Buck | 3.2MHz | Board(s) | MAX20020 |
|

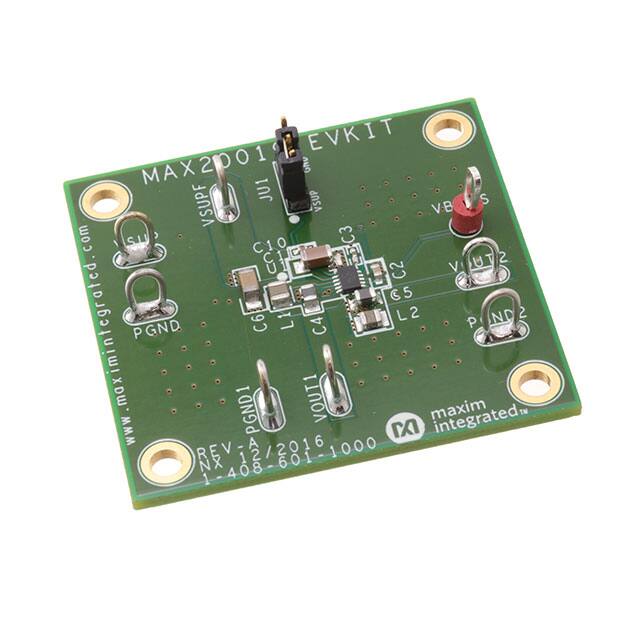

MAX20019EVKIT#EVAL BOARD FOR MAX20019 |
2,609 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 500mA, 500mA | 3.5V ~ 16V | Buck | 3.2MHz | Board(s) | MAX20019 |
|
|
MAX1688EVKITEVAL BOARD FOR MAX1688 |
1,229 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.42A | 2.7V ~ 6V | Buck | 600kHz | Board(s) | MAX1688 |
|
|
LM3224MM-ADJEVEVAL BOARD FOR LM3224 |
1,320 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 650mA | 2.7V ~ 4.2V | Boost | 1.25MHz | Board(s) | LM3224 |
|

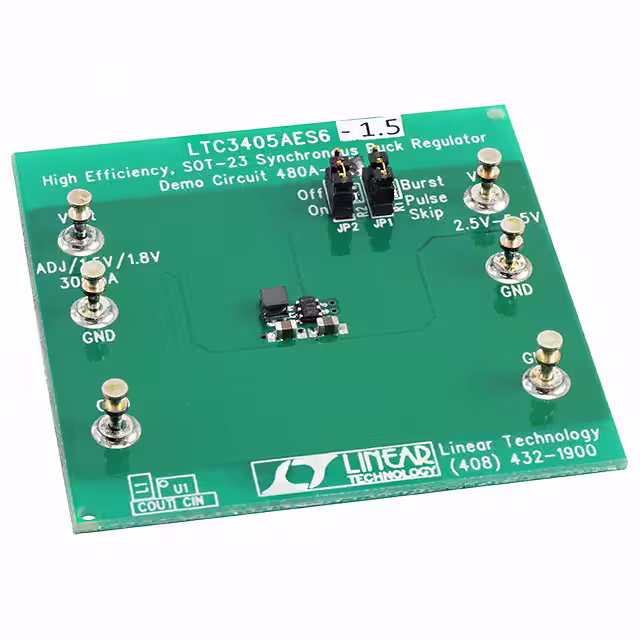

DC480A-BEVAL BOARD FOR LTC3405A1.5 |
1,912 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 300mA | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3405A-1.5 |
|
|
ISL8117DEMO4ZEVAL BOARD FOR ISL8117 |
4,600 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 6V ~ 60V | Buck | 300kHz | Board(s) | ISL8117 |
|
|
MAX17506EVKITA#EVAL BOARD FOR MAX17506 |
4,265 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 4.5V ~ 60V | Buck | 2.2MHz | Board(s) | MAX17506 |
|
17800FISMEVAL BOARD FOR FISM |
2,526 | - |
|
Datasheet | MagI3C | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Isolated Output | - | 5V ~ 15V | - | 3.3V ~ 12V | Boost, Buck | - | Board(s) | FISM |
|
|
ISL854102DEMO3ZEVAL BOARD FOR ISL854102 |
2,834 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 34V | 1.2A | 3V ~ 40V | Buck | 500kHz | Board(s) | ISL854102 |
|
|
LM2743EVALEVAL BOARD FOR LM2743 |
1,594 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3.5A | 8V ~ 14V | Buck | 1MHz | Board(s) | LM2743 |
