DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL_APXH003A0XEVALUATION BOARD |
1,462 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
EVAL_NSR/NSS006EVALUATION BOARD |
1,527 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
EVAL_PJT007EVAL BOARD FOR PJT007 |
2,250 | - |
|
Datasheet | PicoDLynxII™ | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.51V ~ 5.5V | 7A | 4.5V ~ 14.4V | - | 500kHz | Board(s) | PJT007 |
|
|
EVAL_NAOS_SMT/SIPEVALUATION BOARD |
1,669 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
EVAL_APTH012A0X3-SRZEVAL BOARD FOR APTH012 |
4,596 | - |
|
Datasheet | MicroTLynx™ | Bulk | Obsolete | DC/DC Converter | 1 Non-Isolated Output | - | 0.6V ~ 3.63V | 12A | 2.4V ~ 5.5V | - | 600kHz | Board(s) | APTH012 |
|
|
EVAL_APXH020A0XEVALUATION BOARD |
4,975 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
EVAL_FKX003EVAL BOARD FOR FKX003 |
2,086 | - |
|
Datasheet | FemtoDLynxII™ | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 3A | 4.5V ~ 14.4V | - | 600kHz | Board(s) | FKX003 |
|
|
EVAL_FKX006EVALUATION BOARD |
2,506 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
EVAL MDT040A0X3-SRPHZEVAL BOARD FOR MDT040 |
1,274 | - |
|
Datasheet | MegaDLynx™ | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.45V ~ 2V | 40A | 4.5V ~ 14.4V | - | 400kHz | Board(s) | MDT040 |
|
|
EVAL_UDXS0606A0X3-SRZEVAL BOARD FOR UDXS0606 |
1,853 | - |
|
Datasheet | MicroDLynx™ | Bulk | Active | DC/DC Converter | 2 Non-Isolated Outputs | - | 0.51V ~ 5.5V | 6A, 6A | 4.5V ~ 14.4V | - | 500kHz | Board(s) | UDXS0606 |
|
|
EVAL APTS050A0X3-SRPHZ PARALLELINGEVAL BOARD FOR APTS050 |
4,443 | - |
|
Datasheet | PicoDLynx™ | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.6V ~ 2V | 50A | 4.5V ~ 14V | - | - | Board(s) | APTS050 |
|
|
ISL6440EVAL1ZEVAL BOARD FOR ISL6440 |
3,656 | - |
|
Datasheet | - | Box | Last Time Buy | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 2A, 2A | 12V | Buck | 300kHz | Board(s) | ISL6440 |
|
|
UCC33420EVM-080EVAL BOARD FOR UCC33420Q1 |
3,951 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC Converter | 1 Isolated Output | 1.5 W | 5V | - | 4.5V ~ 5.5V | - | 76MHz | Board(s) | UCC33420-Q1 |
|
APEK4491EES-01-T-DKEVAL BOARD FOR A4491 |
4,000 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 3 Non-Isolated Outputs | - | - | - | 4.5V ~ 23V | Buck | 550kHz | Board(s) | A4491 |
|

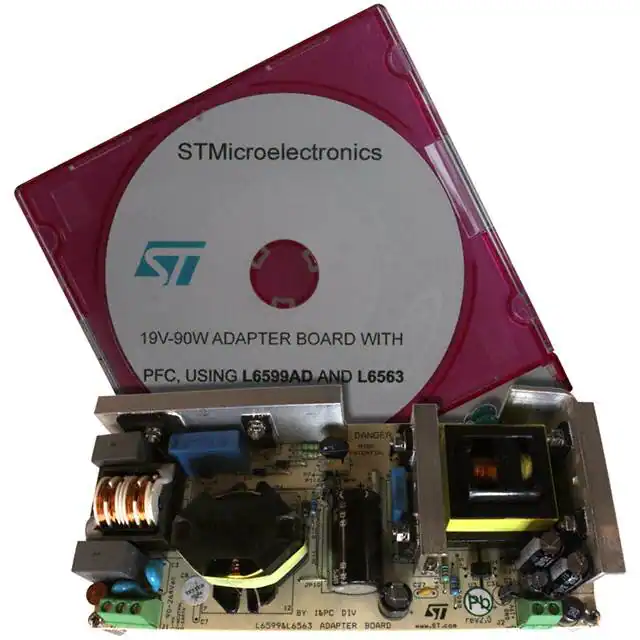

EVAL6599-90WEVAL BOARD FOR L6563 L6599 |
3,787 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Isolated Output | 90 W | 19V | 4.7A | 90 ~ 264 VAC | Resonant | 90kHz | Board(s) | L6563, L6599 |
|

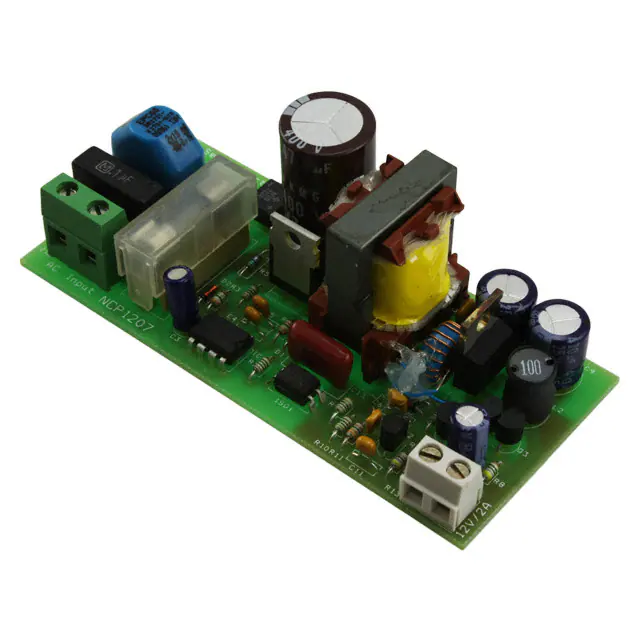

NCP1207AADAPGEVBEVAL BOARD FOR NCP1207 |
2,083 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 24 W | 12V | 2A | 180 ~ 240 VAC | Flyback | 70kHz | Board(s) | NCP1207 |
|

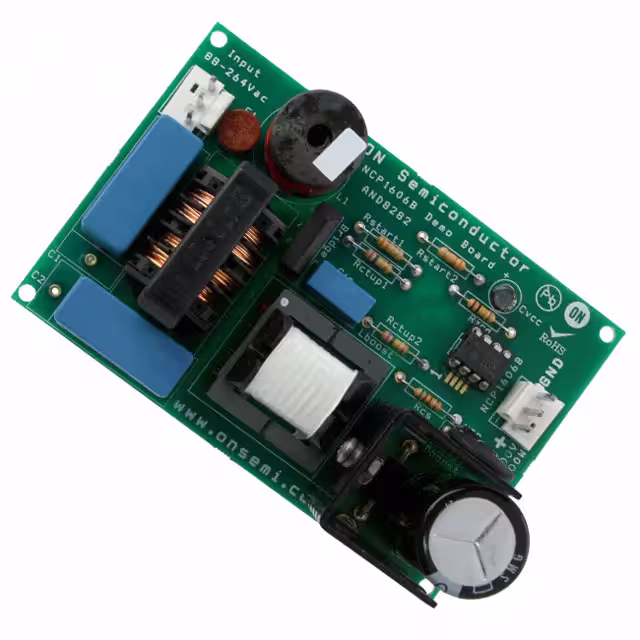

NCP1606BOOSTGEVBEVAL BOARD FOR NCP1606 |
2,052 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 100 W | 400V | 250mA | 88 ~ 264 VAC | Boost | 250kHz | Board(s) | NCP1606 |
|

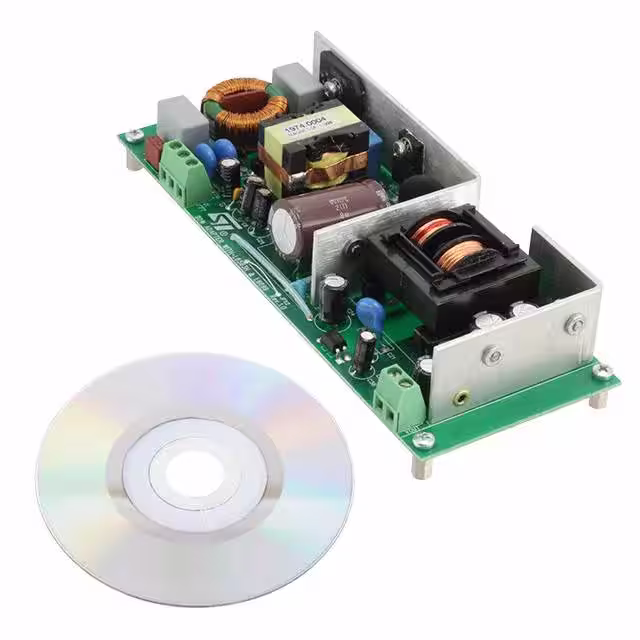

EVL6699-90WADPEVAL BOARD FOR L6563H L6699 |
3,015 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Isolated Output | 90 W | 19V | 4.7A | 90 ~ 264 VAC | Resonant | - | Board(s) | L6563H, L6699 |
|
|
EVQ8875A-VE-00AEVAL BOARD FOR MPQ8875A |
3,920 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 11.5V | 5A | 4.5V ~ 36V | Buck-Boost | - | Board(s) | MPQ8875A |
|
EVALQRCICE2QR0680ZTOBO1EVAL BOARD FOR ICE2QR0680Z |
3,822 | - |
|
Datasheet | CoolMOS™, CoolSET™-Q1 | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 40 W | 20V | - | 85 ~ 265 VAC | Flyback | 100kHz | Board(s) | ICE2QR0680Z |
