DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL6420AEVAL1ZEVAL BOARD FOR ISL6420A |
2,859 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 5.5V ~ 28V | Buck | 300kHz | Board(s) | ISL6420A |
|
NCP5810DGEVBEVAL BOARD FOR NCP5810 |
4,415 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | 1 W | 4.6V, -5V | - | 3.7V | Inverting | 1.75MHz | Board(s) | NCP5810 |
|

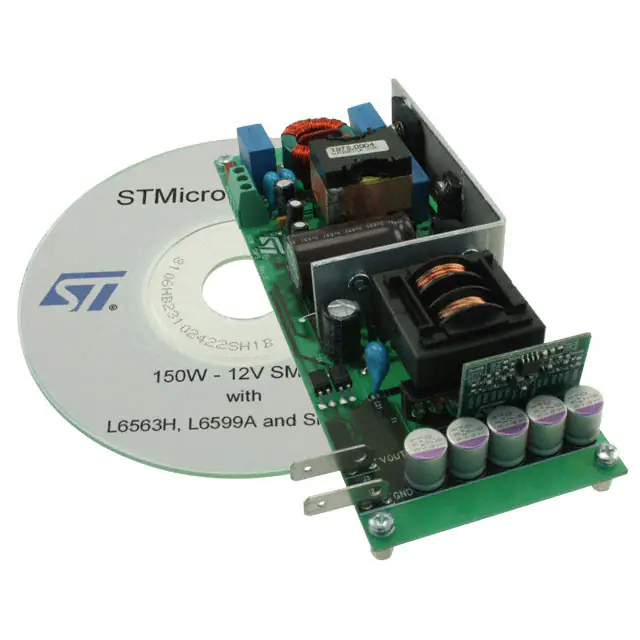

EVL150W-ADP-SREVAL BOARD L6563H L6599A SRK2000 |
4,500 | - |
|
Datasheet | - | Bulk | Obsolete | Power Supply, ATX | 1 Isolated Output | 150 W | 12V | 12.5A | 90 ~ 265 VAC | Resonant | - | Board(s) | L6563H, L6599A, SRK2000 |
|
NCP1337ADAPEVBEVAL BOARD FOR NCP1337 |
4,253 | - |
|
Datasheet | GreenPoint™ | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 60 W | 12V | 5A | 90 ~ 265 VAC | Flyback | 130kHz | Board(s) | NCP1337 |
|
|
ACT41000EVK1-104EVAL BOARD FOR ACT41000 |
2,768 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3V ~ 22V | 4A | 24V ~ 40V | Buck | 450kHz | Board(s) | ACT41000 |
|

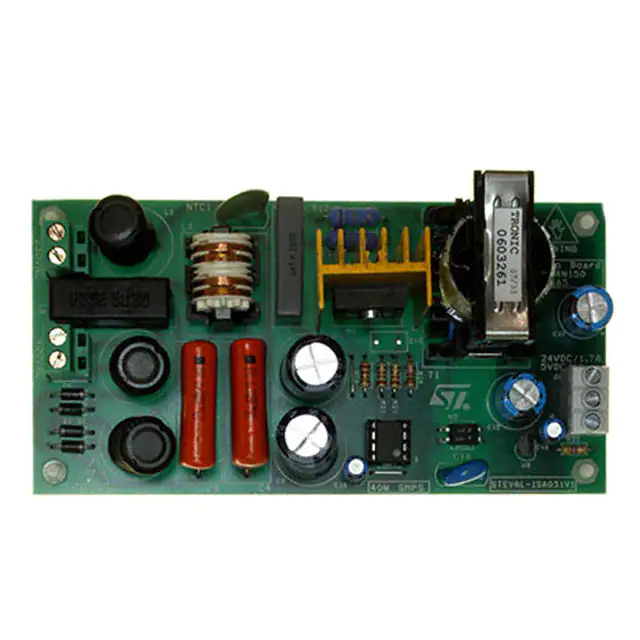

STEVAL-ISA031V1EVAL BOARD FOR L6565 STW4N150 |
4,081 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 40 W | 5V, 24V | 1.7A, 1A | 185 ~ 460 VAC | Flyback | - | Board(s) | L6565, STW4N150 |
|
|
ISL91128IIN-EVKIT1ZEVAL BOARD FOR ISL91128IINZ |
3,099 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 2.4A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91128IINZ |
|
|
MIC28511-1YFL-EVEVAL BOARD FOR MIC285111 |
1,654 | - |
|
Datasheet | HyperLight Load® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 4.6V ~ 60V | Buck | 300kHz | Board(s) | MIC28511-1 |
|
|
ISL81601EVAL2ZEVAL BOARD FOR ISL81601 |
2,254 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 48V | 5A | 32V ~ 60V | Buck-Boost | 200kHz | Board(s) | ISL81601 |
|

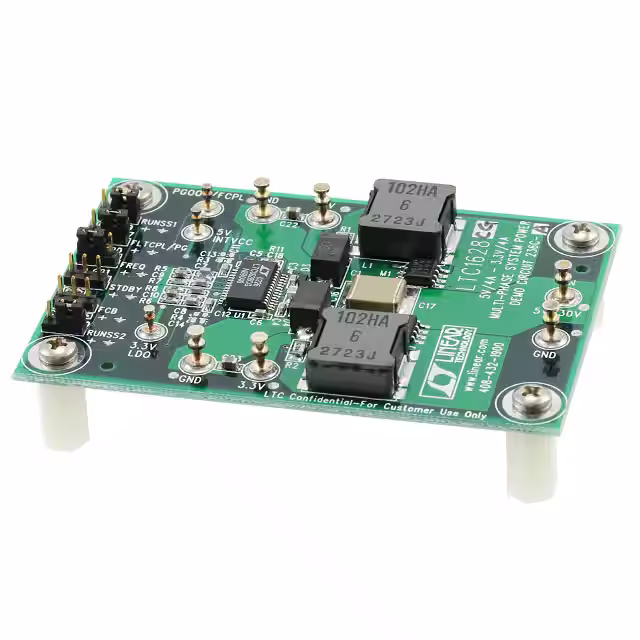

DC236C-AEVAL BOARD FOR LTC1628 |
4,976 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 3.3V, 3.3V, 5V, 5V | 4A, 4A, 50mA, 25mA | 5.2V ~ 30V | Buck | 300kHz | Board(s) | LTC1628 |
|
MAX20029BEVKIT#EVAL BOARD FOR MAX20029B |
1,115 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V ~ 4V | 3A, 3A, 1.5A, 1.5A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20029B |
|
|
MAX20014EVKIT#EVAL BOARD FOR MAX20014 |
1,648 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 1.25V, 1.8V, 5V | 3A, 3A, 500mA | 3V ~ 5.5V | Buck-Boost | 2.2MHz | Board(s) | MAX20014 |
|

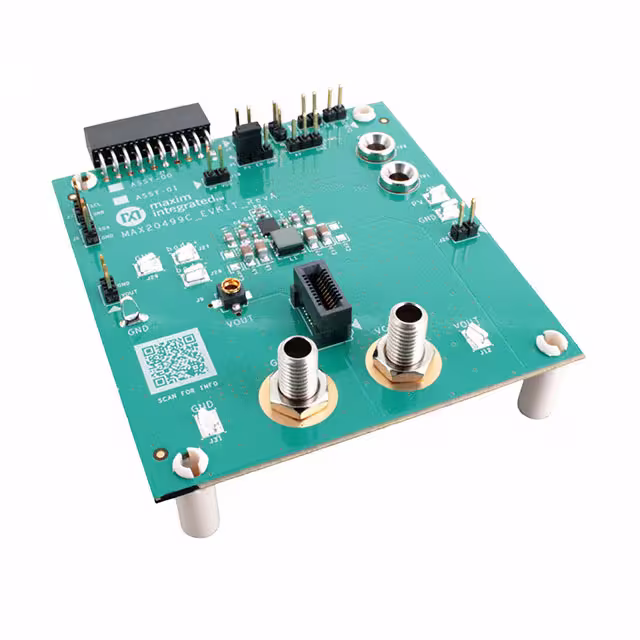

MAX20499CEVKIT#EVAL BOARD FOR MAX20499 |
3,895 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 12A, 5A | 3V ~ 5.5V | Buck | - | Board(s) | MAX20499 |
|
|
ISL81807EVAL1ZEVAL BOARD FOR ISL81807 |
1,534 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 48V | 5A, 5A | 12V ~ 36V | Boost | - | Board(s) | ISL81807 |
|
|
ISL6745EVAL1ZEVAL BOARD FOR ISL6745 |
2,985 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 8A | 36V ~ 75V | Buck | - | Board(s) | ISL6745 |
|

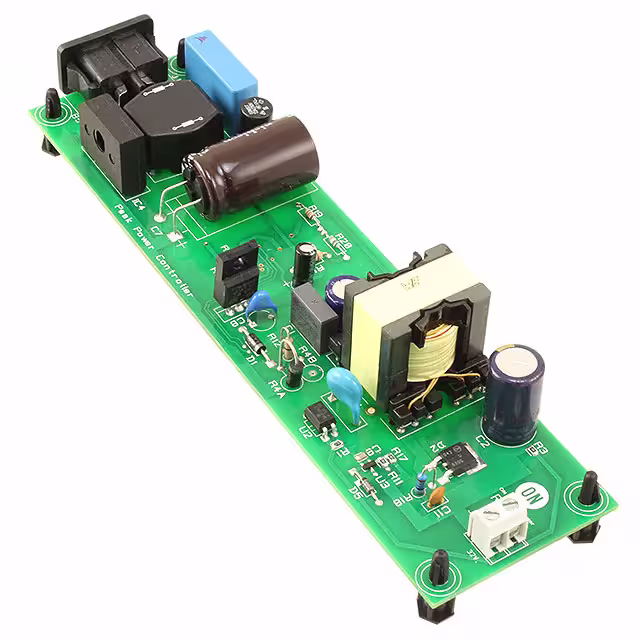

NCP1255PRNGEVBEVAL BOARD FOR NCP1255 |
1,003 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | - | 32V | 800mA | - | Flyback | 65kHz | Board(s) | NCP1255 |
|
|
ISL8014EVAL2ZEVAL BOARD FOR ISL8014 |
1,323 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8014 |
|

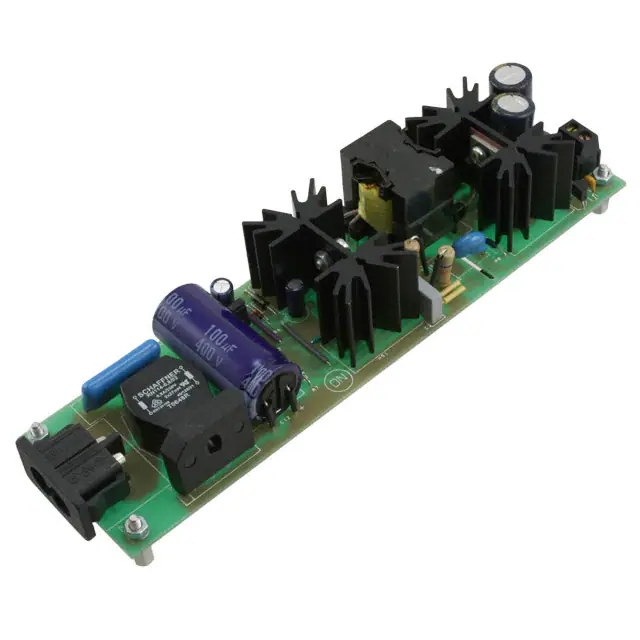

NCP1351ADAPGEVBEVAL BOARD FOR NCP1351 |
4,662 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 57 W | 19V | 3A | 90 ~ 265 VAC | Flyback | 65kHz | Board(s) | NCP1351 |
|
NCP1256B60WGEVBEVAL BOARD FOR NCP1256 |
2,340 | - |
|
Datasheet | - | Box | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | - | 19V | 3.3A | 80 ~ 265 VAC | Flyback | - | Board(s) | NCP1256 |
|

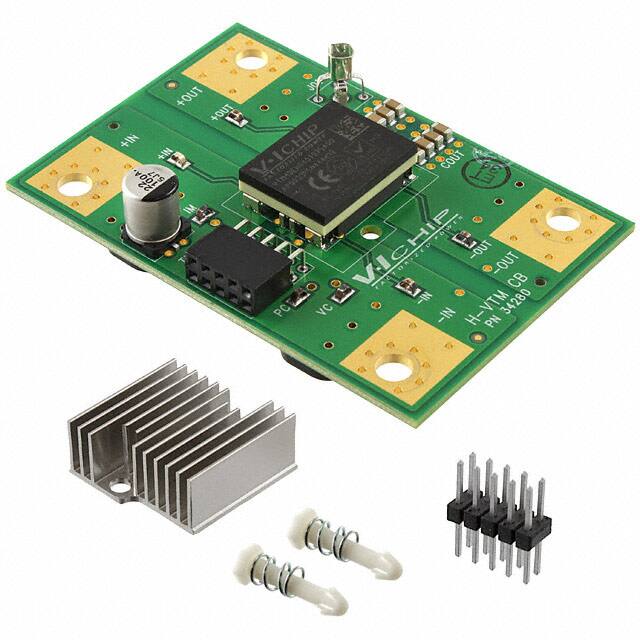

VTD48EH040T025A00EVAL BOARD FOR VTM48EH040X025A00 |
3,055 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 3.5V | 25A | 26V ~ 55V | Buck | 1.65MHz | Board(s) | VTM48EH040x025A00 |
