DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1869AEVAL BOARD FOR LT3667 |
4,648 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 2.5V, 3.3V, 5V | 400mA, 200mA, 200mA | 6V ~ 40V | Boost | - | Board(s) | LT3667 |
|
|
DC027AEVAL BOARD FOR LTC1149 |
4,301 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | LTC1149 |
|
|
DC049A-AEVAL BOARD FOR LT1302 |
2,565 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 500mA | - | Boost | 220kHz | Board(s) | LT1302 |
|
|
DC049A-BEVAL BOARD FOR LT1302 |
2,919 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 5V | Boost | 220kHz | Board(s) | LT1302 |
|

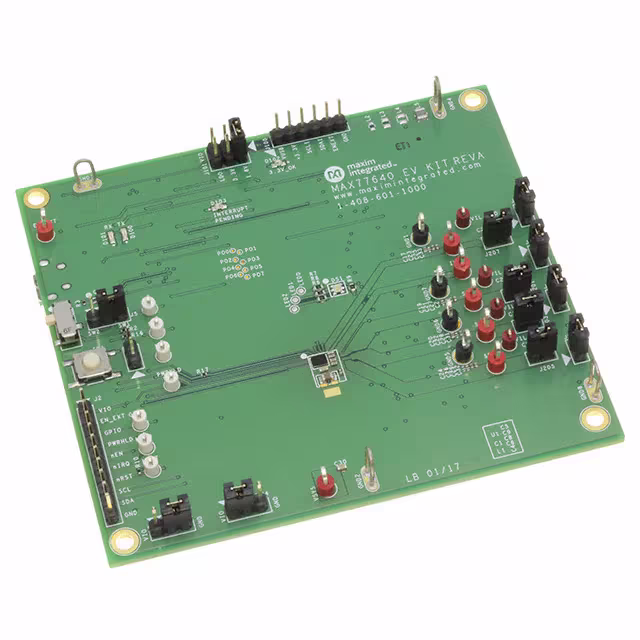

MAX77640EVKIT#EVAL BOARD FOR MAX77640 |
1,901 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down with LDO | 3 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Buck-Boost | - | Board(s) | MAX77640 |
|
MAX77641EVKIT#EVAL BOARD FOR MAX77641 |
3,749 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down with LDO | 3 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Buck-Boost | - | Board(s) | MAX77641 |
|

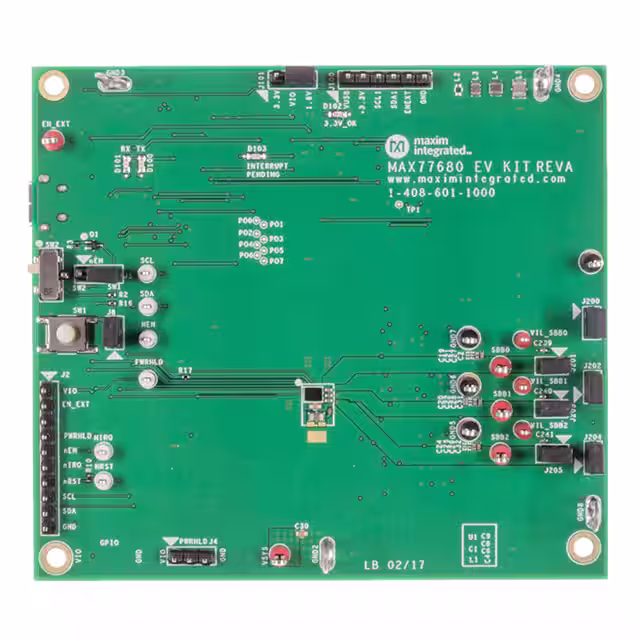

MAX77680EVKIT#EVAL BOARD FOR MAX77680 |
4,042 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | - | 2.7V ~ 5.5V | Buck-Boost | - | Board(s) | MAX77680 |
|
|
DA9220-EVAL1EVAL BOARD FOR DA9220 |
3,964 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.3V ~ 1.9V | 3A, 3A | 2.5V ~ 5.5V | Buck | 4MHz | Board(s), Cable(s), Accessories | DA9220 |
|
|
DA9217-EVAL1EVAL BOARD FOR DA9217 |
2,694 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 0.3V ~ 1.9V | 6A | 2.5V ~ 5.5V | Buck | 4MHz | Board(s), Cable(s), Accessories | DA9217 |
|
MAX20030EVKIT#EVAL BOARD FOR MAX20030 |
4,940 | - |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | Board(s) | MAX20030 |
|
|
SINGLEPHSPOL-RDEVAL BOARD FOR SI8252 |
4,578 | - |
|
Datasheet | - | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 20A | 10V ~ 15V | Buck | 391kHz | Board(s), Cable(s), Accessories | Si8252 |
|
|
ISL6558EVAL2ZEVAL BOARD FOR ISL6558 ISL6609 |
1,810 | - |
|
Datasheet | Endura™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.35V | 30A | 4.5V ~ 5.5V | Buck | 500kHz | Board(s) | ISL6558, ISL6609 |
|

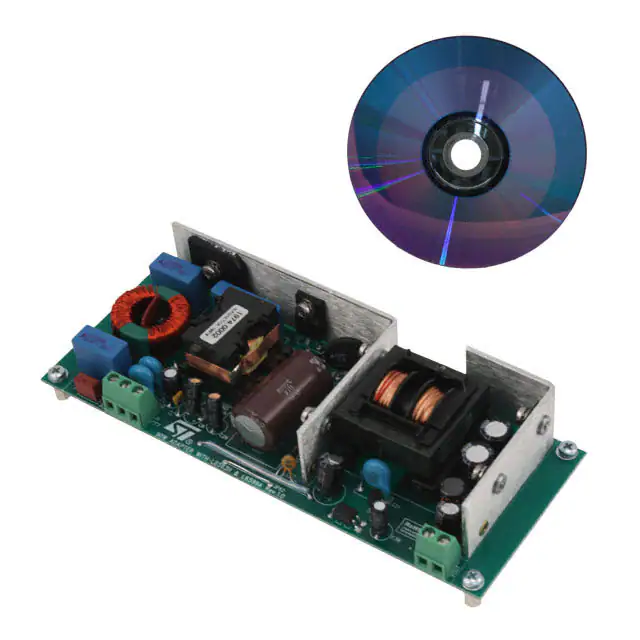

EVL6599A-90WADPEVAL BOARD FOR L6563 L6599 |
2,316 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side and PFC | 1 Isolated Output | 90 W | 19V | 4.7A | 90 ~ 264 VAC | Resonant | 90kHz | Board(s) | L6563, L6599 |
|

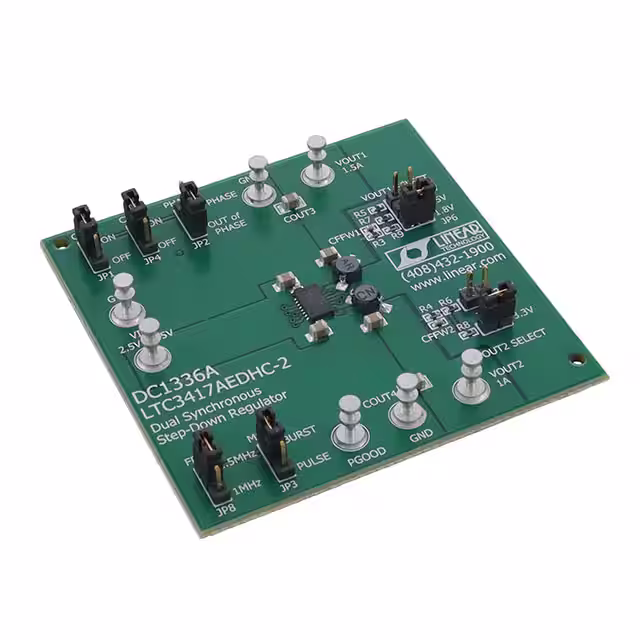

DC1336AEVAL BOARD FOR LTC3417A2 |
1,148 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V ~ 3.3V | 1.5A, 1A | 2.25V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3417A-2 |
|
EVAL2QR2280G1TOBO1EVAL BOARD FOR ICE2QR2280G1 |
4,039 | - |
|
Datasheet | CoolSET®-Q1 | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 20 W | 5V | 4A | 85 ~ 265 VAC | Flyback | 65kHz | Board(s) | ICE2QR2280G-1 |
|
EVALSF3ICE3BS03LJGTOBO1EVAL BOARD FOR ICE3BS03LJG |
4,374 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 60 W | 16V | 3.75A | 85 ~ 265 VAC | Flyback | 65kHz | Board(s) | ICE3BS03LJG |
|
RTKA2108252H00000BUEVAL BOARD FOR RAA210825 |
4,755 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 25A | 5V ~ 12V | Buck | 364kHz | Board(s), Cable(s) | RAA210825 |
|
|
IRDC3651EVAL BOARD FOR IR3651S |
1,796 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 12V ~ 100V | Buck | 100kHz | Board(s) | IR3651S |
|
DM300023EVAL BOARD FOR DSPIC30F2020 |
4,536 | - |
|
Datasheet | dsPIC® | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | - | 7V ~ 15V | Buck | - | Board(s) | dsPIC30F2020 |
|
|
IRDC3622DEVAL BOARD FOR IR3622 IRF6622 |
4,294 | - |
|
Datasheet | iPOWIR™ | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 20A, 20A | 7.5V ~ 14.5V | Buck | 350kHz | Board(s) | IR3622, IRF6622, IRF6629 |
