DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL_DJT090A0X43-SRPZ (4 MODULE)EVAL BOARD FOR DJT090 |
4,100 | - |
|
Datasheet | DLynxII™ | Bulk | Active | DC/DC Converter | 4 Non-Isolated Outputs | 20 W | 0.5V ~ 2V | 90A | 7V ~ 14.4V | - | 100kHz | Board(s) | DJT090 |
|
|
ISL6271AEVAL1EVAL BOARD FOR ISL6271A |
3,184 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 0.85V ~ 1.6V, 1.1V, 1.3V | 800mA, 50mA, 40mA | 2.76V ~ 5.5V | Buck | 1.2MHz | Board(s), Cable(s) | ISL6271A |
|
|
MAX77646EVKIT#EVAL BOARD FOR MAX77646 |
2,617 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down with LDO | 4 Non-Isolated Outputs | - | - | - | 1.8V ~ 3.3V | Buck-Boost | - | Board(s) | MAX77646 |
|
|
MAX16491EVKIT#EVAL BOARD FOR MAX16491 |
2,537 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 9A | 4.5V ~ 16V | Buck | 860kHz | Board(s) | MAX16491 |
|

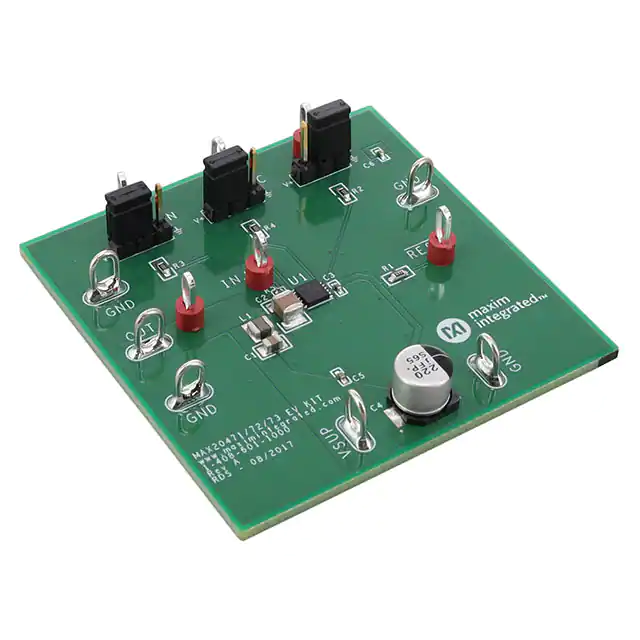

MAX20471EVKIT#EVAL BOARD FOR MAX20471 |
2,707 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.8V, 5.25V | 500mA | 3V ~ 4V | Boost | 2.2MHz | Board(s) | MAX20471 |
|

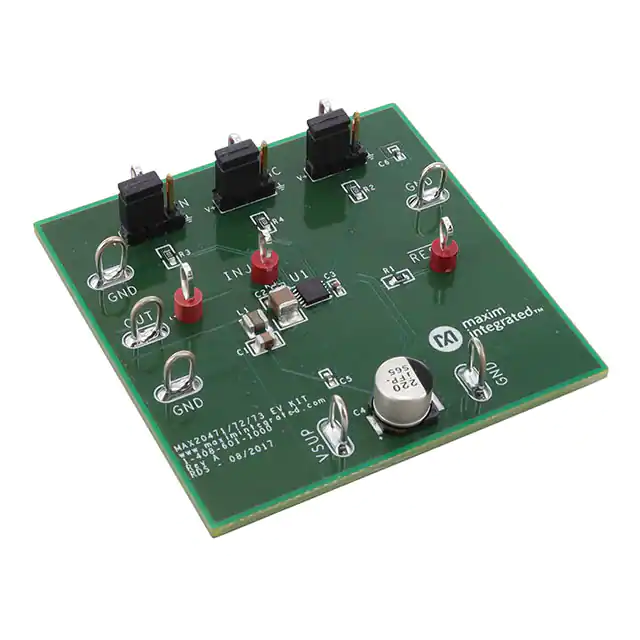

MAX20472EVKIT#EVAL BOARD FOR MAX20472 |
3,833 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.8V, 5.25V | 500mA | 3V ~ 4V | Boost | 2.2MHz | Board(s) | MAX20472 |
|
|
MAX20419EVKIT#EVAL BOARD FOR MAX20419 |
2,554 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 1.25V, 2.3V, 5V | 2A, 2A, 750mA | 3V ~ 5.5V | Boost, Buck | 2.2MHz | Board(s) | MAX20419 |
|

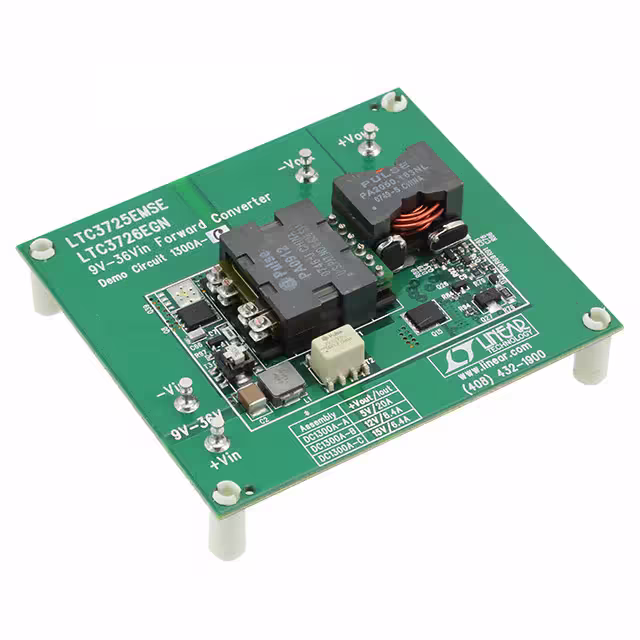

DC1300A-CEVAL BOARD FOR LTC3725 LTC3726 |
4,272 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 15V | 6.7A | 9V ~ 36V | Forward Converter | 250kHz | Board(s) | LTC3725, LTC3726 |
|
CRD-060DD17P-2EVAL BOARD FOR C2M1000170D |
4,698 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 2 Isolated Outputs | 60 W | 12V, 12V | 4A, 100mA | 300V ~ 1000V | Flyback | - | Board(s) | C2M1000170D |
|
|
MAX16993EVKIT#EVAL BOARD FOR MAX16993 |
1,676 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 3.3V, 5V | 3A, 3A, 3A | 3.5V ~ 36V | Buck | 2.1MHz | Board(s) | MAX16993 |
|
|
MAX20008EEVKIT#EVAL BOARD FOR MAX20008E |
1,285 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 3.5V ~ 36V | Buck | 400kHz | Board(s) | MAX20008E |
|

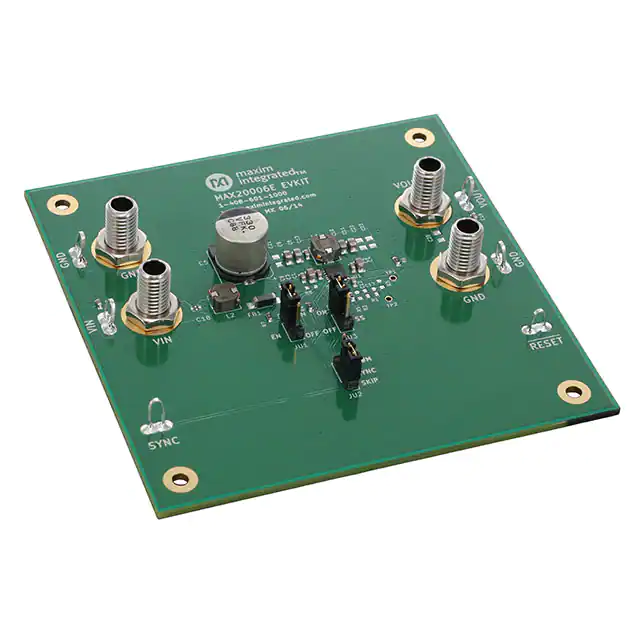

MAX20006EEVKIT#EVAL BOARD FOR MAX20006E |
4,397 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 3.5V ~ 36V | Buck | 2.2MHz | Board(s) | MAX20006E |
|
|
DC3219AEVAL BOARD FOR LT8625S |
1,131 | - |
|
Datasheet | Silent Switcher®3 | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 8A | 2.7V ~ 18V | Buck | - | Board(s) | LT8625S |
|
|
DC1174A-BEVAL BOARD FOR LTC3725 LTC3726 |
3,465 | - |
|
Datasheet | µModule® | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 50 W | 12V | 4.2A | 9V ~ 36V | Forward Converter | 200kHz | Board(s) | LTC3725, LTC3726 |
|
|
DC1174A-AEVAL BOARD FOR LTC3725 LTC3726 |
4,933 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Isolated Output | 50 W | 5V | 10A | 9V ~ 36V | Forward Converter | 200kHz | Board(s) | LTC3725, LTC3726 |
|
|
MAX15258DL2EVKIT#EVAL BOARD FOR MAX15258 |
1,270 | - |
|
Datasheet | - | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | 48V | - | -36V ~ -60V | Boost | - | Board(s) | MAX15258 |
|

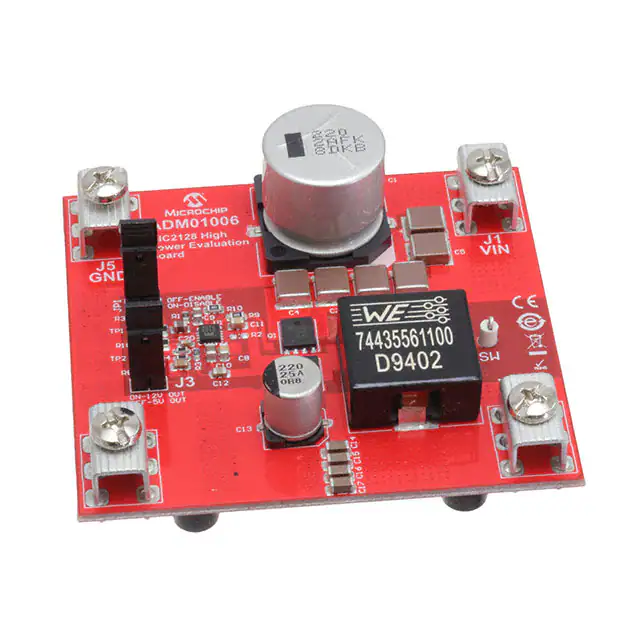

ADM01006MIC2128 HIGH POWER EVAL BOARD |
2,553 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 10A | - | - | - | Board(s) | - |
|

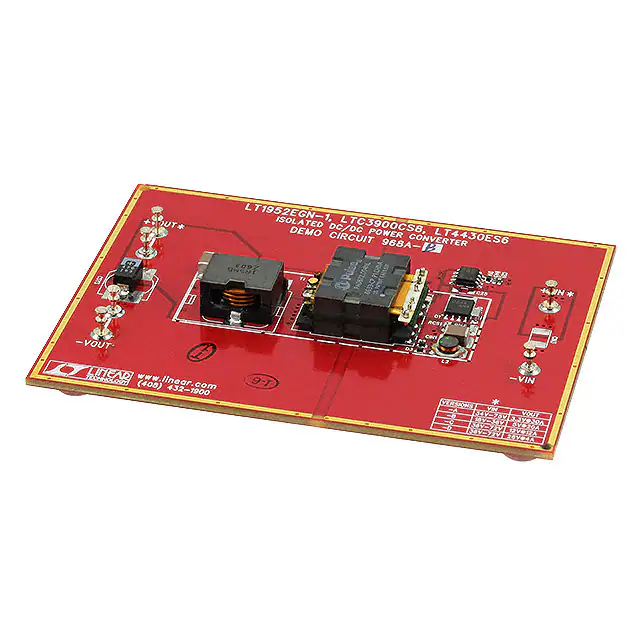

DC968A-BEVAL BOARD FOR LT19521 LT4430 |
3,215 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 20A | 18V ~ 36V | Buck | 300kHz | Board(s) | LT1952-1, LT4430, LTC3900 |
|

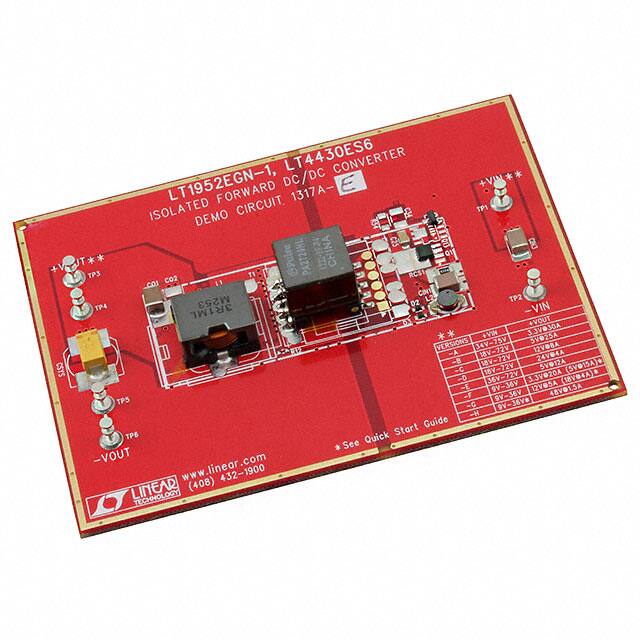

DC1317A-EEVAL BOARD FOR LT19521 |
3,954 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 12A | 36V ~ 72V | Forward Converter | 260kHz | Board(s) | LT1952-1 |
|

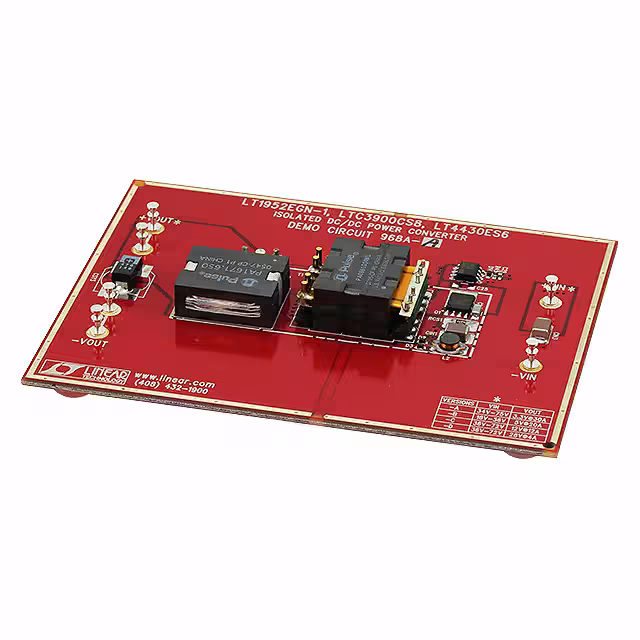

DC968A-AEVAL BOARD FOR LT19521 LT4430 |
3,111 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 30A | 36V ~ 75V | Buck | 300kHz | Board(s) | LT1952-1, LT4430, LTC3900 |
