DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL81805EVAL3ZEVAL BOARD FOR ISL81805 |
4,926 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 5V, 12V | 20A, 20A | -36V ~ -60V | Boost | 200kHz | Board(s) | ISL81805 |
|
|
I6A10A-001-EVK-S1PXEVAL BOARD FOR I6A4W010A033V001R |
4,474 | - |
|
Datasheet | i6A4W | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 250 W | 3.3V ~ 40V | 10A | 9V ~ 53V | Buck | 400kHz | Board(s) | i6A4W010A033V-001-R |
|
|
ISL81806EVAL1ZEVAL BOARD FOR ISL81806 |
2,595 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 18V ~ 80V | Buck | 500kHz | Board(s) | ISL81806 |
|

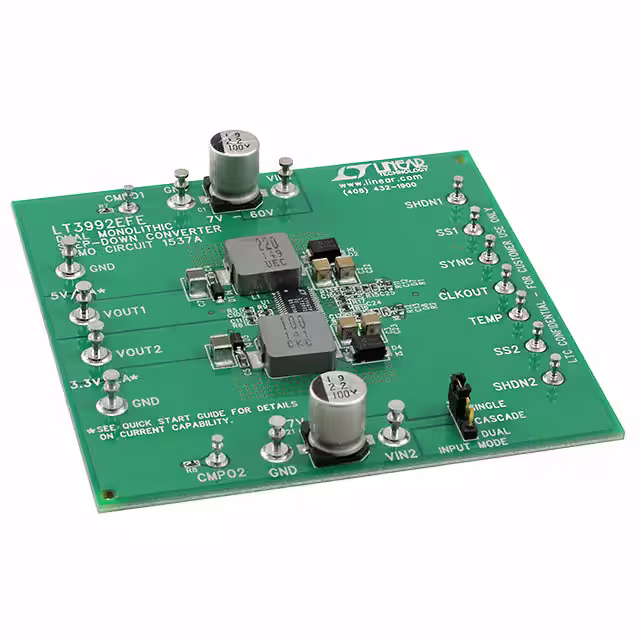

DC1537AEVAL BOARD FOR LT3992 |
2,550 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A, 3A | 7V ~ 60V | Buck | 300kHz | Board(s) | LT3992 |
|
EVLCMB1-AIO210WEVAL BOARD FOR STCMB1 |
3,967 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 210 W | 12V | 17.5A | 90 ~ 264 VAC | - | - | Board(s) | STCMB1 |
|

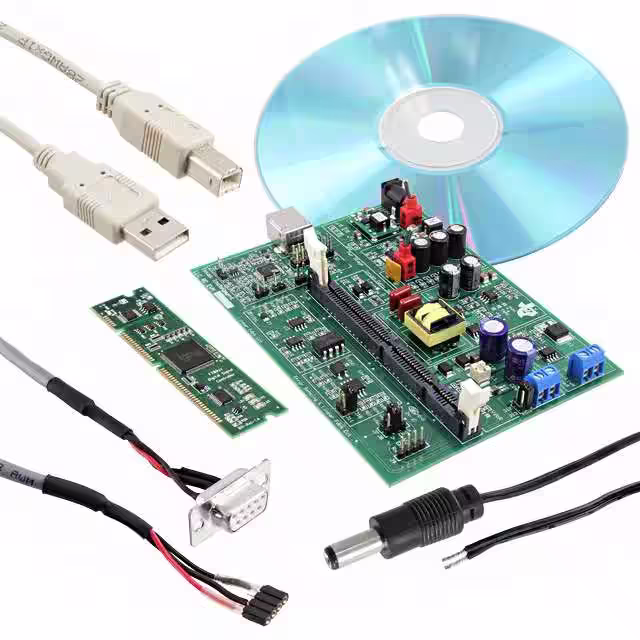

TMDSRESDCKITEVAL BOARD FOR TMDSCNCD2808 |
3,187 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 15 W | 12V | - | 16V ~ 22V | Resonant | - | Board(s) | TMDSCNCD2808, TMDSCNCD28335, TMDXCNCD28027 |
|

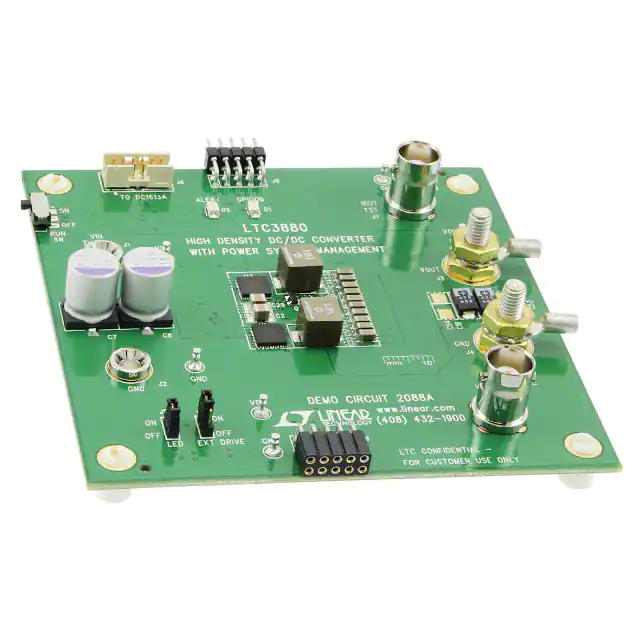

DC2088AEVAL BOARD FOR LTC3880 |
3,035 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 50A | 7V ~ 14V | Buck | 425kHz | Board(s) | LTC3880 |
|

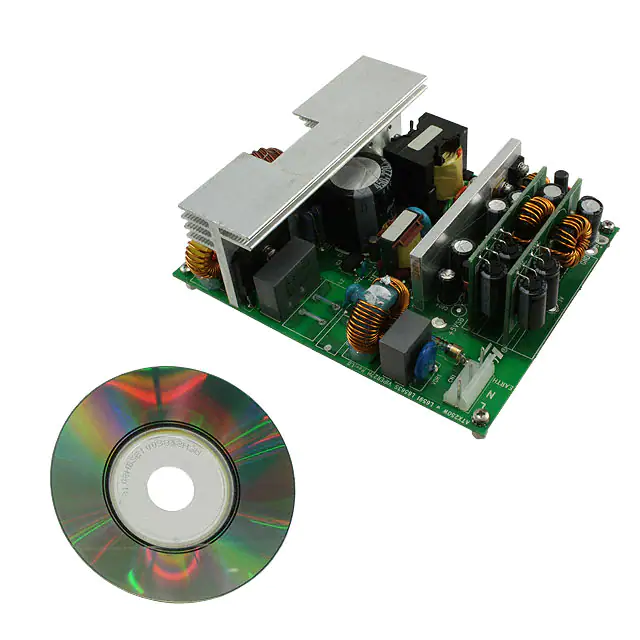

STEVAL-ISA145V1EVAL BOARD FOR L6563S L6591 |
4,614 | - |
|
Datasheet | VIPer™ plus | Box | Obsolete | Power Supply, ATX | 4 Isolated Outputs | 250 W | 3.3V, 5V, 5V ,12V | 13.5A, 12A, 8A, 2A | 88 ~ 264 VAC | Flyback | 80kHz | Board(s) | L6563S, L6591, L6727, VIPer27H |
|
|
ISL91211BIK-REFZEVAL BOARD FOR ISL91211B |
4,967 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 4 Non-Isolated Outputs | - | - | - | - | Buck | - | Board(s) | ISL91211B |
|
|
ISL62883CEVAL2ZEVAL BOARD FOR ISL62883C |
1,992 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 75A | 4.5V ~ 20V | Buck | 300kHz | Board(s) | ISL62883C |
|
|
ISL6269AEVAL2ZEVAL BOARD FOR ISL6269A ISL6269B |
2,062 | - |
|
Datasheet | Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V or 1.2V | 5A | 5V ~ 25V | Buck | 300kHz or 600kHz | Board(s) | ISL6269A, ISL6269B |
|

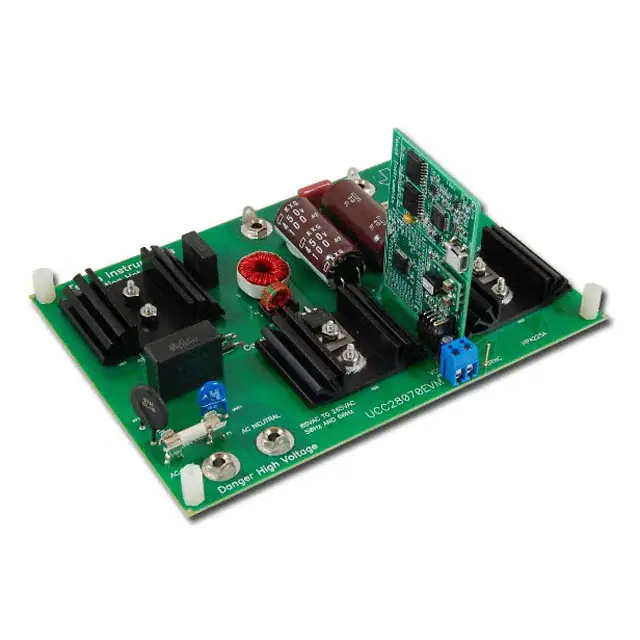

TMDSHVPFCKITEVAL BOARD FOR TMS320F28027 |
3,331 | - |
|
Datasheet | C2000™, Piccolo™ | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 300 W | 390V | - | 85 ~ 265 VAC | - | - | Board(s) | TMS320F28027 |
|

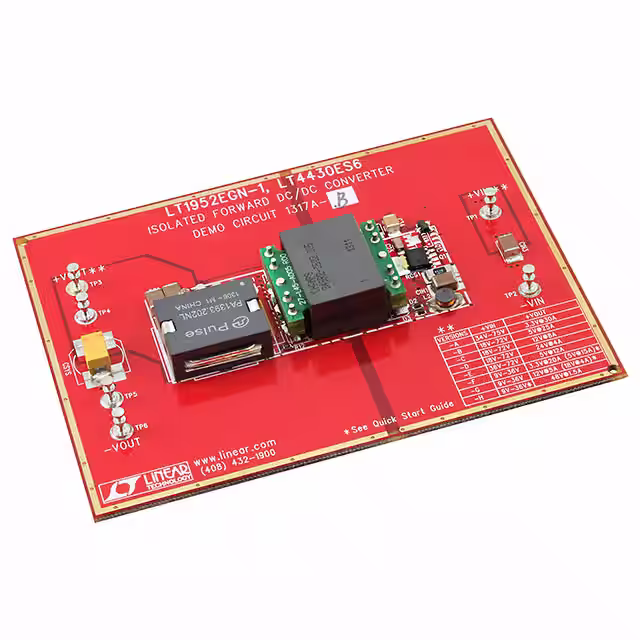

DC1317A-BEVAL BOARD FOR LT19521 |
1,907 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 25A | 18V ~ 72V | Forward Converter | 200kHz | Board(s) | LT1952-1 |
|
|
DC1317A-GEVAL BOARD FOR LT19521 |
1,471 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 12V | 8A | 9V ~ 36V | Buck-Boost | 200kHz | Board(s) | LT1952-1 |
|

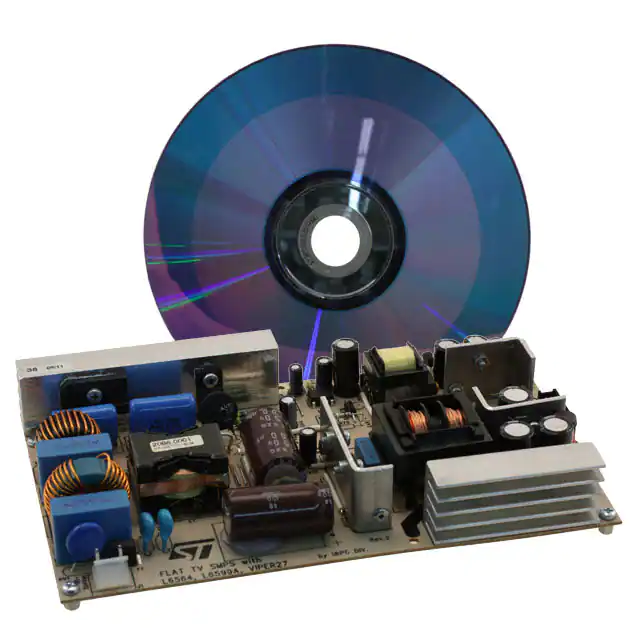

EVL170W-FTVEVAL BOARD FOR VIPER27LN L6564 |
2,524 | - |
|
Datasheet | VIPER™ | Bulk | Active | Power Supply with PFC | 2 Isolated Outputs | 170 W | 5V, 12V, 24V | 6A, 2A, 2A | 90 ~ 264 VAC | Flyback | 130kHz | Board(s) | Viper27LN, L6564, L6599A |
|

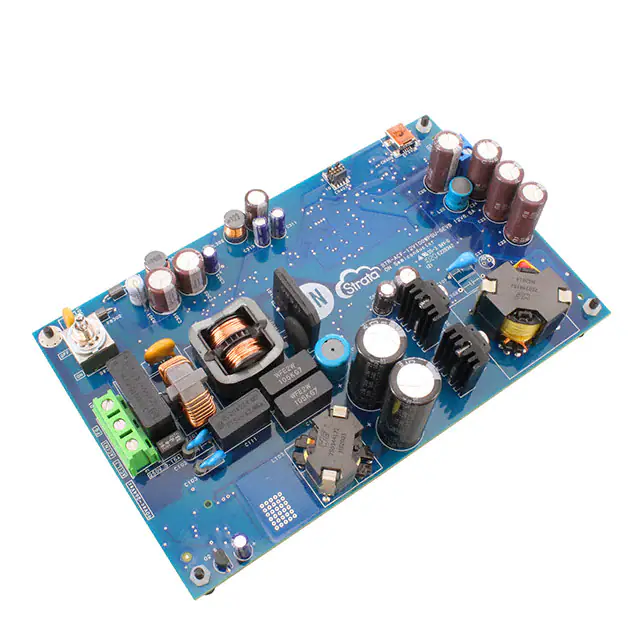

STR-ACF-12V100WPSU-GEVBEVAL BOARD FOR NCP1568 |
4,364 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 100 W | 12V | 8.5A | 90 ~ 264 VAC | Flyback | - | Board(s) | NCP1568 |
|
NCP1337ADAPGEVBEVAL BOARD FOR NCP1337 |
4,405 | - |
|
Datasheet | GreenPoint™ | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 60 W | 12V | 5A | 90 ~ 265 VAC | Flyback | 130kHz | Board(s) | NCP1337 |
|
|
ISL62883EVAL2ZEVAL BOARD FOR ISL62883 |
3,935 | - |
|
Datasheet | Robust Ripple Regulator™ (R3) | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.3V ~ 1.5V | 75A | 4.5V ~ 20V | Buck | 300kHz | Board(s) | ISL62883 |
|

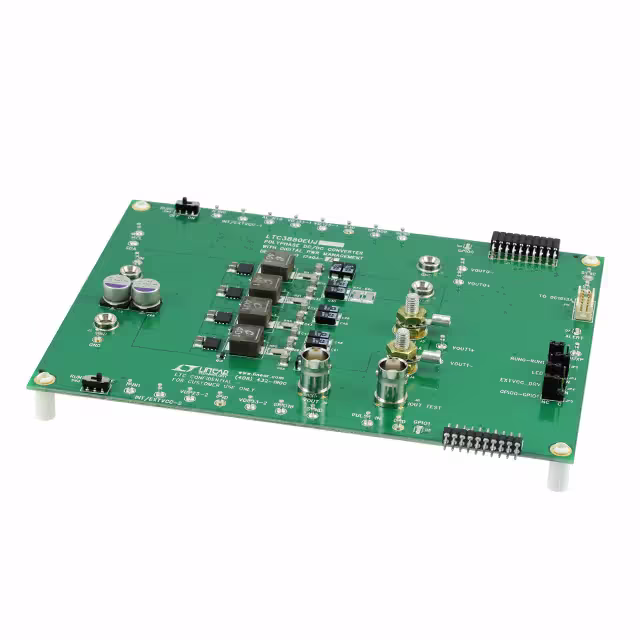

DC1740A-AEVAL BOARD FOR LTC3880 |
1,458 | - |
|
Datasheet | PolyPhase® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 80A | 7V ~ 14V | Buck | 425kHz | Board(s) | LTC3880 |
|

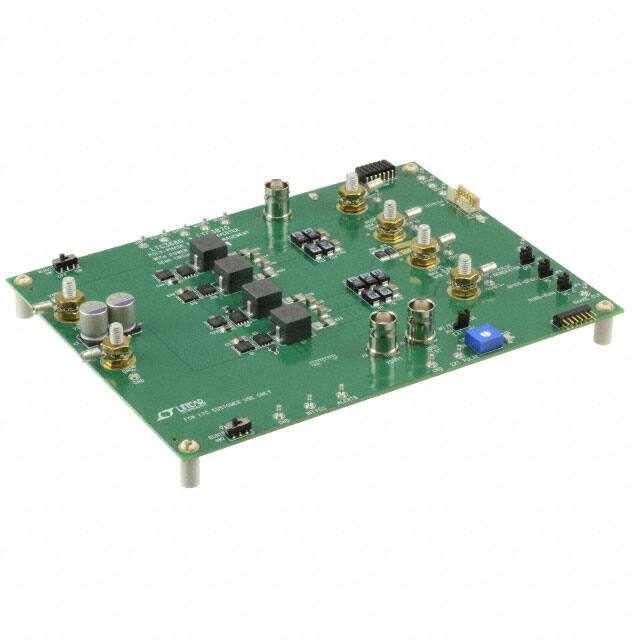

DC2089A-AEVAL BOARD FOR LTC3870 LTC3880 |
2,487 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 80A | 7V ~ 14V | Buck | 350kHz | Board(s) | LTC3870, LTC3880 |
