DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
I6A10A-001-EVK-S1CCEVAL BOARD FOR I6A4W010A033V001R |
2,695 | - |
|
Datasheet | i6A4W | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 250 W | 3.3V ~ 40V | 10A | 9V ~ 53V | Buck | 400kHz | Board(s) | i6A4W010A033V-001-R |
|
|
PSV-EBAD-65USB65W USB-C EVALUATION BOARD |
3,144 | - |
|
Datasheet | PSV-EBAD | Active | AC/DC Converter | 1 Isolated Output | 65 W | 5 ~ 20V | 3.25A | 90 ~ 265 VAC | Flyback | 125kHz | Board(s) | - | |
|
|
PSV-EBAD-150-DS150W AC TO DC EVALUATION BOARD F |
2,632 | - |
|
Datasheet | PSV-EBAD | Active | AC/DC Converter | - | 150 W | 65V ~ 380V | - | 85 ~ 265 VAC | - | 42kHz | Board(s) | - | |
|

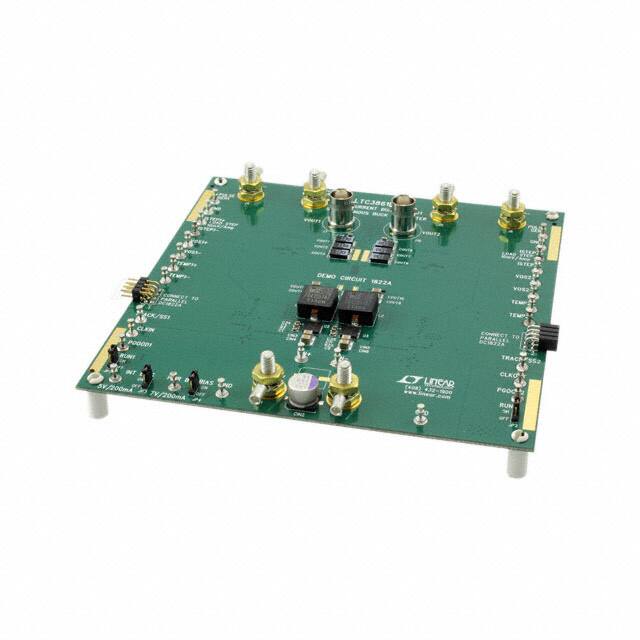

DC1822AEVAL BOARD FOR LTC3861 |
2,730 | - |
|
Datasheet | PolyPhase® | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 25A, 25A | 7V ~ 14V | Buck | 500kHz | Board(s) | LTC3861 |
|
|
DC2543AEVAL BOARD FOR LTC7820 |
4,756 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 10A | 36V ~ 60V | Buck | 200kHz | Board(s) | LTC7820 |
|
|
ISL81805EVAL1ZEVAL BOARD FOR ISL81805 |
2,590 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 5A | 9V ~ 36V | Boost | 200kHz | Board(s) | ISL81805 |
|
|
MAX16903EVKIT+EVAL BOARD FOR MAX16903 |
1,683 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 42V | Buck | 2.1MHz | Board(s) | MAX16903 |
|

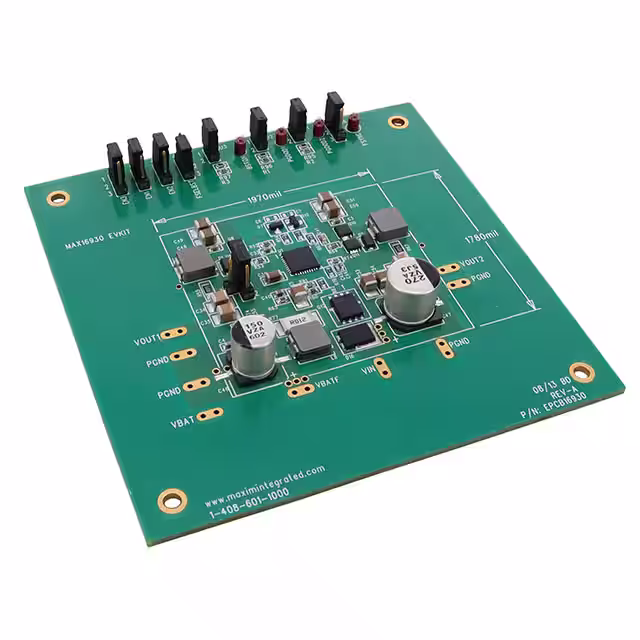

MAX16930EVKIT#EVAL BOARD FOR MAX16930 |
3,646 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 5A, 5A | 3.5V ~ 36V | Buck | - | Board(s) | MAX16930 |
|
|
ISL81805EVAL2ZEVAL BOARD FOR ISL81805 |
4,179 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 24V, 48V | 5A, 3A | 9V ~ 36V | Boost | 200kHz | Board(s) | ISL81805 |
|
|
MAX20430EVKITSYS#EVAL BOARD FOR MAX20430 |
4,958 | - |
|
Datasheet | - | Box | Active | DC/DC Converter | 4 Non-Isolated Outputs | - | 1V, 1.2V, 3.3V, 5V | 3A, 3A, 2.5A, 500mA | 3.5V ~ 36V | - | 2.1MHz | Board(s) | MAX20430 |
|

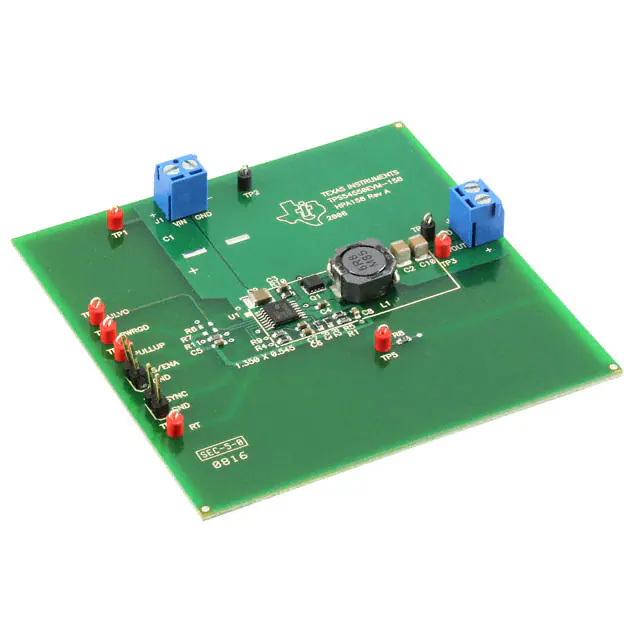

TPS54550EVM-158EVAL BOARD FOR TPS54550 |
2,956 | - |
|
Datasheet | SWIFT™ | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 6V ~ 17V | Buck | 700kHz | Board(s) | TPS54550 |
|
LM2743-19AEVALEVAL BOARD FOR LM2743 |
4,137 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V ~ 3.3V | 19A | 8V ~ 14V | Buck | 300kHz | Board(s) | LM2743 |
|

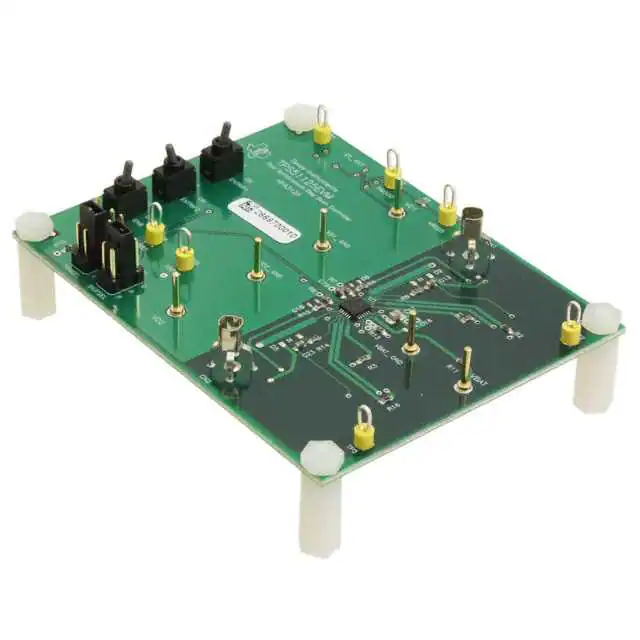

TPS51125EVMEVAL BOARD FOR TPS51125 |
2,816 | - |
|
Datasheet | D-CAP™ | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 8A, 8A | 8V ~ 25V | Buck | 245kHz, 305kHz | Board(s) | TPS51125 |
|

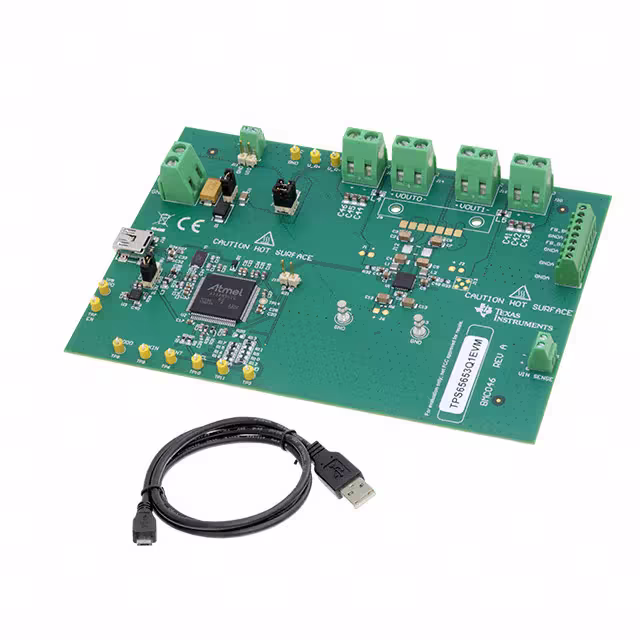

TPS65653Q1EVMEVAL BOARD FOR TPS65653Q1 |
4,671 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 3A, 3A | 2.8V ~ 5.5V | Buck | - | Board(s), Cable(s) | TPS65653-Q1 |
|
|
LM5175EVM-HDEVAL BOARD FOR LM5175 |
3,254 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 72 W | 12V | 6A | 5.5V ~ 42V | Buck-Boost | 400kHz | Board(s) | LM5175 |
|

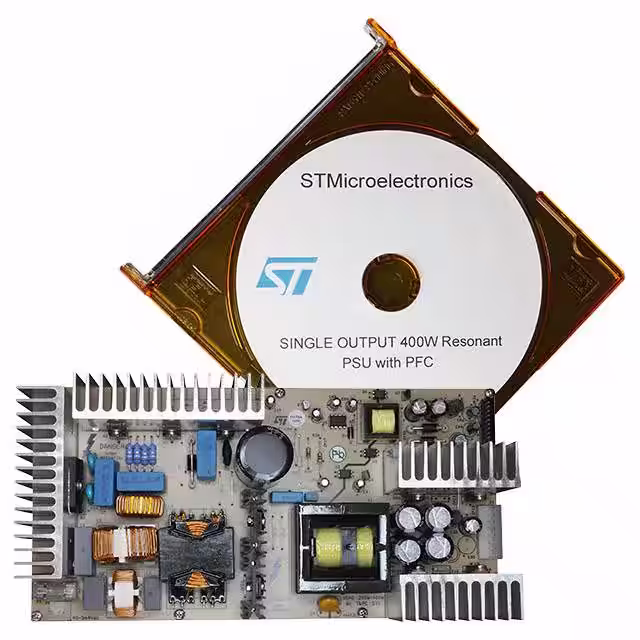

EVAL6599-400W-SEVAL BOARD FOR L6563 L6599 |
4,396 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side and PFC | 3 Isolated Outputs | 400 W | 3.3V, 5V, 200V | 2A, 1A, 700mA | 90 ~ 264 VAC | Resonant | - | Board(s) | L6563, L6599 |
|

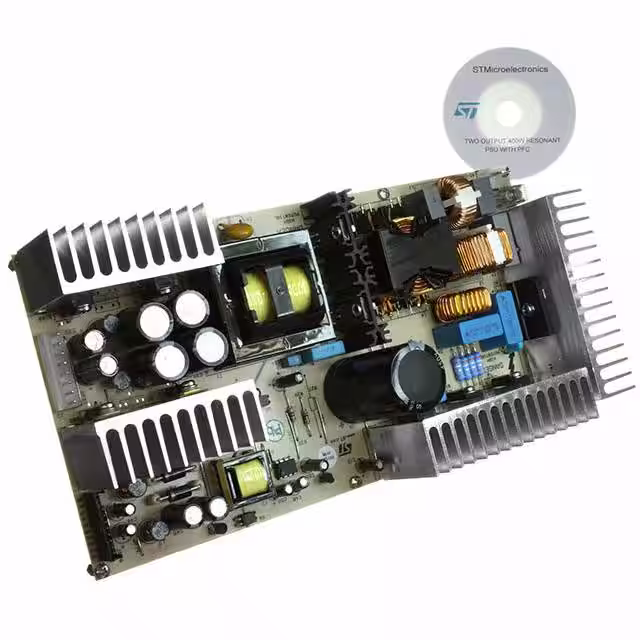

EVAL6599-400W-TEVAL BOARD FOR L6563 L6599 |
3,219 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side and PFC | 4 Isolated Outputs | 400 W | 3.3V, 5V, 75V, 200V | 1.5A, 1A, 1A, 700mA | 90 ~ 264 VAC | Resonant | 120kHz | Board(s) | L6563, L6599 |
|

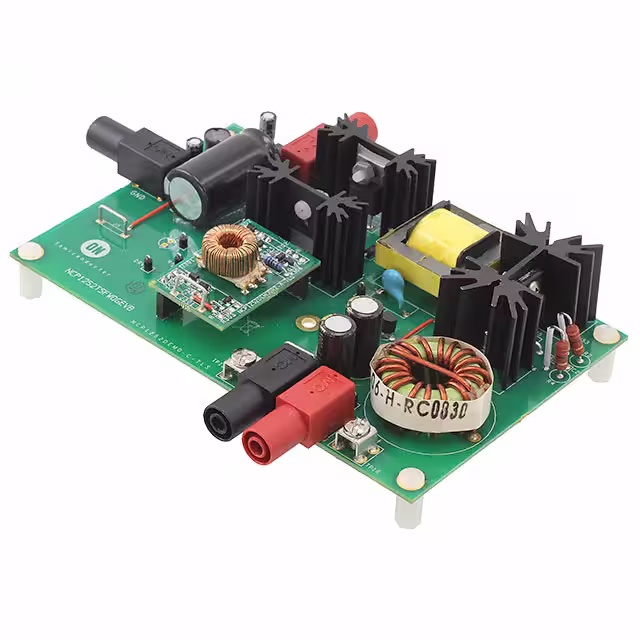

NCP1252TSFWDGEVBEVAL BOARD FOR NCP1252 |
1,909 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 12V | 10A | - | Forward Converter | - | Board(s) | NCP1252 |
|

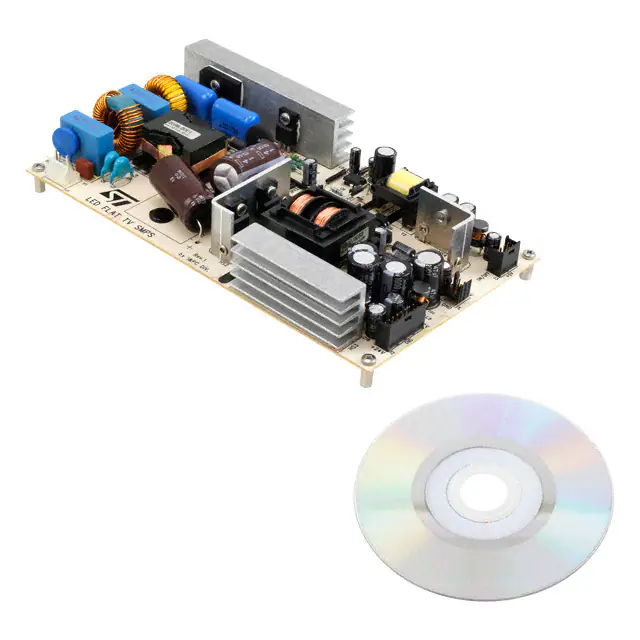

EVL185W-LEDTVEVAL BOARD L6564 L6599A VIPER27 |
2,889 | - |
|
Datasheet | VIPER™ | Bulk | Obsolete | Power Supply with PFC | 4 Isolated Outputs | 185 W | 5V, 12V, 24V, 130V | 4A, 2A, 2A, 620mA | 90 ~ 264 VAC | - | - | Board(s) | L6564, L6599A, VIPer27 |
|

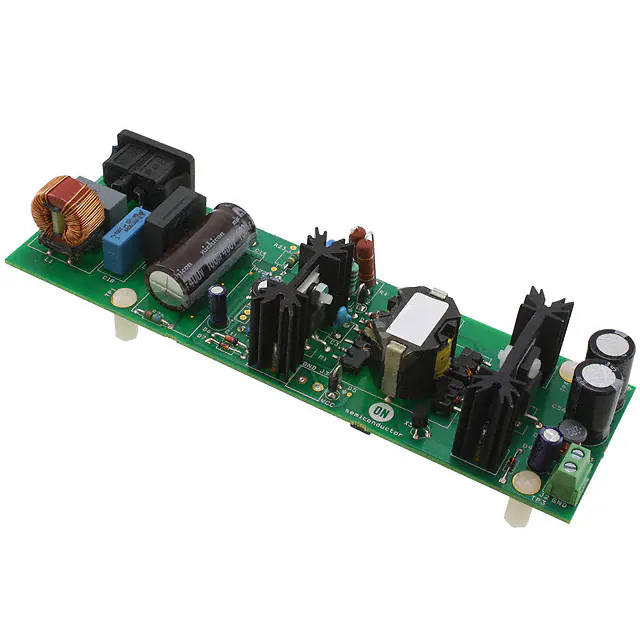

NCP1380DGEVBEVAL BOARD FOR NCP1380 |
3,719 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 19V | 4A | 85 ~ 265 VAC | Flyback | - | Board(s) | NCP1380 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
What DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components can I source from EGOO?
You can browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
