DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

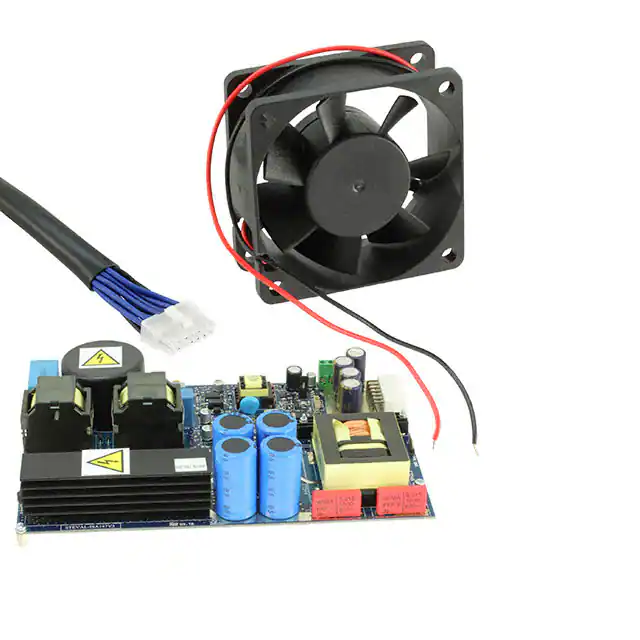

STEVAL-ISA147V3EVAL BOARD FOR STM32F051K8 |
3,328 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 500 W | 12V | - | 90 ~ 264 VAC | Flyback | - | Board(s) | STM32F051K8, STM32F334C8 |
|
TPS2384EVM-152EVAL BOARD FOR TPS2384 |
3,909 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 4 Isolated Outputs | - | - | - | 44V ~ 57V | - | - | Board(s) | TPS2384 |
|
|
VTD48EH120T010B00EVAL BOARD FOR VTM48EH120X010B00 |
4,560 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Active | DC/DC, Step Down with LDO | 1 Isolated Output | 135 W | 12V | 10A | 26V ~ 55V | Buck | 1.5MHz | Board(s) | VTM48EH120x010B00 |
|
|
MAX8597EVKITEVAL BOARD FOR MAX8597 |
2,075 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 6V ~ 12V | 10A | 10.8V ~ 13.2V | Buck | 600kHz | Board(s) | MAX8597 |
|
|
VTD48EH060T020A00EVAL BOARD FOR VTM48EH060X020A00 |
3,697 | - |
|
Datasheet | VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 137 W | 6V | 20A | 26V ~ 55V | Buck | 1.5MHz | Board(s) | VTM48EH060x020A00 |
|
|
STR-100V-BUCK-NCP1034-GEVBEVAL BOARD FOR NCP1034 |
3,260 | - |
|
Datasheet | Strata | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 100V | Buck | 500kHz | Board(s) | NCP1034 |
|
|
ISL8240MEVAL3ZEVAL BOARD FOR ISL8240M |
1,898 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 2.5V | 20A, 20A | 4.5V ~ 20V | Buck | 350kHz | Board(s) | ISL8240M |
|

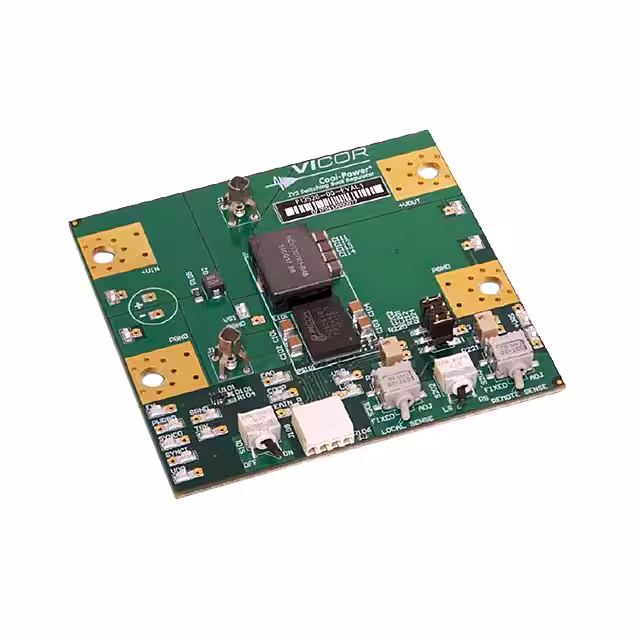

PI3523-00-EVAL1EVAL BOARD FOR PI352300 |
4,210 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 22A | 30V ~ 60V | Buck | 500kHz | Board(s) | PI3523-00 |
|

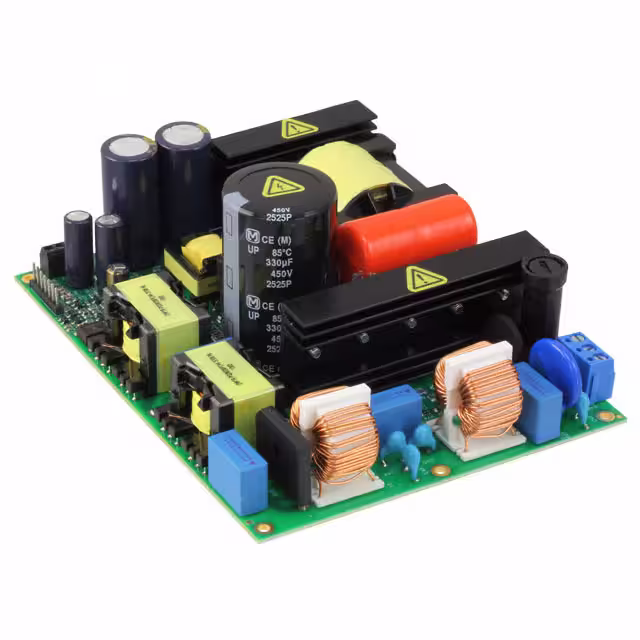

UCC25600EVM-644EVAL BOARD FOR UCC25600 |
2,269 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 600 W | 50V | 12A | 108 ~ 265 VAC | Resonant | - | Board(s) | UCC25600 |
|

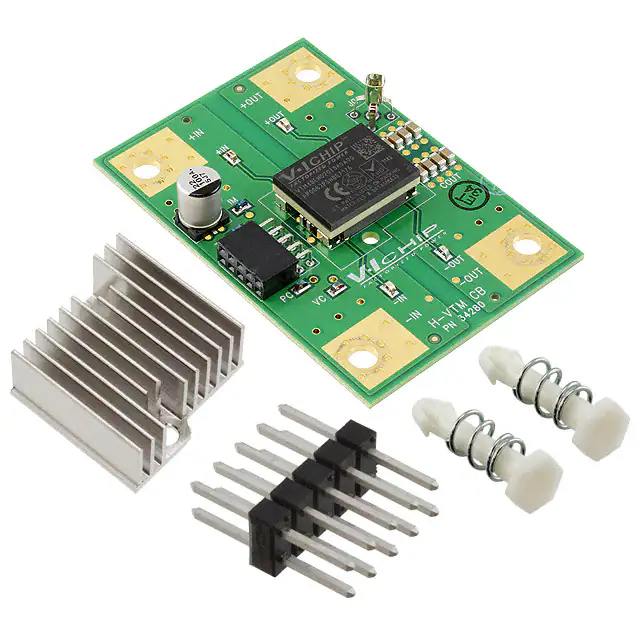

VTD48EH020T040A00EVAL BOARD FOR VTM48EH020X040A00 |
1,715 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 73.2 W | 1.83V | 40A | 26V ~ 55V | Buck | 1.8MHz | Board(s) | VTM48EH020x040A00 |
|
|
PD70101EVB15F-12EVAL BOARD FOR PD70101 |
4,768 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 12V | 1.1A | 44V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70101 |
|
|
PD70101EVB3FEVAL BOARD FOR PD70101 |
1,696 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 3.3V | 1A | 44V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70101 |
|
|
PD70101EVB6FEVAL BOARD FOR PD70101 |
1,177 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 5V | 1.2A | 44V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70101 |
|
|
PD70201EVB25F-3EVAL BOARD FOR PD70201 |
3,795 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 3.3V | 7.5A | 36V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201 |
|
|
PD70201EVB25FW-3EVAL BOARD FOR PD70201A |
2,447 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 3.3V | 7.5A | 42V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201A |
|
|
PD70201EVB-U-25F-5EVAL BOARD FOR PD70201 |
3,851 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 5V | 5A | 17V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201 |
|
|
TEA1721BDB1065,598EVAL BOARD FOR TEA1721 |
2,914 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 2 Isolated Outputs | 5 W | -3.3V, -12V | 400mA, 400mA | 85 ~ 265 VAC | Flyback | 50kHz | Board(s) | TEA1721 |
|
|
ISL91212AEVAL1ZEVAL BOARD FOR ISL91212A |
2,018 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | - | - | - | Buck | - | Board(s) | ISL91212A |
|
|
ISL91212BEVAL1ZEVAL BOARD FOR ISL91212B |
4,350 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.8V. 1.8V, 1.8V, 1.8V | 5A, 5A, 5A, 5A | 2.5V ~ 5.5V | Buck | - | Board(s) | ISL91212B |
|
|
ISL91302B40-EVZEVAL BOARD FOR ISL91302B |
2,695 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.3V ~ 2V | 20A | 2.5V ~ 5.5V | Buck | - | Board(s) | ISL91302B |
