FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TW030Z120C,S1FG3 1200V SIC-MOSFET TO-247-4L 3 |
105 | - |
|
Datasheet | - | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 60A (Tc) | 18V | 41mOhm @ 30A, 18V | 5V @ 13mA | 82 nC @ 18 V | +25V, -10V | 2925 pF @ 800 V | - | 249W (Tc) | 175°C | - | - | Through Hole | TO-247-4L(X) |
|
|
TW015Z120C,S1FG3 1200V SIC-MOSFET TO-247-4L 1 |
68 | - |
|
Datasheet | - | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 100A (Tc) | 18V | 21mOhm @ 50A, 18V | 5V @ 11.7mA | 158 nC @ 18 V | +25V, -10V | 6000 pF @ 800 V | - | 431W (Tc) | 175°C | - | - | Through Hole | TO-247-4L(X) |
|
2SK1828TE85LFMOSFET N-CH 20V 50MA SC59 |
1,367 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 50mA (Ta) | 2.5V | 40Ohm @ 10mA, 2.5V | 1.5V @ 100µA | - | 10V | 5.5 pF @ 3 V | - | 200mW (Ta) | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
SSM3K56CT,L3FMOSFET N-CH 20V 800MA CST3 |
14,906 | - |
|
Datasheet | U-MOSVII-H | SC-101, SOT-883 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 800mA (Ta) | 1.5V, 4.5V | 235mOhm @ 800mA, 4.5V | 1V @ 1mA | 1 nC @ 4.5 V | ±8V | 55 pF @ 10 V | - | 500mW (Ta) | 150°C (TA) | - | - | Surface Mount | CST3 |
|
TK7R0E08QM,S1XUMOS10 TO-220AB 80V 7MOHM |
108 | - |
|
Datasheet | U-MOSX-H | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 64A (Tc) | 6V, 10V | 7mOhm @ 32A, 10V | 3.5V @ 500µA | 39 nC @ 10 V | ±20V | 2700 pF @ 40 V | - | 87W (Tc) | 175°C | - | - | Through Hole | TO-220 |
|

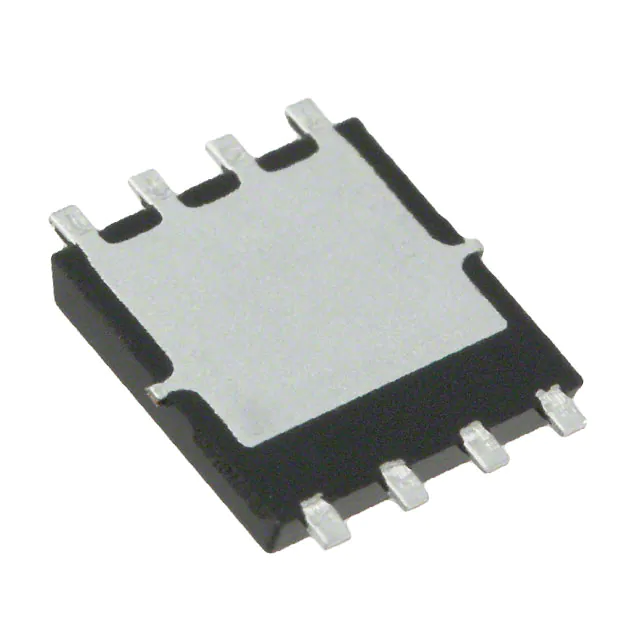

TPCA8026(TE12L,Q,MMOSFET N-CH 30V 45A 8SOP |
1,171 | - |
|
Datasheet | U-MOSIV | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 45A (Ta) | 4.5V, 10V | 2.2mOhm @ 23A, 10V | 2.5V @ 1mA | 113 nC @ 10 V | ±20V | 4200 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
.jpg "SSM6J501NU,LF")
|
SSM6J501NU,LFMOSFET P-CH 20V 10A 6UDFNB |
468 | - |
|
Datasheet | U-MOSVI | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 10A (Ta) | 1.5V, 4.5V | 15.3mOhm @ 4A, 4.5V | 1V @ 1mA | 29.9 nC @ 4.5 V | ±8V | 2600 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | 6-UDFNB (2x2) |
|
SSM3K341TU,LFMOSFET N-CH 60V 6A UFM |
244 | - |
|
Datasheet | U-MOSVIII-H | 3-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 6A (Ta) | 4V, 10V | 36mOhm @ 4A, 10V | 2.5V @ 100µA | 9.3 nC @ 10 V | ±20V | 550 pF @ 10 V | - | 1.8W (Ta) | 175°C | - | - | Surface Mount | UFM |
|
SSM3K341R,LFMOSFET N-CH 60V 6A SOT-23F |
57 | - |
|
Datasheet | U-MOSVIII-H | SOT-23-3 Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 6A (Ta) | 4V, 10V | 36mOhm @ 5A, 10V | 2.5V @ 100µA | 9.3 nC @ 10 V | ±20V | 550 pF @ 10 V | - | 1.2W (Ta) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SOT-23F |
|
TPHR9003NL1,LQUMOS9 SOP-ADV(N) PD=78W F=1MHZ |
52 | - |
|
Datasheet | U-MOSVIII-H | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 150A (Tc) | 4.5V, 10V | 0.9mOhm @ 50A, 10V | 2.3V @ 1mA | 74 nC @ 10 V | ±20V | 6900 pF @ 15 V | - | 800mW (Ta), 170W (Tc) | 150°C | - | - | Surface Mount | 8-SOP Advance (5x5.75) |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
