Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQUEW5380A3AJCAP FILM 38UF 5% 1.3KVDC RAD |
52 | - |
|
Datasheet | Radial - 4 Leads | 38 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 3.1 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C4AEHBW5400A3LJCAP FILM 40UF 5% 600VDC RADIAL |
58 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|

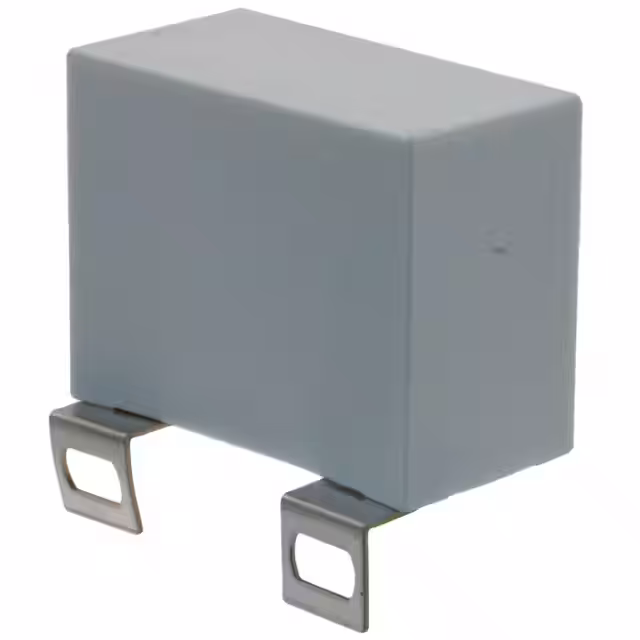

C4BSNBX4300ZAMJCAP FILM 3UF 5% 1KVDC SCREW |
48 | - |
|
Datasheet | Rectangular Box | 3 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.614" (41.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4AKOBW5240A3PKFILM, RADIAL, METALLIZED POLYPRO |
45 | - |
|
Datasheet | Radial - 4 Leads | 24 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 3.5 mOhms | -55°C ~ 135°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.929" (49.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C274ACF5300WA0JCAP FILM 30UF 5% 470VAC RADIAL |
7 | - |
|
Datasheet | Radial, Can | 30 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.819" (97.00mm) | Wire Leads | - | Motor Run | - | - |
|
C276CCF5400LG0JCAP FILM 40UF 5% 470VAC RADIAL |
75 | - |
|
Datasheet | Radial, Can | 40 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.839" (97.50mm) | Wire Leads | - | Motor Run | - | - |
|
|
C4AQLEW6110M3CKCAP FILM 110UF 10% 500VDC RADIAL |
51 | - |
|
Datasheet | Radial - 4 Leads | 110 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 1.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.496" W (42.00mm x 38.00mm) | 2.256" (57.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4ATDBW5600A30JCAP FILM 60UF 5% 250VDC RADIAL |
18 | - |
|
Datasheet | Radial - 4 Leads | 60 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4BSWBX4150ZANJCAP FILM 1.5UF 5% 2KVDC SCREW |
86 | - |
|
Datasheet | Rectangular Box | 1.5 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 3.5 Ohms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | Screw Terminals | 1.614" (41.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4AFAEW5150T3BKFILM, POWER, METALLIZED POLYPROP |
62 | - |
|
Datasheet | Radial - 4 Leads | 15 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
