Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQOBW5360M3MJCAP FILM 36UF 5% 900VDC RADIAL |
47 | - |
|
Datasheet | Radial - 4 Leads | 36 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 4.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQQBW5300M3NJCAP FILM 30UF 5% 1.1KVDC RADIAL |
33 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4ATFBW5300A3MJCAP FILM 30UF 5% 400VDC RADIAL |
45 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 1.7 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C284ACR5100AL0JCAP FILM 10UF 5% 470VAC RADIAL |
38 | - |
|
Datasheet | Radial, Can | 10 µF | ±5% | 470V | - | Polypropylene (PP) | - | -25°C ~ 85°C | Chassis Mount | 1.378" Dia (35.00mm) | 2.815" (71.50mm) | Wire Leads | - | Motor Run | - | - |
|

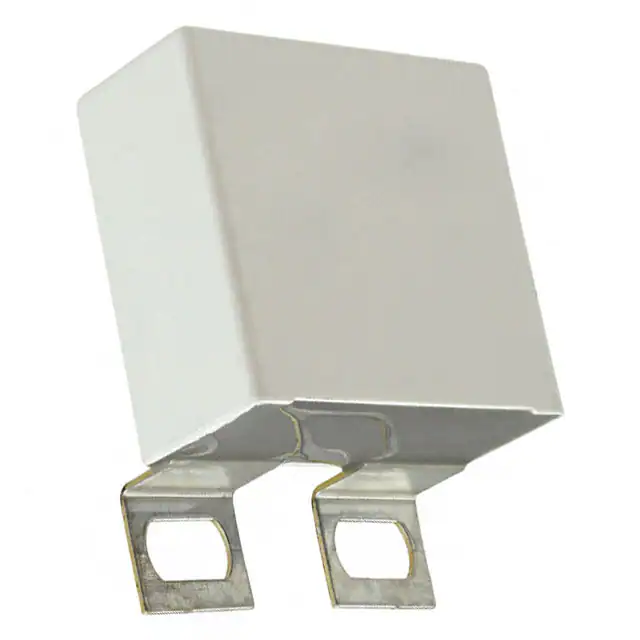

C4BSWBX3100ZAFJCAP FILM 0.1UF 5% 2KVDC SCREW |
53 | - |
|
Datasheet | Rectangular Box | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 23.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
C274AC35180SA0JCAP FILM 18UF 5% 470VAC RADIAL |
63 | - |
|
Datasheet | Radial, Can | 18 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 2.992" (76.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|

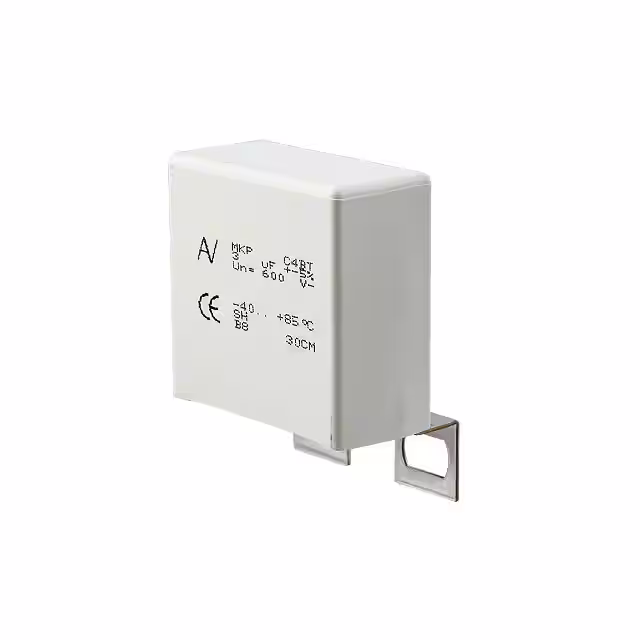

C4BTHBX4300ZAFJCAP FILM 3UF 5% 600VDC SCREW |
71 | - |
|
Datasheet | Rectangular Box | 3 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 4.8 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C274AC35300SA0JCAP FILM 30UF 5% 470VAC RADIAL |
37 | - |
|
Datasheet | Radial, Can | 30 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.799" (96.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|

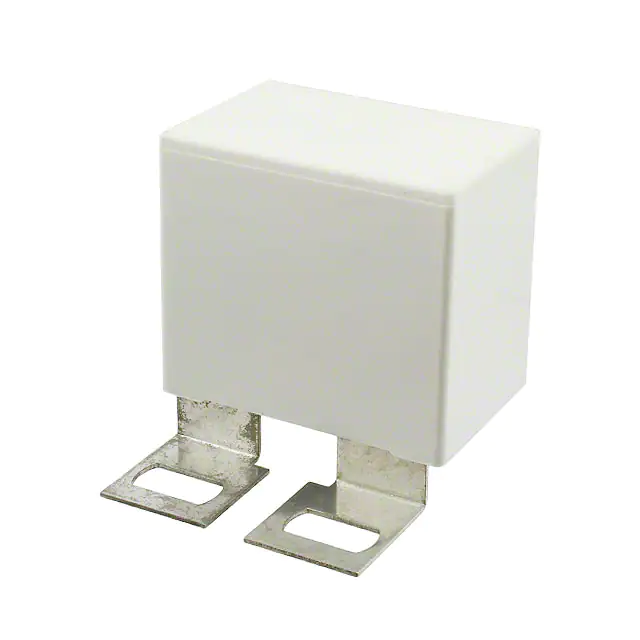

C4BSNBX4150ZBJJCAP FILM 1.5UF 5% 1KVDC SCREW |
48 | - |
|
Datasheet | Rectangular Box | 1.5 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|

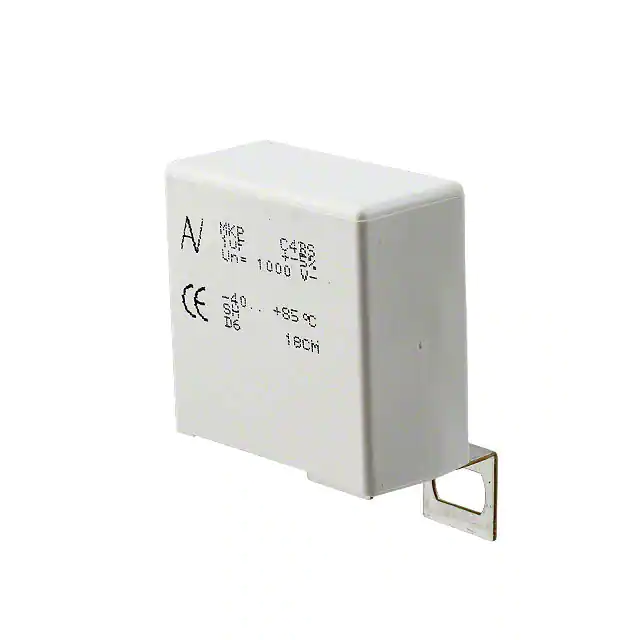

C4BSNBX4100ZAFJCAP FILM 1UF 5% 1KVDC SCREW |
78 | - |
|
Datasheet | Rectangular Box | 1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
