Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQGBW5700P3LKCAP FILM 70UF 10% 450VDC RADIAL |
30 | - |
|
Datasheet | Radial - 4 Leads | 70 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 2.3 mOhms | -55°C ~ 125°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
C4ATJBW5100A3MJCAP FILM 10UF 5% 700VDC RADIAL |
64 | - |
|
Datasheet | Radial - 4 Leads | 10 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|

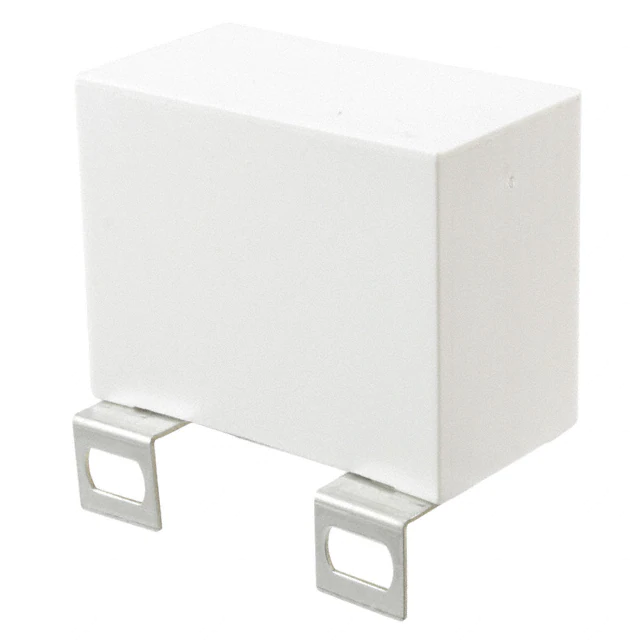

C4BSPBX4200ZAMJCAP FILM 2UF 5% 1.2KVDC SCREW |
84 | - |
|
Datasheet | Rectangular Box | 2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.614" (41.00mm) | DC Link, DC Filtering; Snubber | - | - |
|

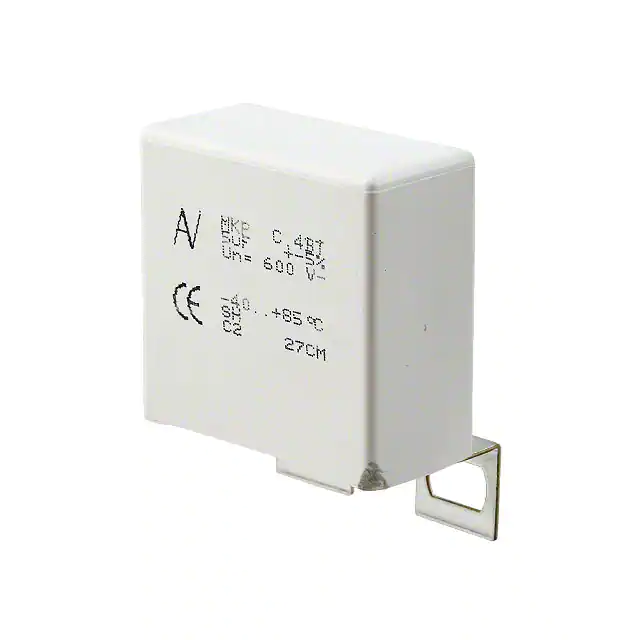

C4BTHBX4500ZAFJCAP FILM 5UF 5% 600VDC SCREW |
61 | - |
|
Datasheet | Rectangular Box | 5 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|

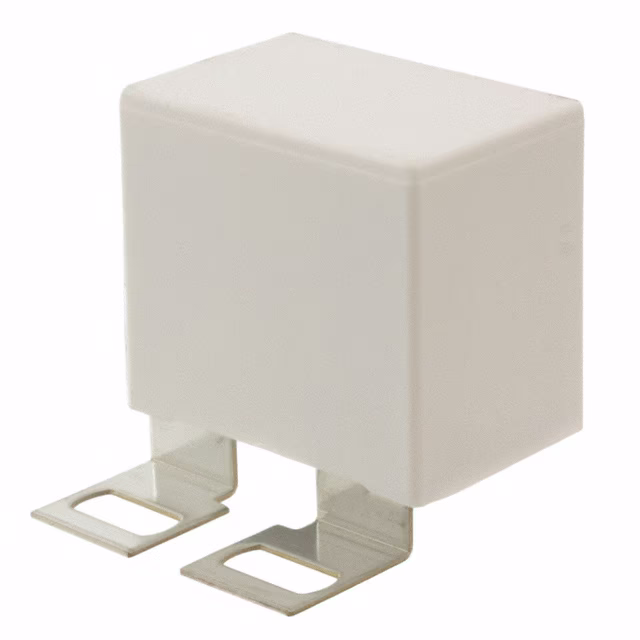

C4BSPBX4100ZBJJCAP FILM 1UF 5% 1.2KVDC SCREW |
32 | - |
|
Datasheet | Rectangular Box | 1 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
R76PW433050H3JCAP FILM 3.3UF 5% 630VDC RAD |
47 | - |
|
Datasheet | Radial | 3.3 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 1.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4ATJBU4220A3EJCAP FILM 2.2UF 5% 700VDC RADIAL |
21 | - |
|
Datasheet | Radial | 2.2 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
R75GW533050H0JCAP FILM 33UF 5% 160VDC RADIAL |
35 | - |
|
Datasheet | Radial | 33 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 1.4 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
C4AQIBW5550A3NJCAP FILM 55UF 5% 800VDC RADIAL |
9,902 | - |
|
Datasheet | Radial - 4 Leads | 55 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C4AF9EW5500F3BKFILM CAP AC, 1 UF, 10%, 310 VAC |
53 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | 310V | 620V | Polypropylene (PP), Metallized | 3.6 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
