Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP2020CZERR68M01FIXED IND 680NH 10.2A 8.96 MOHM |
3,366 | - |
|
Datasheet | IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 10.2 A | 13.5A | Shielded | 8.96mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
IHLP2525CZER2R2MA1IHLP-2525CZ-A1 2.2 20% ER E3 |
3,284 | - |
|
Datasheet | IHLP-2525CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | 38MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP1212BZERR68M11FIXED IND 680NH 5.5A 20.4MOHM SM |
3,078 | - |
|
Datasheet | IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 5.5 A | 5A | Shielded | 20.4mOhm Max | - | 105MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
|
SRP4020TA-R22YFIXED IND 220NH 11A 7.3 MOHM SMD |
2,896 | - |
|
Datasheet | SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 220 nH | ±30% | 11 A | 24A | Shielded | 7.3mOhm Max | 10 @ 100kHz | 270MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
SRP4020TA-5R6MFIXED IND 5.6UH 2.2A 125MOHM SMD |
2,749 | - |
|
Datasheet | SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 5.6 µH | ±20% | 2.2 A | 3A | Shielded | 125mOhm Max | 10 @ 100kHz | 25MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
SRP7030-1R0MFIXED IND 1UH 11A 0.01OHM SMD |
2,716 | - |
|
Datasheet | SRP7030 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1 µH | ±20% | 11 A | 15A | Shielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
SRR0906-472YLFIXED IND 4.7MH 100MA 19 OHM SMD |
2,152 | - |
|
Datasheet | SRR0906 | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±15% | 100 mA | 110mA | Shielded | 19Ohm Max | 100 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.374" W (10.00mm x 9.50mm) | 0.248" (6.30mm) |
|
SRR1210-560MFIXED IND 56UH 3.4A 90 MOHM SMD |
1,962 | - |
|
Datasheet | SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 3.4 A | 2.9A | Shielded | 90mOhm Max | 8 @ 2.52MHz | 4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
IHLP2020BZER2R2M51IHLP-2020BZ-51 2.2 20% ER E3 |
1,238 | - |
|
Datasheet | IHLP-2020BZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 5.1 A | 6.4A | Shielded | 47.6mOhm Max | - | 43.1MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
CDRH125/LDNP-220MCFIXED IND 22UH 3.28A 44 MOHM SMD |
1,084 | - |
|
Datasheet | CDRH125/LD | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.28 A | - | Shielded | 44mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
IHLP2525CZER100M8AFIXED IND 10UH 4A 76.9 MOHM SMD |
14,100 | - |
|
Datasheet | IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 4 A | 2.9A | Shielded | 76.9mOhm Max | - | 13.9MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
SPM7054VT-101M-DFIXED IND 100UH 1.8A 0.348OHM SM |
11,702 | - |
|
Datasheet | SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 100 µH | ±20% | 1.8 A | 2.4A | Shielded | 348mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|

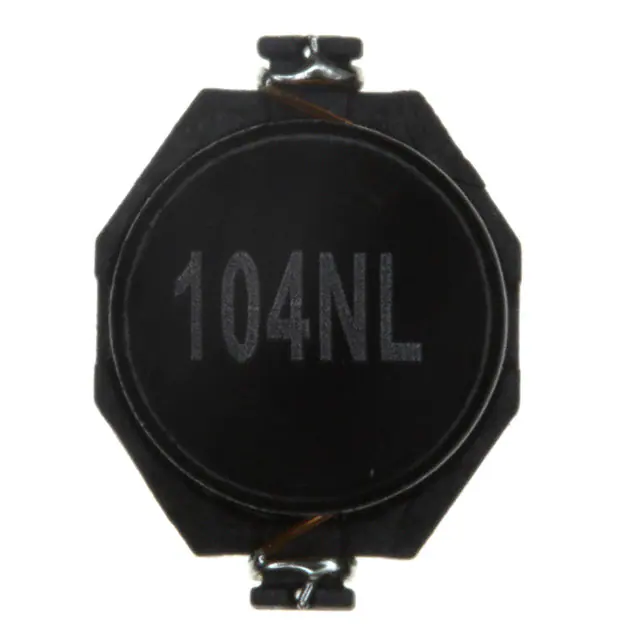

P0752.104NLTFIXED IND 100UH 1.2A 380MOHM SMD |
9,898 | - |
|
Datasheet | P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 1.2 A | 1.2A | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
IHLP1212BZERR36M11FIXED IND 360NH 6.3A 13.8MOHM SM |
6,360 | - |
|
Datasheet | IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 360 nH | ±20% | 6.3 A | 6.5A | Shielded | 13.8mOhm Max | - | 170MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
|
IHLP2525CZER150M5AFIXED IND 15UH 2.9A 127 MOHM SMD |
4,410 | - |
|
Datasheet | IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 2.9 A | 2.8A | Shielded | 127mOhm Max | - | 10.4MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZERR68M5AFIXED IND 680NH 16.5A 5.76 MOHM |
3,974 | - |
|
Datasheet | IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 16.5 A | 17A | Shielded | 5.76mOhm Max | - | 56.1MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
SPM5015T-6R8M-LRFIXED IND 6.8UH 2.8A 134.6 MOHM |
3,914 | - |
|
Datasheet | SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 2.8 A | 3.4A | Shielded | 134.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|
|
IHLP2525AHER4R7M01FIXED IND 4.7UH 3A 78 MOHM SMD |
3,421 | - |
|
Datasheet | IHLP-2525AH-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 3 A | 8A | Shielded | 78mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.071" (1.80mm) |
|

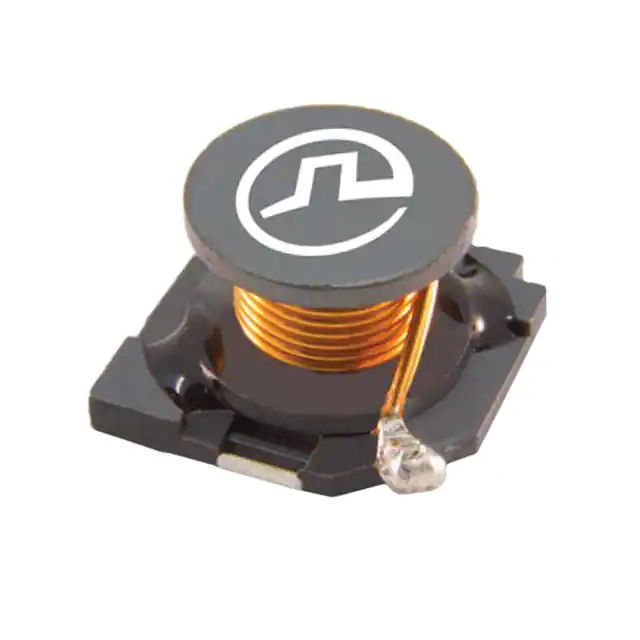

PA4310.104NLTFIXED IND 100UH 3.5A 310MOHM SMD |
2,042 | - |
|
Datasheet | PA4310.XXXNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 3.5 A | - | Unshielded | 310mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.315" (8.00mm) |
|
SPM5030VT-4R7M-DFIXED IND 4.7UH 3.8A 0.0591OHM |
1,542 | - |
|
Datasheet | SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 3.8 A | 5.9A | Shielded | 59.1mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 5030 | 0.209" L x 0.201" W (5.30mm x 5.10mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
