Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP7028A-5R6MFIXED IND 5.6UH 5A 48 MOHM SMD |
1,109 | - |
|
Datasheet | SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 5.6 µH | ±20% | 5 A | 9A | Shielded | 48mOhm Max | 20 @ 100kHz | 19MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP7028A-R47MFIXED IND 470NH 17.5A 4.2MOHM SM |
1,060 | - |
|
Datasheet | SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 470 nH | ±20% | 17.5 A | 26A | Shielded | 4.2mOhm Max | 10 @ 100kHz | 80MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
IHLP2525CZER4R7M5AFIXED IND 4.7UH 5.6A 38.4MOHM SM |
997 | - |
|
Datasheet | IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 5.6 A | 5.6A | Shielded | 38.4mOhm Max | - | 25.5MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP2020CZER4R7MA1IHLP-2020CZ-A1 4.7 20% ER E3 |
704 | - |
|
Datasheet | IHLP-2020CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 3.5 A | 8.2A | Shielded | 77.5mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|

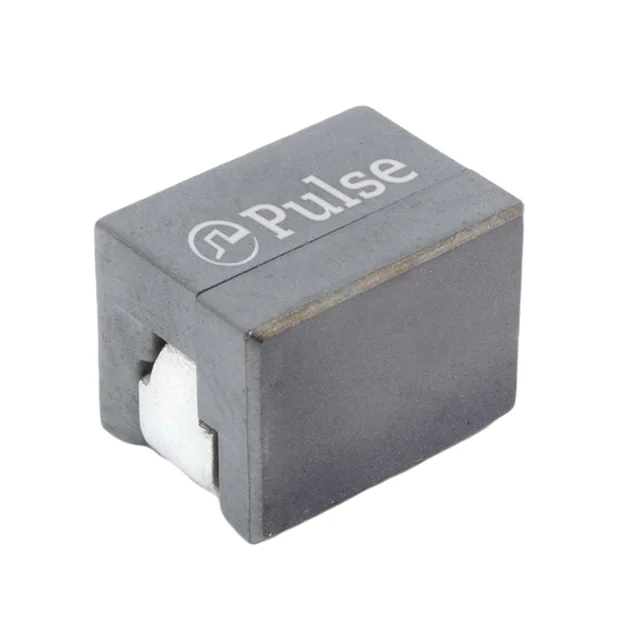

PA5187.101HLTFIXED IND 100NH 67A 0.12MOHM SMD |
680 | - |
|
Datasheet | PA5187 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 nH | ±10% | 67 A | 100A | Shielded | 0.12mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
SPM10040T-4R7MFIXED IND 4.7UH 7.9A 18 MOHM SMD |
423 | - |
|
Datasheet | SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 7.9 A | 8A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
PA4342.683ANLTFIXED IND 68UH 2.4A 210 MOHM SMD |
12,613 | - |
|
Datasheet | PA4342.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 68 µH | ±20% | 2.4 A | 3A | Shielded | 210mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
ETQ-P3M3R3YFPFIXED IND 3.3UH 5A 34.4 MOHM SMD |
2,896 | - |
|
Datasheet | PCC-M0530M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 5 A | 8.6A | Shielded | 34.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
|
SRP7028A-1R8MFIXED IND 1.8UH 8.5A 17 MOHM SMD |
2,336 | - |
|
Datasheet | SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.8 µH | ±20% | 8.5 A | 16A | Shielded | 17mOhm Max | 20 @ 100kHz | 36MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
IHLP2525BDER4R7M01FIXED IND 4.7UH 4.5A 63 MOHM SMD |
2,197 | - |
|
Datasheet | IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 4.5 A | 10A | Shielded | 63mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
|
SRP7028A-8R2MFIXED IND 8.2UH 4A 68 MOHM SMD |
1,985 | - |
|
Datasheet | SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 4 A | 7.5A | Shielded | 68mOhm Max | 20 @ 100kHz | 17MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
IHLP2020CZER4R7M1AIHLP-2020CZ-1A 4.7 20% ER E3 |
1,700 | - |
|
Datasheet | IHLP-2020CZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 4.5 A | 5.2A | Shielded | 60mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
PA4342.152ANLTFIXED IND 1.5UH 16A 4.2 MOHM SMD |
1,264 | - |
|
Datasheet | PA4342.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 16 A | 22A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRP7028A-R82MFIXED IND 820NH 13A 8 MOHM SMD |
997 | - |
|
Datasheet | SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 820 nH | ±20% | 13 A | 24A | Shielded | 8mOhm Max | 15 @ 100kHz | 61MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP7028A-330MFIXED IND 33UH 2A 240 MOHM SMD |
995 | - |
|
Datasheet | SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 33 µH | ±20% | 2 A | 2.5A | Shielded | 240mOhm Max | 20 @ 100kHz | 8MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
SRP7050TA-470MFIXED IND 47UH 1.9A 330 MOHM SMD |
50,729 | - |
|
Datasheet | SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 47 µH | ±20% | 1.9 A | 2.7A | Shielded | 330mOhm Max | 15 @ 100kHz | 8MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
SRP5015TA-2R2MFIXED IND 2.2UH 4A 52 MOHM SMD |
45,923 | - |
|
Datasheet | SRP5015TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 4 A | 6A | Shielded | 52mOhm Max | 10 @ 100kHz | 48MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.059" (1.50mm) |
|
|
SRP7050TA-100MFIXED IND 10UH 4A 69 MOHM SMD |
12,294 | - |
|
Datasheet | SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 4 A | 7.5A | Shielded | 69mOhm Max | 15 @ 100kHz | 15MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
SRP7050TA-1R8MFIXED IND 1.8UH 12A 11 MOHM SMD |
6,683 | - |
|
Datasheet | SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.8 µH | ±20% | 12 A | 15A | Shielded | 11mOhm Max | 15 @ 100kHz | 38MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
PA4342.332ANLTFIXED IND 3.3UH 10A 11.8MOHM SMD |
4,480 | - |
|
Datasheet | PA4342.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 10 A | 14A | Shielded | 11.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
