Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1260A-102KFIXED IND 1MH 680MA 1.7 OHM SMD |
28,445 | - |
|
Datasheet | SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 680 mA | 600mA | Shielded | 1.7Ohm Max | 30 @ 252kHz | 1.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SRP7028A-6R8MFIXED IND 6.8UH 4.5A 60 MOHM SMD |
20,088 | - |
|
Datasheet | SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | 20 @ 100kHz | 18MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP7028A-1R5MFIXED IND 1.5UH 9A 15 MOHM SMD |
9,419 | - |
|
Datasheet | SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | 20 @ 100kHz | 38MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP7028A-220MFIXED IND 22UH 2A 190 MOHM SMD |
7,963 | - |
|
Datasheet | SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 2 A | 3.5A | Shielded | 190mOhm Max | 20 @ 100kHz | 10MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
IHLP2525BDER100M01FIXED IND 10UH 2.5A 129 MOHM SMD |
7,595 | - |
|
Datasheet | IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.5 A | 7A | Shielded | 129mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
IHLP1212AEER1R0M11FIXED IND 1UH 3.9A 33 MOHM SMD |
4,999 | - |
|
Datasheet | IHLP-1212AE-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.9 A | 5.3A | Shielded | 33mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.047" (1.20mm) |
|
|
IHLP2525CZERR47M5AFIXED IND 470NH 20A 4.14MOHM SMD |
4,820 | - |
|
Datasheet | IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 20 A | 14A | Shielded | 4.14mOhm Max | - | 82.4MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP2020CZER2R2MA1IHLP-2020CZ-A1 2.2 20% ER E3 |
3,992 | - |
|
Datasheet | IHLP-2020CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 5.8 A | 10A | Shielded | 29.2mOhm Max | - | 39MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
SRR1260A-470MFIXED IND 47UH 2.6A 86 MOHM SMD |
3,936 | - |
|
Datasheet | SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.6 A | 2.5A | Shielded | 86mOhm Max | 22 @ 2.52MHz | 7.63MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
IHLP2020CZER2R2M11FIXED IND 2.2UH 6.75A 25MOHM SMD |
3,433 | - |
|
Datasheet | IHLP-2020CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 6.75 A | 5.5A | Shielded | 25mOhm Max | - | 41MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
IHLP2525BDER6R8M01FIXED IND 6.8UH 3.5A 95 MOHM SMD |
3,325 | - |
|
Datasheet | IHLP-2525BD-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 3.5 A | 9A | Shielded | 95mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.094" (2.40mm) |
|
|
SRP7028A-2R2MFIXED IND 2.2UH 8A 20 MOHM SMD |
2,932 | - |
|
Datasheet | SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | 20 @ 100kHz | 32MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZER1R0M5AFIXED IND 1UH 12A 8.45 MOHM SMD |
2,634 | - |
|
Datasheet | IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 12 A | 13A | Shielded | 8.45mOhm Max | - | 53.2MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
LTF3020T-3R3N-DFIXED IND 3.3UH 1.33A 110MOHM SM |
2,138 | - |
|
Datasheet | LTF3020-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.33 A | 990mA | Shielded | 110mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.079" (2.00mm) |
|
|
IHLP2525CZER6R8M5AFIXED IND 6.8UH 4.4A 57.6MOHM SM |
2,000 | - |
|
Datasheet | IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 4.4 A | 4.4A | Shielded | 57.6mOhm Max | - | 19.6MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525AHER1R5M01FIXED IND 1.5UH 4A 34 MOHM SMD |
1,954 | - |
|
Datasheet | IHLP-2525AH-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 4 A | 11.5A | Shielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.071" (1.80mm) |
|
B82462A4104K000FIXED IND 100UH 350MA 1.28OHM SM |
1,928 | - |
|
Datasheet | B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 350 mA | 570mA | Unshielded | 1.28Ohm Max | - | 9MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZER2R2M5AFIXED IND 2.2UH 8.1A 18.3MOHM SM |
1,901 | - |
|
Datasheet | IHLP-2525CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8.1 A | 10.8A | Shielded | 18.3mOhm Max | - | 31.2MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|

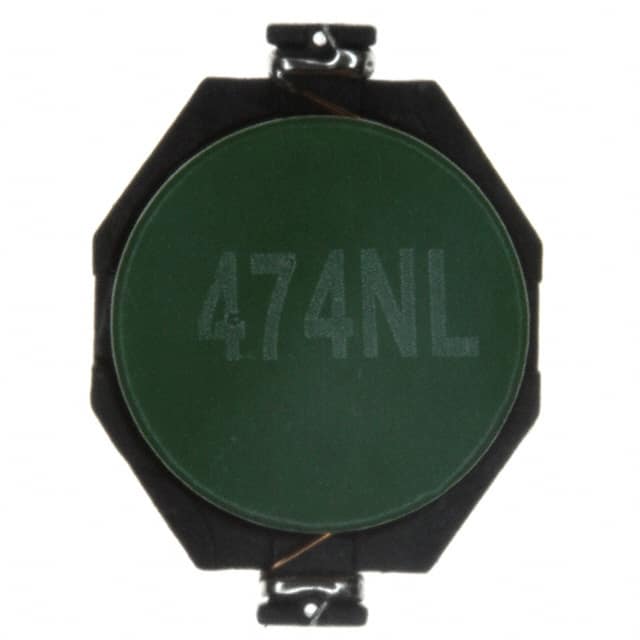

P0752.474NLTFIXED IND 470UH 500MA 1.46OHM SM |
1,614 | - |
|
Datasheet | P0752NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 500 mA | 500mA | Unshielded | 1.46Ohm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
|
SRR1260A-330MFIXED IND 33UH 3A 60 MOHM SMD |
1,495 | - |
|
Datasheet | SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3 A | 2.8A | Shielded | 60mOhm Max | 27 @ 2.52MHz | 9.97MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
