Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82462A4224K000FIXED IND 220UH 240MA 2.72OHM SM |
4,038 | - |
|
Datasheet | B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 240 mA | 400mA | Unshielded | 2.72Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
IHLP2020CZERR47M11FIXED IND 470NH 14A 6 MOHM SMD |
3,694 | - |
|
Datasheet | IHLP-2020CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 14 A | 9A | Shielded | 6mOhm Max | - | 83MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|

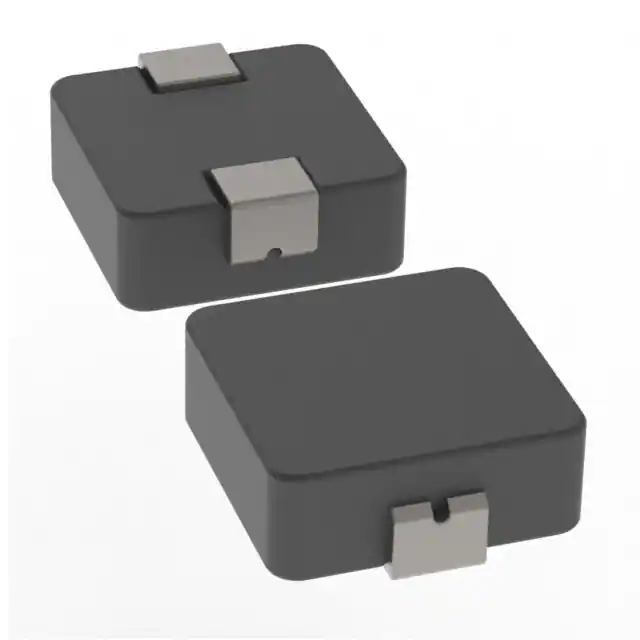

PA4342.223ANLTFIXED IND 22UH 4.1A 66 MOHM SMD |
3,569 | - |
|
Datasheet | PA4342.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 4.1 A | 5.5A | Shielded | 66mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
SRP7050TA-1R0MFIXED IND 1UH 15A 6.5 MOHM SMD |
3,493 | - |
|
Datasheet | SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1 µH | ±20% | 15 A | 20A | Shielded | 6.5mOhm Max | 10 @ 100kHz | 50MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
NS12565T330MNFIXED IND 33UH 3.22A 46.8MOHM SM |
2,926 | - |
|
Datasheet | NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.22 A | 3.89A | Shielded | 46.8mOhm Max | - | 9.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
IHLP2525CZER4R7M8AFIXED IND 4.7UH 5.6A 38.4MOHM SM |
2,889 | - |
|
Datasheet | IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 5.6 A | 5.6A | Shielded | 38.4mOhm Max | - | 25.5MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
SRP7050TA-680MFIXED IND 68UH 1.2A 445 MOHM SMD |
2,677 | - |
|
Datasheet | SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 68 µH | ±20% | 1.2 A | 2A | Shielded | 445mOhm Max | 15 @ 100kHz | 6MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
5300-13-RCFIXED IND 10UH 1.5A 95 MOHM TH |
2,643 | - |
|
Datasheet | 5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 1.5 A | 970mA | Unshielded | 95mOhm Max | - | 25MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
SRP7050TA-8R2MFIXED IND 8.2UH 5A 63 MOHM SMD |
2,622 | - |
|
Datasheet | SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 5 A | 8A | Shielded | 63mOhm Max | 15 @ 100kHz | 16MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
SRP7050TA-3R3MFIXED IND 3.3UH 8A 20.9 MOHM SMD |
1,981 | - |
|
Datasheet | SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 8 A | 12A | Shielded | 20.9mOhm Max | 15 @ 100kHz | 26MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
SRP5015TA-100MFIXED IND 10UH 2A 235 MOHM SMD |
1,949 | - |
|
Datasheet | SRP5015TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 2 A | 2.3A | Shielded | 235mOhm Max | 10 @ 100kHz | 21MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.059" (1.50mm) |
|
SLF10145T-680M1R2-HFIXED IND 68UH 1.3A 168 MOHM SMD |
1,850 | - |
|
Datasheet | SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.3 A | 1.2A | Shielded | 168mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
SRP7050TA-2R2MFIXED IND 2.2UH 10A 12 MOHM SMD |
1,695 | - |
|
Datasheet | SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 10 A | 14A | Shielded | 12mOhm Max | 15 @ 100kHz | 30MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
SRP7050TA-R68MFIXED IND 680NH 18A 4.5 MOHM SMD |
1,377 | - |
|
Datasheet | SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 680 nH | ±20% | 18 A | 24A | Shielded | 4.5mOhm Max | 10 @ 100kHz | 75MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
IHLP2525AHER1R0M01FIXED IND 1UH 7A 18.3 MOHM SMD |
1,163 | - |
|
Datasheet | IHLP-2525AH-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 7 A | 14A | Shielded | 18.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.071" (1.80mm) |
|
|
SRP5015TA-R15YFIXED IND 150NH 16A 4.1 MOHM SMD |
1,002 | - |
|
Datasheet | SRP5015TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 150 nH | ±30% | 16 A | 25A | Shielded | 4.1mOhm Max | 5 @ 100kHz | 220MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.059" (1.50mm) |
|
|
SRP7050TA-4R7MFIXED IND 4.7UH 6.5A 30.8MOHM SM |
964 | - |
|
Datasheet | SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 6.5 A | 10A | Shielded | 30.8mOhm Max | 15 @ 100kHz | 22MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
SRP5015TA-4R7MFIXED IND 4.7UH 2.7A 118MOHM SMD |
139 | - |
|
Datasheet | SRP5015TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 2.7 A | 4A | Shielded | 118mOhm Max | 10 @ 100kHz | 29MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.059" (1.50mm) |
|
CDR7D28MNNP-100NCFIXED IND 10UH 2.5A 53.8MOHM SMD |
23,406 | - |
|
Datasheet | CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 2.5 A | 2.4A | Shielded | 53.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
|
|
CDR7D28MNNP-6R8NCFIXED IND 6.8UH 2.75A 46.3 MOHM |
22,587 | - |
|
Datasheet | CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±25% | 2.75 A | 2.9A | Shielded | 46.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
