Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404084121FIXED IND 120UH 1.15A 347MOHM SM |
1,397 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±20% | 1.15 A | 1.45A | Shielded | 347mOhm | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8040 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
IHLP2525CZER150M8AFIXED IND 15UH 2.9A 127 MOHM SMD |
1,374 | - |
|
Datasheet | IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 2.9 A | 2.8A | Shielded | 127mOhm Max | - | 11MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
9230-20-RCFIXED IND 1UH 350MA 1 OHM TH |
1,175 | - |
|
Datasheet | 9230 | Axial | Bulk | Active | Molded | Phenolic | 1 µH | ±10% | 350 mA | - | Unshielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
SPM10040T-100MFIXED IND 10UH 5.8A 29.4MOHM SMD |
938 | - |
|
Datasheet | SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 5.8 A | 6A | Shielded | 29.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
B82477G4105M000FIXED IND 1MH 550MA 1.68 OHM SMD |
792 | - |
|
Datasheet | B82477G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 550 mA | 650mA | Shielded | 1.68Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.315" (8.00mm) |
|
SRP7050TA-220MFIXED IND 22UH 2.5A 170 MOHM SMD |
697 | - |
|
Datasheet | SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 2.5 A | 5.5A | Shielded | 170mOhm Max | 15 @ 100kHz | 9MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
B82477G4472M000FIXED IND 4.7UH 6.8A 14 MOHM SMD |
685 | - |
|
Datasheet | B82477G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 6.8 A | 8.6A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.315" (8.00mm) |
|
|
B82477G4154M000FIXED IND 150UH 1.42A 225MOHM SM |
654 | - |
|
Datasheet | B82477G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.42 A | 1.7A | Shielded | 225mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|
VCMT063T-2R2MN5TFIXED IND 2.2UH 9A 16.5MOHM SMD |
654 | - |
|
Datasheet | VCMT063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 9 A | 8A | Unshielded | 16.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRP7050TA-1R5MFIXED IND 1.5UH 12A 9 MOHM SMD |
371 | - |
|
Datasheet | SRP7050TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 1.5 µH | ±20% | 12 A | 16.5A | Shielded | 9mOhm Max | 15 @ 100kHz | 43MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
ECS-MPI4040R4-4R7-RFIXED IND 4.7UH 2.9A 67 MOHM SMD |
15,105 | - |
|
Datasheet | ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.9 A | 3.9A | Shielded | 67mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
SRR6603-103MLFIXED IND 10MH 20MA 32.8 OHM SMD |
6,727 | - |
|
Datasheet | SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±20% | 20 mA | 17mA | Shielded | 32.8Ohm Max | 50 @ 100kHz | 800kHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|
|
SRR6603-100MLFIXED IND 10UH 1A 75 MOHM SMD |
6,525 | - |
|
Datasheet | SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | 370mA | Shielded | 75mOhm Max | 40 @ 200kHz | 38MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
|

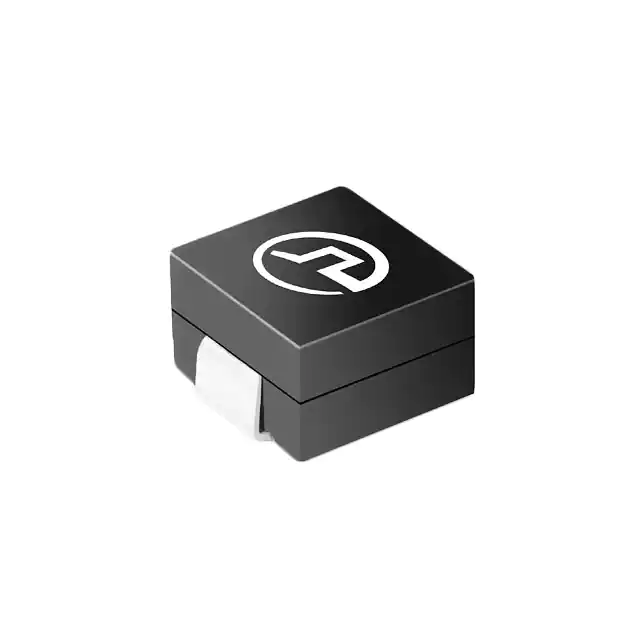

PA3784.151HLTFIXED IND 150NH 67A 0.18MOHM SMD |
4,684 | - |
|
Datasheet | PA3784.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±10% | 67 A | 83A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.315" (8.00mm) |
|
ETQ-P4M100YFNFIXED IND 10UH 4.5A 59.6MOHM SMD |
2,934 | - |
|
Datasheet | PCC-M0645M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 4.5 A | 8.3A | Shielded | 59.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.236" W (6.50mm x 6.00mm) | 0.177" (4.50mm) |
|
SPM7054VT-4R7M-DFIXED IND 4.7UH 7.8A 0.0166OHM |
2,705 | - |
|
Datasheet | SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 7.8 A | 11.2A | Shielded | 16.6mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
ETQ-P5M220YFMFIXED IND 22UH 3.7A 102MOHM SMD |
2,280 | - |
|
Datasheet | PCC-M0754M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 3.7 A | 5.8A | Shielded | 102mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
|
ETQ-P5M680YFMFIXED IND 66UH 2.3A 276.1MOHM SM |
2,239 | - |
|
Datasheet | PCC-M0754M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 66 µH | ±20% | 2.3 A | 3.9A | Shielded | 276.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
|
ETQ-P5M4R7YFMFIXED IND 4.7UH 8A 23 MOHM SMD |
1,774 | - |
|
Datasheet | PCC-M0754M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 8 A | 13.1A | Shielded | 23mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
|
SRR6603-470MLFIXED IND 47UH 500MA 230MOHM SMD |
1,604 | - |
|
Datasheet | SRR6603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 500 mA | 240mA | Shielded | 230mOhm Max | 40 @ 100kHz | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.173" W (6.60mm x 4.40mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
