PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

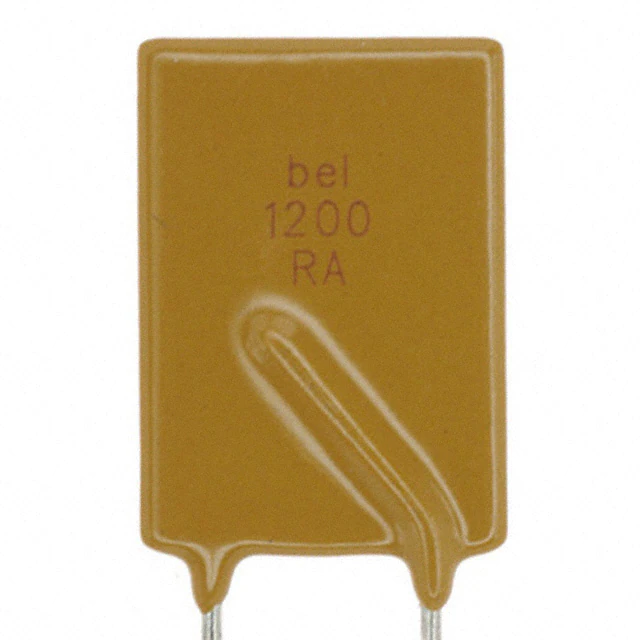

0ZRA1200FF1APTC RESET FUSE 16V 12A RADIAL |
5,590 | - |
|
Datasheet | Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 12 A | 20.4 A | 100 A | 16 s | 2 mOhms | 9 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.142" W (17.50mm x 3.60mm) | 1.102" (28.00mm) | - | 0.402" (10.20mm) |
|

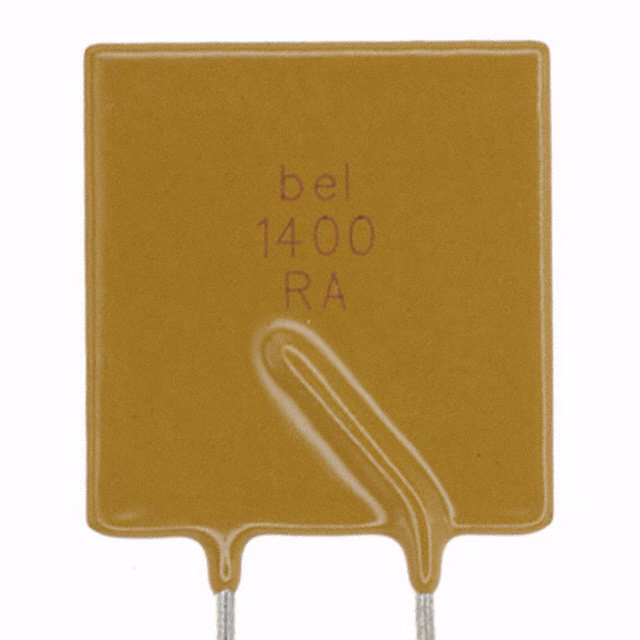

0ZRA1400FF1APTC RESET FUSE 16V 14A RADIAL |
2,871 | - |
|
Datasheet | Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 14 A | 23.8 A | 100 A | 20 s | 2 mOhms | 8 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 1.098" L x 0.142" W (27.90mm x 3.60mm) | 1.098" (27.90mm) | - | 0.402" (10.20mm) |
|
0ZRN0550FF1EPTC RESET FUSE 16V 5.5A RADIAL |
4,505 | - |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 5.5 A | 10 A | 100 A | 6 s | 15 mOhms | 37 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|

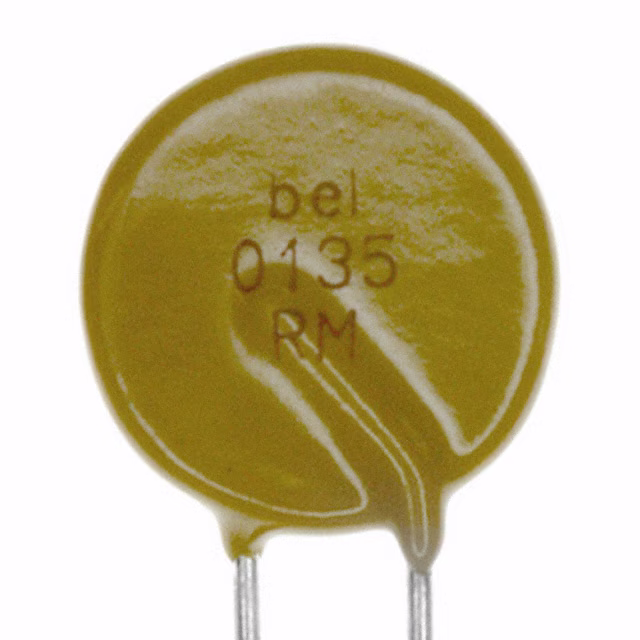

0ZRM0135FF1APTC RESET FUSE 120V 1.35A RADIAL |
9,358 | - |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1.35 A | 2.7 A | 10 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.610" Dia x 0.161" T (15.50mm x 4.10mm) | 0.811" (20.60mm) | - | 0.201" (5.10mm) |
|
0ZRN0400FF2DPTC RESET FUSE 16V 4A RADIAL |
7,275 | - |
|
Datasheet | Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 16V | 4 A | 7 A | 100 A | 5 s | 24 mOhms | 60 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|
0ZRP0400FF2APTC RESET FUSE 60V 4A RADIAL |
6,304 | - |
|
Datasheet | Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 4 A | 8 A | 40 A | 24 s | 14 mOhms | 60 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.827" L x 0.118" W (21.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
0ZCE0100FF2EPTC RESET FUSE 6V 1A 0805 |
7,692 | - |
|
Datasheet | 0805 (2012 Metric), Concave | 0ZCE | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1 A | 1.95 A | 40 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.071" (1.80mm) | - |
|
0ZRS0200FF2BPTC RESET FUSE 32V 2A RADIAL |
2,665 | - |
|
Datasheet | Radial, Disc | 0ZRS | Tape & Reel (TR) | Active | Ceramic | 32V | 2 A | 4 A | 100 A | 5.5 s | 65 mOhms | 250 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.374" L x 0.118" W (9.50mm x 3.00mm) | 0.531" (13.50mm) | - | 0.201" (5.10mm) |
|
0ZRN0450FF2BPTC RESET FUSE 16V 4.5A RADIAL |
6,111 | - |
|
Datasheet | Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 16V | 4.5 A | 7.8 A | 100 A | 3 s | 22 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.201" (5.10mm) |
|
0ZRE0075FF2CFUSE RESETTABLE TH |
8,433 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
